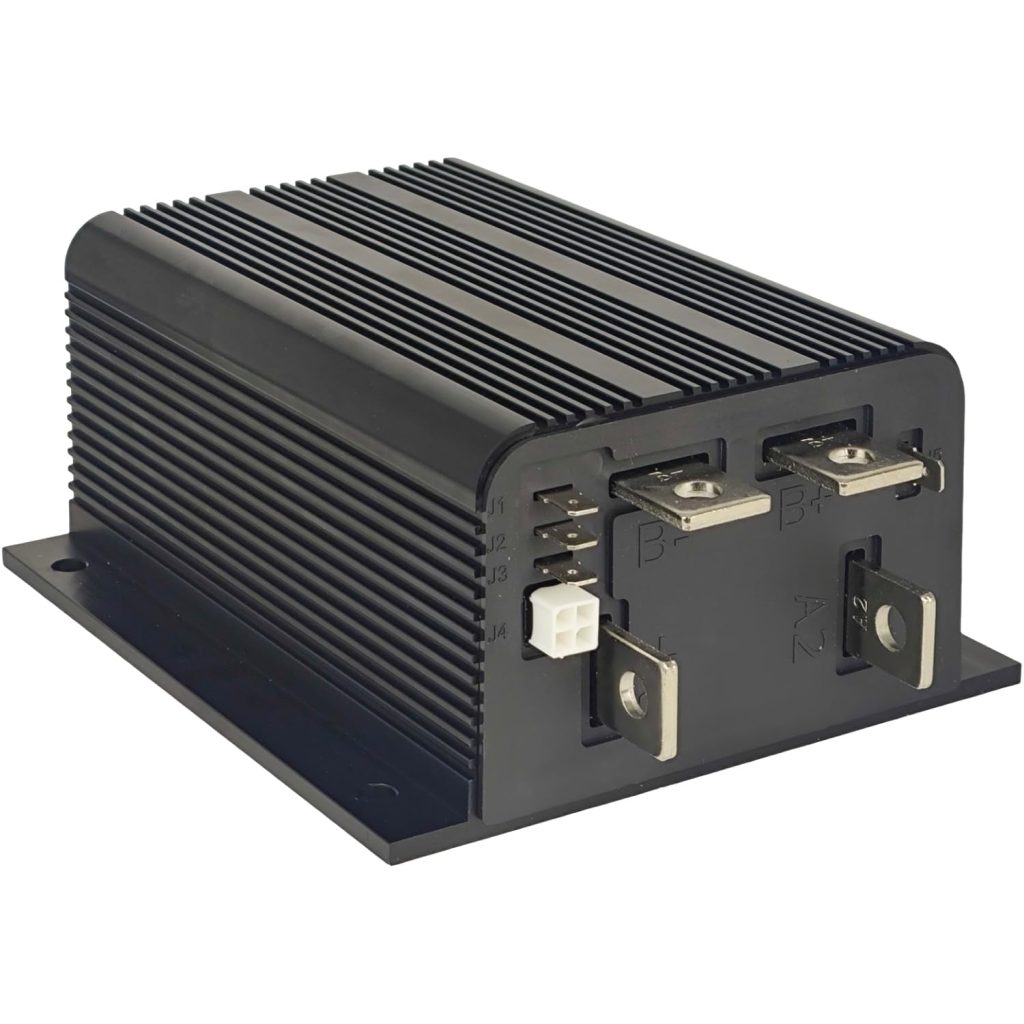

Introduction to the 1204-036 36V 275A DC Motor Controller
The 1204-036 36V 275A DC Motor Controller is a programmable electronic speed control solution designed for industrial electric vehicles that demand reliability, smooth operation, and precise motor management. Commonly used as a Curtis-compatible upgrade, this controller delivers controlled acceleration, efficient torque output, and silent operation across a wide range of applications.
Manufactured as an aftermarket replacement, the EZROAD Programmable 1204-036 electronic motor speed controller functions like the original while offering cost savings and compatibility with many existing vehicle systems. It is pre-configured for 36V, 275A, 0–5K throttle input, making it ready for immediate installation in supported vehicles.
This in-depth guide explains specifications, compatibility, features, benefits, installation considerations, programming options, and real-world use cases, while also providing accurate product data tables based on commonly listed Amazon product information.
What Is the 1204-036 DC Motor Controller?
The 1204-036 DC motor controller is an electronic drive speed control unit used to regulate the speed and torque of DC motors in industrial electric vehicles. These include forklifts, floor sweepers, personnel carriers, electric carts, and utility vehicles.
It replaces or upgrades older Curtis PMC controllers while maintaining similar operational logic and connector layouts. The controller interprets throttle input signals and adjusts current flow to the motor, ensuring efficient and responsive motor behavior.
Core Specifications Overview
The following table summarizes the core technical specifications of the 1204-036 36V 275A programmable DC motor controller.
Technical Specifications Table
| Specification | Details |
|---|---|
| Model Numbers | 1204-036, P1204-036 |
| Voltage Rating | 36V DC |
| Current Rating | 275 Amps |
| Throttle Input | 0–5K ohms |
| Controller Type | Programmable DC motor controller |
| Configuration | Pre-configured for 36V, 275A, 0–5K |
| Programming Method | Handheld programmer (required for reconfiguration) |
| Noise Level | Smooth and silent operation |
| Application Type | Industrial electric vehicles |
| Manufacturer Type | Aftermarket (Curtis compatible) |
| Brand | EZROAD |
Compatibility and Cross Reference Numbers
One of the major strengths of the 1204-036 motor controller is its wide compatibility range. It replaces numerous OEM and aftermarket part numbers, making it a versatile choice for maintenance and upgrades.
Cross Reference Compatibility Table
| Equivalent Part Numbers |
|---|
| CL7007631 |
| CT1204-036 |
| CT14378036 |
| GN66047 |
| HU3142264 |
| MBN66047 |
| PHA000026033 |
| YP150022651 |
| YP1500226-51 |
| 7007631 |
| 14378036 |
| 66047 |
| 3142264 |
| N66047 |
| A000026033 |
| 150022651 |
| 1500226-51 |
This extensive cross-reference list allows technicians and fleet managers to replace multiple legacy controllers with a single modern solution.
Key Features of the 1204-036 Programmable Motor Controller
Programmable Performance Control
The programmable DC motor controller supports parameter adjustments using a compatible handheld programmer. While it ships pre-configured for 36V 275A 0–5K, users can reprogram it for other compatible vehicle configurations.
Smooth and Silent Operation
Advanced PWM control ensures gradual acceleration and deceleration, reducing mechanical stress and providing operator comfort. This makes it ideal for indoor and noise-sensitive environments.
Cost-Effective Curtis Upgrade
As an aftermarket unit, the controller offers similar functionality to original Curtis PMC controllers at a more accessible price point, without sacrificing performance.
Industrial-Grade Reliability
Designed for daily industrial use, the controller withstands high current loads, vibration, and frequent start-stop cycles common in electric vehicles.
Wide Vehicle Compatibility
Used across many industrial electric vehicle platforms, including material handling equipment and transport carts.
Applications in Industrial Electric Vehicles
The 1204-036 36V DC motor controller is widely deployed in the following applications:
- Electric forklifts
- Floor scrubbers and sweepers
- Electric personnel carriers
- Utility and maintenance vehicles
- Warehouse transport carts
- Industrial golf and shuttle carts
Its stable current output and programmable nature make it suitable for both light-duty and moderate heavy-duty vehicles.
Understanding the 0–5K Throttle Input
The 0–5K throttle input refers to a resistive throttle system commonly used in industrial vehicles. The controller reads resistance changes to determine speed demand.
Benefits of 0–5K Throttle Systems
- Simple and robust design
- Easy to diagnose and replace
- Compatible with many legacy vehicle systems
- Smooth proportional speed control
The pre-configured throttle compatibility eliminates the need for immediate programming during standard replacements.
Installation Considerations
Installing the 1204-036 motor controller requires basic electrical knowledge and adherence to safety procedures.
Installation Checklist
- Verify vehicle voltage is 36V
- Confirm motor current requirements do not exceed 275A
- Inspect wiring harness and connectors
- Ensure correct throttle resistance range
- Secure controller in a ventilated location
Important Note on Programming
This unit is pre-configured for the stated specifications. Any adaptation for different voltage, current limits, or throttle types requires a handheld programmer.
Programming and Customization
While many users operate the controller in its default configuration, advanced applications benefit from programming.
Adjustable Parameters Include
- Acceleration rate
- Maximum speed
- Current limit
- Torque response
- Regenerative braking behavior (if supported by vehicle)
Programming allows fine-tuning for operator comfort, battery life optimization, and motor protection.
Advantages Over Non-Programmable Controllers
| Feature | 1204-036 Programmable Controller |
|---|---|
| Speed Customization | Yes |
| Current Limiting | Adjustable |
| Vehicle Adaptability | High |
| Smooth Acceleration | Optimized |
| Long-Term Flexibility | Excellent |
This comparison highlights why programmable controllers are preferred for professional fleet management.
Aftermarket Quality and Reliability
The EZROAD 1204-036 is an aftermarket product, not an original OEM Curtis unit. However, it is engineered to be compatible with the original design and performance expectations.
What Aftermarket Means for Buyers
- Compatible fit and function
- Reduced replacement costs
- Broad availability
- Suitable for refurbishment projects
It is a practical choice for maintaining older vehicles without excessive OEM expense.
Maintenance and Longevity
To ensure long service life from the 36V 275A DC motor controller, regular inspection is recommended.
Maintenance Tips
- Keep terminals clean and corrosion-free
- Avoid water ingress
- Ensure adequate cooling airflow
- Check wiring integrity during routine service
With proper care, the controller can operate reliably for years in demanding environments.
Why the 1204-036 Is a Popular Curtis Upgrade
The popularity of the 1204-036 Curtis-compatible motor controller comes from its balance of performance, price, and adaptability. It allows aging fleets to remain operational without extensive rewiring or redesign.
Fleet operators appreciate:
- Reduced downtime
- Straightforward replacement
- Consistent motor behavior
- Easy sourcing
Buying Considerations
Before purchasing, confirm:
- Vehicle voltage compatibility
- Motor current requirements
- Throttle type (0–5K)
- Need for reprogramming
Understanding these factors ensures the controller meets operational needs without modification delays.
Final Thoughts
The 1204-036 36V 275A DC Motor Controller stands out as a dependable, programmable, and cost-effective solution for industrial electric vehicles. Its pre-configured setup, broad compatibility, and Curtis upgrade capability make it a practical choice for both maintenance professionals and fleet managers.
With smooth performance, silent operation, and the flexibility of programmable control, this aftermarket controller continues to be a trusted option for extending the life and performance of electric vehicles across warehouses, factories, and industrial facilities.
