Introduction

DC motor speed controllers remain essential components in industrial equipment, workshop machinery, laboratory devices, and automation systems. Unlike modern digital motor drives, SCR-based DC motor controllers are valued for their simplicity, reliability, and ability to handle high current loads with stable torque control. These controllers are widely used in lathes, conveyors, winders, fans, mixers, and other equipment requiring adjustable motor speed under load.

The Copper Volt Adjust 115/230VAC Output 90V/180VDC SCR DC Motor Speed Controller is designed to provide smooth and reliable speed regulation for brushed DC motors rated at 1/2 horsepower and 1 horsepower. Built with copper materials and anti-interference circuitry, this controller emphasizes durability, electrical stability, and consistent performance.

This 180V DC motor controller review provides a complete, easy-to-understand explanation of the product’s specifications, construction quality, operating principles, performance characteristics, applications, advantages, and limitations. The article is written to help buyers make informed decisions while remaining technically accurate and accessible.

Product Overview

This SCR DC motor speed controller converts AC input voltage into a controlled DC output voltage suitable for brushed DC motors. It supports 115VAC or 230VAC input, with a maximum DC output of 180VDC, making it compatible with many industrial DC motors.

Manufactured by DAVITU under a Generic brand label, the controller uses copper-based components to enhance electrical conductivity and reduce heat loss. Its compact size allows it to be installed in control cabinets, enclosures, or machine housings where space is limited.

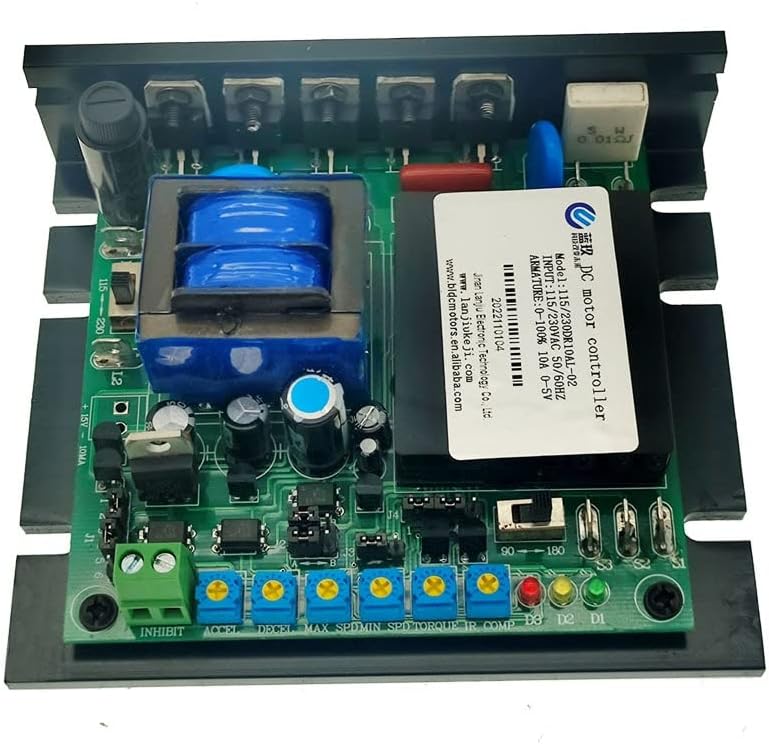

The model is identified as 115/230DR10AL-02, a designation commonly associated with SCR-based DC motor control boards designed for reliable analog speed adjustment.

Key Features and Functional Highlights

Wide AC Input Compatibility

This DC motor controller supports 115VAC and 230VAC input, allowing it to be used in different electrical environments. This flexibility is especially useful in workshops and industrial facilities where voltage standards vary.

Adjustable DC Output Voltage

The controller delivers 90VDC or 180VDC output, depending on the motor configuration and input voltage. Speed control is achieved by adjusting the output voltage using an onboard potentiometer or external control, allowing precise motor speed regulation.

SCR Control Technology

SCR (Silicon Controlled Rectifier) technology is known for its robustness and ability to handle high current loads. In this controller, SCRs regulate the DC output voltage efficiently, providing:

• Stable torque across speed ranges
• Reliable performance under load
• Long service life with minimal maintenance

Copper Construction for Enhanced Reliability

Copper is used extensively in the controller’s conductive pathways. Copper offers lower resistance than many alternative materials, which improves efficiency, reduces heat buildup, and enhances overall durability.

Anti-Interference Design

The controller includes anti-interference circuitry that minimizes electrical noise. This is particularly important in environments with other high-power equipment, where electromagnetic interference could affect motor performance or nearby electronics.

Technical Specifications Table

Design and Build Quality

Compact and Practical Form Factor

With a folded size of 4.57 x 4.02 x 1.89 inches, this controller is compact enough for space-constrained installations. It can be easily integrated into custom enclosures or mounted within existing control panels.

Durable Component Layout

The internal layout is designed for efficient heat dissipation and stable electrical performance. Copper traces and components help ensure consistent operation during extended use, especially when driving motors near their rated capacity.

Industrial-Grade Construction

Although labeled as a generic brand, the controller reflects industrial-grade design principles. It is intended for practical use rather than aesthetic appeal, prioritizing functionality and reliability.

How SCR DC Motor Speed Control Works

Understanding how this controller operates helps users apply it correctly.

AC to DC Conversion

The incoming AC voltage is rectified into DC voltage using rectifier circuits. SCRs then regulate the amount of voltage delivered to the motor by controlling the conduction angle of the AC waveform.

Voltage-Based Speed Control

In brushed DC motors, speed is directly proportional to applied voltage. By adjusting the output voltage, the controller increases or decreases motor speed while maintaining torque.

Load Handling

SCR controllers are particularly effective at maintaining torque under load. This makes them ideal for applications where the motor experiences varying resistance, such as cutting, mixing, or conveying operations.

Performance Evaluation

Speed Stability

The controller provides stable speed regulation across a wide operating range. When properly matched with a motor rated at 90VDC or 180VDC, speed changes are smooth and predictable.

Torque Delivery

One of the strengths of this SCR DC motor speed controller is its ability to deliver strong torque even at lower speeds. This is essential for machines that must start under load.

Thermal Performance

Copper construction and efficient layout help manage heat during operation. When installed in a ventilated enclosure, the controller can operate continuously without excessive temperature rise.

Noise and Interference Control

The built-in anti-interference design reduces electrical noise that could affect nearby equipment. This is particularly valuable in mixed-control environments where PLCs, sensors, or communication devices are present.

Reduced interference also contributes to smoother motor operation and fewer erratic speed fluctuations.

Installation Considerations

Electrical Safety

Proper grounding and correct wiring are essential. Input voltage must match the controller’s configuration, and output connections must be made according to motor specifications.

Cooling and Ventilation

While the controller is compact, adequate airflow is recommended. Installing the unit in a ventilated enclosure helps ensure long-term reliability.

Motor Compatibility

This controller is designed specifically for brushed DC motors. It is not suitable for AC motors or brushless DC motors.

Applications

The 115/230VAC to 180VDC DC motor controller is suitable for a wide range of applications:

• DC lathes and milling machines
• Conveyors and material handling systems
• Winders and unwinders
• Mixers and agitators
• Fans and blowers
• Small industrial machines
• Educational and laboratory equipment

Its ability to handle 1/2HP and 1HP motors makes it ideal for light to medium-duty industrial use.

Advantages

• Supports 115VAC and 230VAC input
• Provides up to 180VDC output
• Reliable SCR-based control
• Copper construction for improved efficiency
• Anti-interference design for stable operation
• Compact size for easy installation

Limitations

• No digital display or feedback interface
• Manual adjustment only (no remote control)
• Designed for brushed DC motors only

These limitations are typical of analog SCR motor controllers and do not detract from their reliability in appropriate applications.

Comparison with Digital DC Controllers

Compared to digital PWM-based DC motor controllers, this SCR-based unit offers:

• Greater tolerance to electrical noise
• Stronger torque at low speeds
• Simpler operation with fewer configuration requirements

However, digital controllers may provide more advanced monitoring features, which this controller intentionally omits in favor of simplicity.

Who Should Buy This Controller

This controller is ideal for:

• Workshop owners using DC machinery
• Industrial technicians needing reliable speed control
• Engineers designing simple motor-driven systems
• Educational institutions teaching motor control fundamentals
• DIY builders working with high-voltage DC motors

Users seeking a straightforward, durable, and cost-effective 180V DC motor controller review solution will find this model well-suited to their needs.

Final Verdict

The Copper Volt Adjust 115/230VAC Output 90V/180VDC SCR DC Motor Speed Controller delivers dependable performance, strong torque control, and long-term reliability for brushed DC motors up to 1 horsepower. Its copper construction, anti-interference design, and wide voltage compatibility make it a practical choice for industrial and workshop applications.

For users who value simplicity, durability, and consistent motor control, this SCR-based controller remains a solid and proven solution.
