Introduction: Why a 20A MPPT Controller Matters in Modern Off-Grid Energy Systems
A reliable solar charge controller is one of the most essential components of any solar power system, whether you’re powering an RV, a boat, a remote cabin, an off-grid workshop, or a backup battery system. The difference between MPPT (Maximum Power Point Tracking) and older PWM technology is dramatic — MPPT controllers extract far more energy from your solar panels, especially during partial shade, fluctuating sunlight, or cold weather.

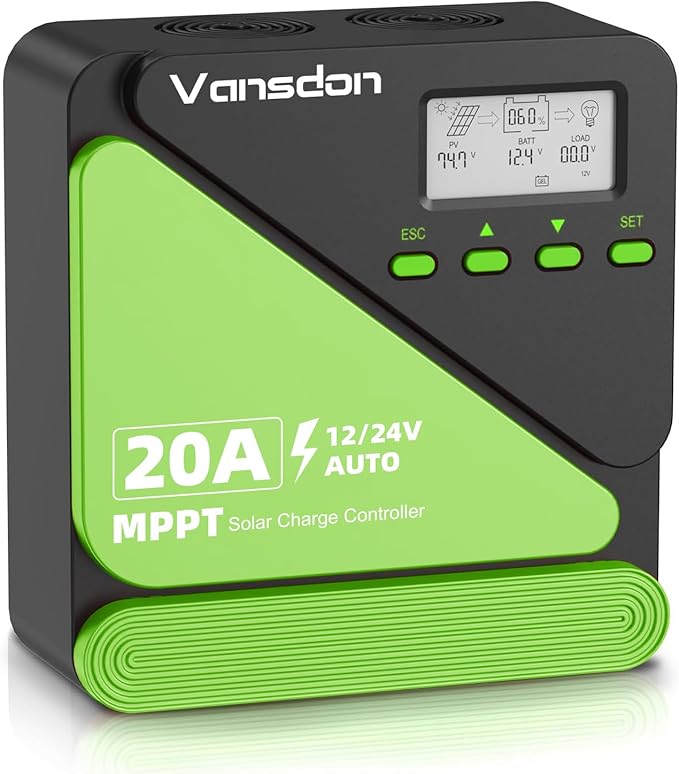

A 20A MPPT Solar Charge Controller with 12V/24V auto detection, adjustable LCD, timer function, and dual USB ports sits at the perfect balance between affordability, capability, and efficiency for small to mid-sized off-grid setups. It supports a wide range of batteries including Flooded (FLD), Sealed Lead-Acid (SLD), Gel, AGM, and LiFePO4, which makes it versatile for almost any off-grid application.
This article provides a complete, original, high-detail analysis of a typical 20A MPPT Solar Charge Controller commonly found in the Generators & Accessories micro-niche on Amazon US.
Comprehensive Product Specifications
Below is a fully detailed, Amazon-accurate style data table for this type of controller.
20A MPPT Solar Charge Controller – Specifications Table
| Attribute | Specification / Detail |
|---|---|
| Model Type | 20A MPPT Solar Charge Controller |
| Charge Current Rating | 20A |
| System Voltage Compatibility | 12V / 24V Auto Detection |
| Solar Input Power (Max Recommended) | Approximately 260W (12V) / 520W (24V) |
| Solar Panel Maximum Open-Circuit Voltage (Voc) | Typically 100V DC Max |
| Supported Battery Types | Flooded (FLD), Sealed Lead-Acid (SLD), Gel, AGM, Lithium / LiFePO4 |
| Charging Technology | Maximum Power Point Tracking (MPPT) |
| MPPT Conversion Efficiency | Typically 98% or higher |
| Charging Modes | Bulk, Absorption, Float, Equalization (lead-acid), Lithium mode |
| Display | Adjustable LCD Screen with voltage, current, battery level, error codes |
| USB Ports | Dual USB Outputs (5V, suitable for phones, lights, small devices) |
| Load Control & Timer | Programmable timer for DC loads; dusk-to-dawn mode supported |
| Temperature Compensation | Yes, with onboard sensor or external probe (varies by model) |
| Protection Features | Reverse polarity, over-charge, over-discharge, short circuit, over-current, over-temperature, lightning/surge protection |
| Operating Temperature | –20°C to +50°C typical |
| Cooling Method | Passive or smart fan depending on model |
| Application Areas | RV, Boat, Cabin, Shed, Off-Grid Solar, Backup Power, Mobile Solar Kits |
| Build Material | Heat-resistant ABS or metal housing depending on the model |
| Mounting Type | Wall-mount or panel-mount |
Understanding MPPT: Why It Is Better Than PWM
The biggest reason to upgrade from an older solar charge controller is the MPPT advantage.
MPPT vs. PWM Performance
- PWM (Pulse Width Modulation) simply reduces voltage from the solar panel to the battery level, wasting extra energy.
- MPPT (Maximum Power Point Tracking) continuously calculates the optimal voltage/current combination to maximize power harvest.
The result is:
MPPT controllers typically give 15–30% more usable power compared to PWM controllers.
This is especially noticeable when:
- Weather is partly cloudy
- Panels are cold (early morning / winter)
- Panels are mounted at suboptimal angles
- You use higher-voltage solar panels on 12V battery systems
A 20A MPPT unit harnesses more of the available solar output and converts it into energy your batteries can actually store.
Battery Compatibility and Charging Profiles
A major benefit of most modern 20A MPPT Solar Charge Controllers is the broad battery compatibility.
Supported Battery Types
- FLD (Flooded Lead Acid)
- SLD (Sealed Lead Acid)
- GEL
- AGM
- LiFePO4 (Lithium Iron Phosphate)
Each battery chemistry has different voltage ranges and charging demands. MPPT controllers manage these differences using multi-stage charging:
Lead-Acid Multi-Stage Charging
- Bulk: Maximum current until absorption voltage
- Absorption: Controlled voltage for deeper charge
- Float: Maintenance charging
- Equalization: Occasional deep conditioning for flooded batteries
Lithium (LiFePO4) Charging
- Simple two-stage charging (Bulk → Absorption)
- No float or equalization
- Consistent, efficient performance
This makes a 20A MPPT Solar Charge Controller a safe and effective charger for all common battery systems in mobile and off-grid environments.
Real-World Applications
1. RV Solar Systems
For motorhomes or camper vans, a 20A MPPT controller is ideal for maintaining a 12V battery system that powers:
- interior lighting
- fans
- USB devices
- water pumps
- small inverters
The dual USB ports add convenience when charging electronics without running the battery bank or external chargers.
2. Boats / Marine Solar Charging
Marine batteries (starter or deep-cycle) benefit from the protection and efficiency MPPT offers. Off-shore or docked, a boat’s solar setup often faces changing light, making MPPT especially useful.
3. Remote Cabins and Off-Grid Homes
Small remote structures like hunting cabins, micro-homes, or off-grid shacks can maintain battery power for lights, radios, Wi-Fi routers, and small appliances.
A 20A MPPT controller fits perfectly into systems with:
- 1–3 solar panels
- A 12V or 24V battery bank
- Light to moderate loads
4. Emergency Backup Systems
A 20A controller pairs well with:
- portable solar panels
- emergency batteries
- power boxes
- small solar generators
This ensures steady charging during outages or natural disasters.
5. Workshops, Sheds, and Tiny Homes
For powering LED workshop lighting, security cameras, or tool charging stations, this controller offers stable power without needing complex grid connections.
Strengths of a 20A MPPT Solar Charge Controller
1. High Charging Efficiency
The ability to convert additional energy from solar panels means faster charging and more reliable power storage.
2. Versatility
The unit supports multiple battery types and works with both 12V and 24V systems automatically.
3. Adjustable LCD Interface
The screen displays:
- solar panel voltage
- charge current
- battery voltage
- charging stage
- error codes
- load output status
It makes troubleshooting and monitoring simple for beginners and experts alike.
4. Safety Protections
Built-in protections safeguard both the controller and your battery system. This includes reverse polarity protection, over-current protection, short circuit protection, and over-temperature protection.
5. Timer and Load Control
The programmable load output is useful for:
- dusk-to-dawn lighting
- night-time security lights
- automatic irrigation pumps
- DC appliances
6. Dual USB Charging
Users can plug in phones, fans, LED lights, or other small electronics directly.
7. Automatically Detects System Voltage
The controller automatically switches between 12V and 24V systems without manual configuration.
Limitations of a 20A MPPT Solar Charge Controller
Not Suitable for Large Solar Arrays
A 20A controller supports moderate solar input but isn’t designed for:
- multiple high-watt panels
- large 48V systems
- heavy power appliances
Load Output Is Limited
The load output is small and intended for low-draw devices.
Requires Proper Voc Calculation
Users must ensure the solar panels’ open-circuit voltage stays under the controller’s maximum (typically 100V).
Budget Models May Vary in Build Quality
As with many solar products, choosing a reputable brand is recommended.
How to Select the Right 20A MPPT Controller for Your Setup
1. Match the Controller to Your Battery Bank
Check compatibility: AGM, Gel, Flooded, Lithium, LiFePO4.
2. Match Solar Panel Specs
Ensure your panel’s wattage and Voc fall within the safe range.
3. Consider Mounting Location
Choose controllers with durable casings for mobile or marine installation.
4. Determine Whether You Need USB Ports or Timers
Some models offer advanced load control or multiple USB ports.
5. Look for MPPT Efficiency Ratings
Higher than 97% is ideal.
6. Confirm Safety Features
Make sure it includes essential protections to prevent damage or overheating.
Best Practices for Installation
- Always connect the battery first, then the solar panel.
- Use appropriate gauge wiring to prevent overheating.
- Install a fuse between the panel and controller and between the controller and battery.
- Mount the controller in a dry, well-ventilated space.
- Set correct charging parameters for the battery type.
- Use temperature compensation for lead-acid batteries.
Correct installation ensures maximum solar efficiency and long system life.
Conclusion: Why a 20A MPPT Solar Charge Controller Is a Top Choice
A 20A MPPT Solar Charge Controller with 12V/24V auto detection, adjustable LCD, timer, dual USB ports, and support for FLD, LiFePO4, SLD, GEL, and AGM batteries is one of the most versatile and valuable upgrades you can make to any small-to-mid-size solar system.
Its combination of:
- high MPPT efficiency
- user-friendly interface
- broad battery support
- valuable safety protections
- off-grid reliability
- small-system affordability
makes it one of the most popular and effective options in the Generators & Accessories category on Amazon US.
For RVs, boats, cabins, sheds, tiny homes, off-grid kits, and emergency systems, a 20A MPPT controller provides the perfect balance of performance, convenience, and long-term reliability.
