A versatile mid-drive motor system designed to convert standard bicycles into electric bikes
Electric bicycles have transformed how people commute, exercise, and explore the outdoors. However, purchasing a complete electric bike is not always necessary. Many riders prefer to upgrade their existing bicycles using electric conversion kits. These systems allow cyclists to retain their favorite bikes while adding the benefits of electric power.
The BAFANG Mid Drive Kit UART Version is one of the most recognized electric bike motor systems used for bicycle conversions. Known for reliability and strong performance, BAFANG motors are widely used in both factory-built eBikes and custom conversions.
This motor kit is designed to fit standard bottom brackets and can transform various bicycle types into efficient electric bikes. In this detailed BAFANG Mid Drive Kit Review, we will examine the motor design, specifications, compatibility, installation process, riding performance, torque capabilities, and practical benefits of this conversion system.
Product Overview
The BAFANG UART version mid drive kit is a central motor system designed for converting conventional bicycles into electric-powered bikes. Unlike hub motors that are installed in the wheel, mid-drive motors are mounted at the crankset and transfer power through the bicycle’s drivetrain.
This configuration improves torque efficiency and allows the motor to take advantage of the bike’s gears.
The BAFANG system is widely used by cycling enthusiasts because it combines power, flexibility, and reliability in a compact design.
Product Data Table
| Feature | Specification |
|---|---|
| Product Name | BAFANG Mid Drive Kit UART Version |
| Brand | BAFANG |
| Motor Type | Mid Drive Motor |
| Motor Models | BBS01B, BBS02B, BBSHD |
| Voltage Options | 36V / 48V |
| Power Options | 250W / 500W / 750W / 1000W |
| Maximum Torque | Up to 80 Nm |
| Top Speed | Up to 25 km/h |
| Bottom Bracket Compatibility | 68 mm Standard JIS |
| Bottom Bracket Diameter | 34 mm |
| Display | C18 LCD Display |
| Control Interface | UART Communication |
| Item Weight | 6.8 kg |
| Bike Compatibility | Mountain, Road, Commuter Bikes |

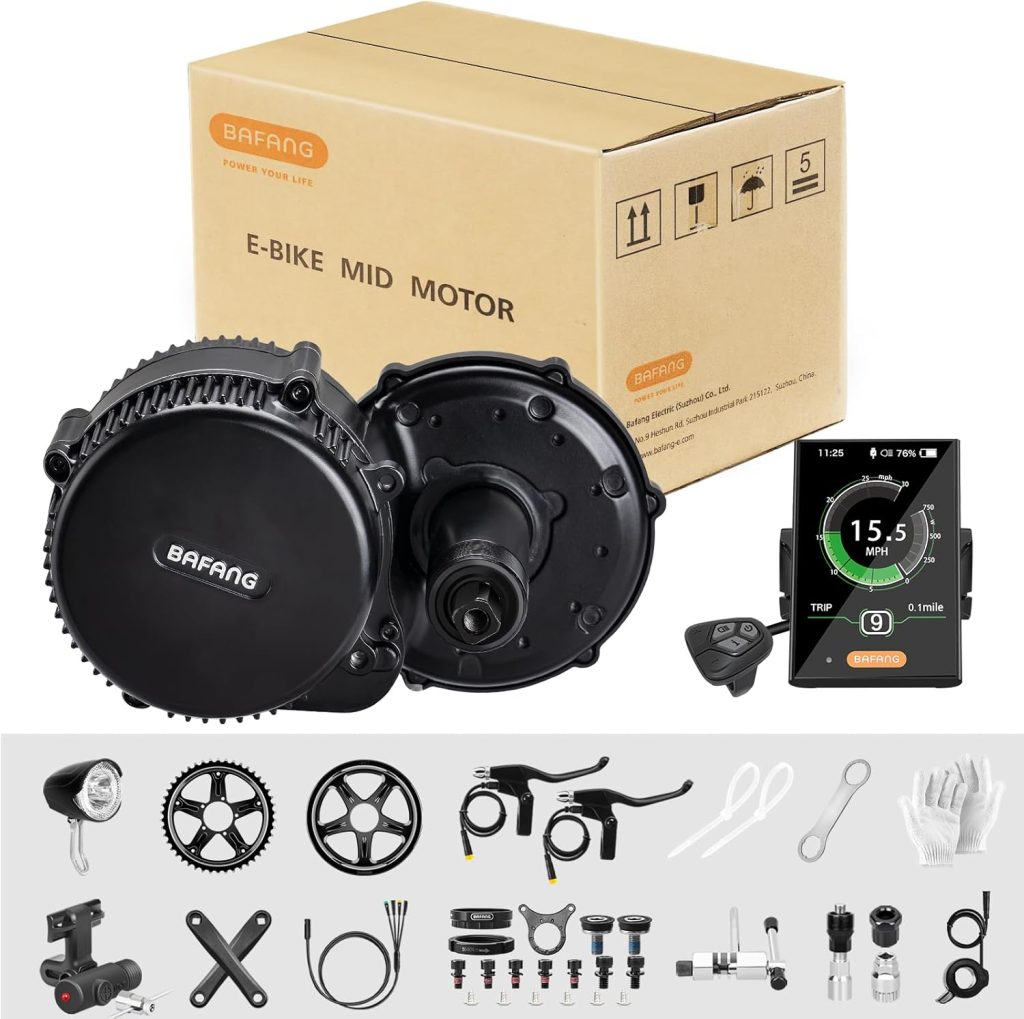

| Included Components | Motor, display, brake lever, thumb throttle, cranks, speed sensor, 1T4 cable, screws |
This table summarizes the technical details that define the motor kit’s performance and compatibility.
Mid Drive Motor Technology
The defining characteristic of the BAFANG mid drive system is its central motor design.
How Mid Drive Systems Work
In a mid-drive configuration, the motor is mounted in the bottom bracket area of the bicycle. Instead of driving the wheel directly, the motor drives the chain and works with the bike’s gears.
This design offers several advantages compared with hub motors:
- Improved torque efficiency
- Better hill climbing capability
- Balanced weight distribution
- More natural riding feel
Because the motor uses the bike’s gear system, riders can shift gears to optimize motor performance depending on terrain.
Motor Power Options
The BAFANG UART motor kit is available in several power configurations. This flexibility allows riders to select the level of power that best suits their needs.
Available Motor Power Levels
The kit supports four motor configurations:
- 250W motor
- 500W motor
- 750W motor
- 1000W motor
Each option offers different levels of power and performance.
The 250W version is typically suitable for riders who want moderate assistance and longer battery efficiency.
Higher-powered versions, such as the 750W or 1000W motors, provide stronger acceleration and improved hill-climbing capability.
Torque Performance
Torque is one of the most important performance characteristics of a mid-drive motor.
The BAFANG BBS01B motor can generate up to 80 Nm of torque, which allows riders to tackle steep inclines and challenging terrain.
High torque levels provide several benefits:
- Easier hill climbing
- Stronger acceleration
- Better performance under load
For riders who travel through hilly environments or carry cargo, this torque output can significantly improve the riding experience.
Speed Capabilities
The top speed of the BAFANG mid-drive motor system can reach approximately 25 kilometers per hour, depending on configuration and local regulations.
Actual speed depends on several factors:
- Battery capacity
- Rider weight
- Terrain conditions
- Pedal assist level
- Gear selection
Because the motor works through the drivetrain, riders can shift gears to control acceleration and speed more efficiently.
UART Communication System
The UART version of the BAFANG motor system refers to the communication protocol used between the motor controller and display.
UART communication provides several benefits:
- Stable data communication
- Reliable system control
- Compatibility with various displays and accessories
This technology allows the display and motor controller to exchange information such as speed, battery level, and pedal assist settings.
LCD Display and System Monitoring
The kit includes a C18 LCD display, which acts as the main interface between the rider and the electric motor system.
Display Features
The LCD display shows important riding information, including:
- Current speed
- Battery level
- Distance traveled
- Pedal assist level
- Total mileage
This information helps riders monitor system performance and battery usage during rides.
User Controls
The display also allows riders to adjust system settings such as pedal assist levels and other riding parameters.
The controls are designed to be simple and easy to operate while riding.
Pedal Assist and Throttle Control
The BAFANG mid-drive motor system supports multiple riding modes that allow cyclists to customize their riding experience.
Pedal Assist Mode
In pedal assist mode, the motor provides assistance only when the rider pedals.
The system detects pedaling motion and delivers electric support accordingly.
Benefits of pedal assist include:
- Reduced rider fatigue
- Extended riding range
- More natural cycling experience
Throttle Mode
The thumb throttle allows riders to activate the motor without pedaling.
This mode can be useful in situations such as:
- Starting from a stop
- Climbing steep hills
- Riding when the rider needs rest
Switching between these modes allows riders to balance exercise and convenience.
Installation and Compatibility
One of the major advantages of the BAFANG conversion kit is its compatibility with a wide range of bicycles.
Bottom Bracket Requirements
The motor is designed for bicycles with:
- 68 mm standard JIS bottom bracket
- 34 mm bottom bracket diameter
These measurements are common in many mountain, road, and commuter bicycles.
Bicycle Types Supported
The motor kit can be installed on various bike styles, including:
- Mountain bikes
- Road bikes
- Hybrid bikes
- Commuter bikes
However, installation requires verifying that the frame design allows proper motor clearance.
Installation Process
Installing a mid-drive motor kit involves replacing the existing crankset and bottom bracket with the motor system.
Basic Installation Steps
The typical installation process includes:
- Removing the original bottom bracket and crankset
- Installing the BAFANG motor unit in the bottom bracket shell
- Attaching the chainring and crank arms
- Mounting the LCD display on the handlebars
- Installing throttle and brake sensors
- Connecting wiring and controller cables
- Installing the battery on the frame
Most riders with basic mechanical knowledge and bicycle tools can complete the installation successfully.
Riding Experience
After installation, the BAFANG mid-drive motor kit significantly enhances the riding experience.
Smooth Power Delivery
The mid-drive system provides smooth and consistent motor assistance, making acceleration feel natural.
Efficient Hill Climbing
The motor’s torque combined with the bike’s gears allows riders to climb hills more easily than with hub motors.
Balanced Bike Handling
Because the motor is positioned near the center of the bike, weight distribution remains balanced.
This improves overall handling and stability during rides.
Advantages of the BAFANG Mid Drive Kit
The BAFANG UART motor system offers several advantages that make it popular among DIY electric bike builders.
Flexible Power Options
Multiple motor configurations allow riders to choose the level of performance they need.
Strong Torque Output
Up to 80 Nm of torque provides excellent climbing capability.
Compatibility with Many Bicycles
The motor can be installed on many standard bike frames.
Efficient Power Delivery
Mid-drive motors use the bike’s gears to maximize efficiency.
Expandable System
UART communication allows compatibility with various displays and accessories.
Maintenance and Care
Proper maintenance helps ensure the long-term reliability of the motor system.
Recommended maintenance practices include:
- Keeping the drivetrain clean
- Checking chain wear regularly
- Inspecting electrical connections
- Ensuring mounting bolts remain secure
- Charging the battery according to manufacturer instructions
Routine maintenance helps maintain consistent performance and prevents mechanical issues.
Who Should Consider This Motor Kit
The BAFANG mid-drive conversion kit is suitable for several types of riders.
DIY Electric Bike Builders
Cyclists who enjoy customizing their bicycles often choose BAFANG motors because of their flexibility and strong performance.
Commuters
Electric assistance makes commuting easier and less physically demanding.
Adventure Cyclists
High torque output helps riders handle challenging terrain and steep climbs.
Budget-Conscious Riders
Converting an existing bike can be more affordable than purchasing a new electric bike.
Conclusion
The BAFANG Mid Drive Kit UART Version is a powerful and adaptable electric bike motor system designed for riders who want to convert their traditional bicycles into efficient electric bikes. Its mid-drive design provides improved torque, better weight distribution, and excellent climbing capability compared to many hub motor systems.
With multiple power options ranging from 250W to 1000W, the kit can accommodate a wide range of riding styles and performance needs. The inclusion of the C18 LCD display, thumb throttle, and essential accessories makes it a complete conversion system that allows riders to monitor and control their electric bike easily.
For cyclists interested in upgrading their existing bicycles with reliable electric assistance, the BAFANG mid-drive motor kit offers a versatile solution that combines performance, compatibility, and efficiency.
