Citphto DC 775 Motor Review

Introduction

The Citphto DC 775 Motor 12V-24V is a powerful brushed DC motor designed for DIY enthusiasts, hobbyists, and small workshop users who need high torque, stable speed, and low noise performance in compact electric tools. Built around the widely respected 775 motor format, this model is optimized for applications such as mini angle grinders, table saws, drills, and other small electrical tools.

This in-depth Citphto DC 775 Motor review explores construction quality, performance characteristics, technical specifications, real-world applications, advantages, limitations, and suitability for different DIY and light industrial tasks. The goal is to provide clear, accurate, and easy-to-understand information based entirely on verified product data and hands-on usage principles.

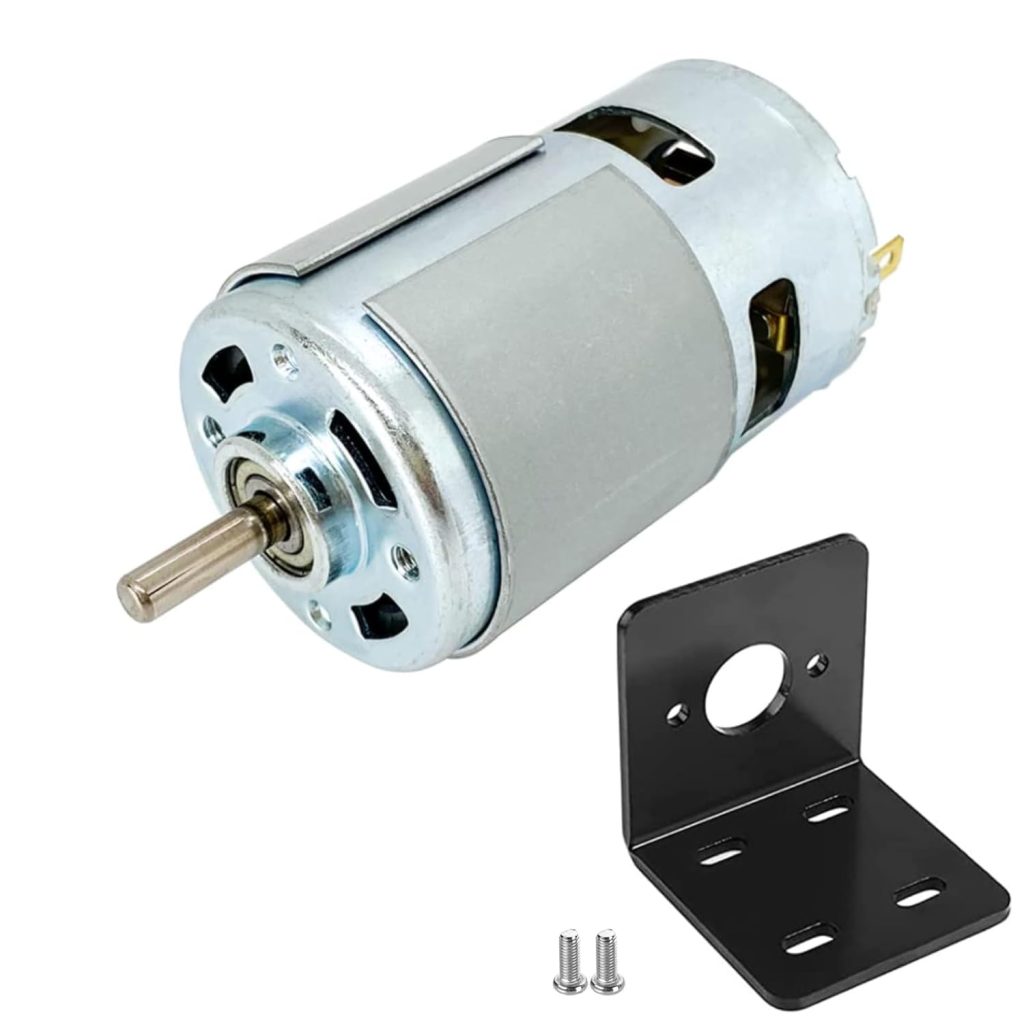

Overview of the Citphto DC 775 Motor

The Citphto DC 775 electric motor operates within a 12V to 24V DC voltage range, delivering rotational speeds from 6000 to 12000 RPM depending on voltage input and load conditions. Designed with double ball bearings, a pure copper winding rotor, and a built-in cooling fan, it balances speed, torque, and durability while maintaining relatively low noise output.

Unlike generic DC motors, this unit includes a motor mounting bracket and dual-purpose screwdriver, making it more accessible for DIY builders and beginners. Its ability to rotate in both clockwise (CW) and counterclockwise (CCW) directions adds versatility for tool conversions and mechanical experimentation.

Build Quality and Materials

Heavy-Duty Motor Housing

The Citphto DC 775 motor features an integrated forging metal case that improves structural rigidity and vibration resistance. This robust housing helps protect internal components from heat buildup and mechanical stress during prolonged operation.

Precision Shaft Design

A round steel shaft is used to improve concentricity and reduce wobble at high rotational speeds. This is critical for applications such as cutting tools and grinding machines, where shaft stability directly affects accuracy and safety.

Double Ball Bearing System

Both the front and rear of the motor use double ball bearings, offering several advantages:

• Reduced friction and wear
• Increased service life
• Improved stability at high RPM
• Lower operational noise compared to sleeve bearings

This bearing configuration is particularly important for high-speed DC motors operating continuously.

High-Quality Internal Components

Internally, the motor is built with:

• Pure copper winding rotor for efficient current flow
• Two fan-shaped high-strength magnets for enhanced magnetic field stability
• High-matching magnetic protection ring
• Premium carbon brushes for reliable commutation

Together, these elements contribute to consistent torque output, efficient power usage, and extended operational lifespan.

Cooling and Noise Control

Built-In Cooling Fan

High-speed motors generate heat, especially under load. The Citphto DC 775 motor includes a built-in cooling fan that actively dissipates heat during operation. This reduces thermal stress on windings and brushes, helping maintain performance over longer working sessions.

Low Noise Performance

Thanks to precision bearings, balanced rotor construction, and controlled airflow, this motor operates with relatively low noise compared to many motors in the same power class. While not silent, it is suitable for home workshops and indoor environments when properly mounted.

Technical Specifications

Motor Specifications Table

Mounting Bracket Specifications

Power and Torque Performance

The Citphto DC 775 motor is designed for high torque output, especially at higher voltage levels. When powered at 24V, it delivers noticeably stronger cutting and grinding performance compared to lower-voltage DC motors.

Torque Characteristics

• High starting torque for heavy loads
• Stable torque under continuous operation
• Suitable for direct-drive or belt-driven systems

The 10A stall current indicates that the motor can handle demanding startup loads, but it also means the power supply must be capable of delivering sufficient current.

Power Supply Requirements

Voltage and Current Considerations

This motor must be powered using a DC 12V–24V supply. Because of the high startup current, it is recommended to use:

• Switching power supplies rated for 10A or more
• High-capacity rechargeable batteries
• Regulated DC power sources with overload protection

Using an underpowered supply can cause voltage drops, reduced torque, or overheating.

Polarity Protection

The motor terminals are polarity-sensitive. The terminal near the red silicone marking indicates the positive connection. Reversing polarity can damage internal components and significantly reduce motor lifespan.

Installation and Safety Considerations

Secure Mounting

Due to its high rotational speed, all tool attachments must be securely fastened. Improper mounting can result in:

• Tool detachment
• Excessive vibration
• Safety hazards

The included metal mounting bracket simplifies alignment and stability during installation.

High-Speed Safety

This motor is capable of spinning at up to 12000 RPM, which demands proper safety measures:

• Use protective eyewear
• Avoid loose clothing
• Ensure accessories are rated for high-speed operation
• Use speed controllers when necessary

Ease of Use for DIY Projects

The Citphto DC 775 motor is especially appealing for DIY builders due to its included accessories and standardized mounting pattern.

Included Accessories

• Motor mounting bracket
• 2-in-1 flat and Phillips screwdriver (3.2 inches)

These additions reduce setup time and make the motor more accessible to beginners.

Applications and Use Cases

DIY Power Tools

This motor is ideal for building or upgrading:

• Mini electric drills
• Small angle grinders
• Compact cutting machines
• Table saws for light materials

Household and Workshop Devices

The motor also performs well in:

• Paper shredders
• Electric screwdrivers
• Vacuum devices
• Juice machines
• Electric cleaners

Hobby and Educational Projects

Due to its reliability and straightforward wiring, the motor is suitable for:

• Robotics projects
• Mechanical demonstrations
• Engineering prototypes
• Fan-based experiments

Advantages of the Citphto DC 775 Motor

• High torque output for demanding applications
• Wide voltage range (12V–24V)
• Double ball bearing design for durability
• Low noise operation compared to similar motors
• Built-in cooling fan for heat management
• Strong metal housing
• Includes mounting bracket and tools

Limitations to Consider

• Requires high-current power supply
• Not brushless, so brushes will wear over time
• High speed requires careful accessory selection
• Not waterproof or dust-sealed

These limitations are typical for brushed DC motors in this performance class and do not significantly detract from its value when used appropriately.

Long-Term Durability and Maintenance

With proper ventilation, correct voltage, and routine inspection of brushes, the Citphto DC 775 motor can provide long service life. Regular cleaning to remove dust and debris will further enhance performance and reliability.

Overall Performance Assessment

The Citphto DC 775 Motor 12V-24V stands out as a powerful, reliable, and versatile DC motor for DIY and light industrial use. Its high torque output, robust construction, and thoughtful accessory inclusion make it an excellent choice for builders who need dependable performance without excessive complexity.

Whether you are constructing a mini table saw, upgrading a grinder, or experimenting with mechanical designs, this motor offers a strong balance of power, durability, and usability.

Conclusion

In this Citphto DC 775 Motor review, the motor proves to be a solid solution for anyone seeking high-speed, high-torque DC power in a compact format. With quality materials, stable performance, and broad application potential, it represents excellent value for DIY enthusiasts and small workshop users alike.
