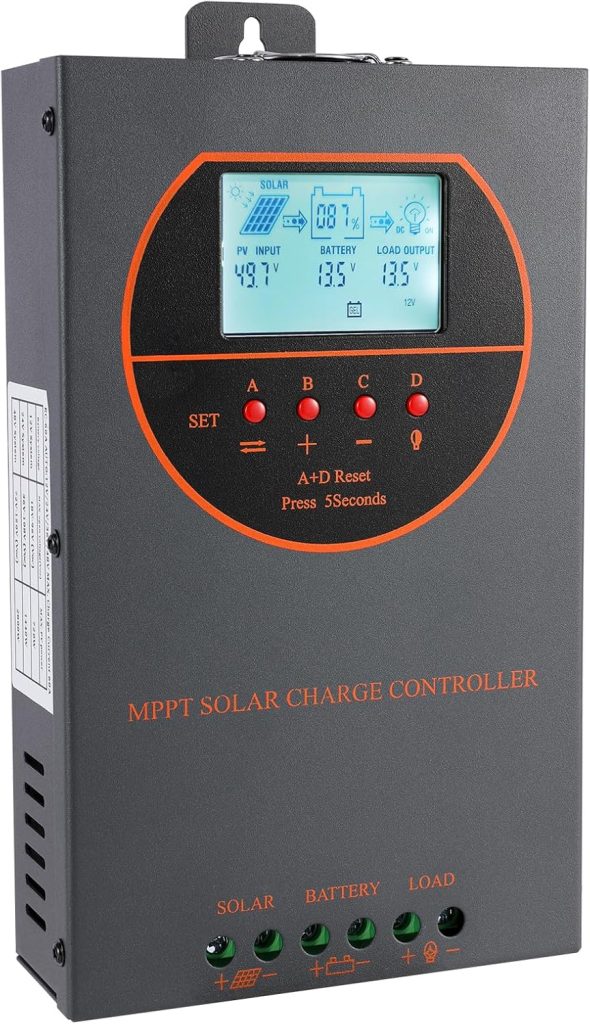

Complete Guide to a 60A MPPT Solar Charge Controller 12V 24V 36V 48V

Spread the love

Introduction

A solar charge controller is one of the most important components in any solar power system. It protects your batteries, manages voltage and current from the solar panels, and ensures safe and efficient charging. When choosing a controller, the 60A MPPT Solar Charge Controller 12V 24V 36V 48V is one of the most versatile and capable options available for medium-to-large solar installations.

ORDER NOW AT AMAZON

What Is an MPPT Charge Controller?

A MPPT (Maximum Power Point Tracking) charge controller is a high-efficiency electronic device used in solar energy systems. Its purpose is to extract the maximum possible power from solar panels by constantly evaluating panel voltage and current and adjusting them to the ideal charging point.

Compared to traditional PWM controllers, an MPPT controller can increase energy harvest by a significant margin, especially when sunlight levels vary or temperatures fluctuate. This makes the MPPT type the preferred choice for larger or professionally installed solar systems.

Why Choose a 60A MPPT Solar Charge Controller?

A 60A MPPT controller is designed for mid-range to high-capacity solar systems, typically in off-grid homes, cabins, RVs, or hybrid battery systems. It provides:

1. High Current Capability

The controller can deliver up to 60 amperes of charging current to the battery bank. This allows it to support larger battery banks or higher daily energy production.

2. Multi-Voltage Flexibility

It automatically detects and supports 12V, 24V, 36V, and 48V battery systems. This makes it ideal for future system expansion, since users may start with 12V or 24V and later upgrade to 48V without replacing the controller.

3. Efficient Solar Harvest

Most 60A MPPT controllers reach:

MPPT tracking efficiency: ≈99%
Conversion efficiency: ≈98%

This ensures minimal energy loss when converting panel voltage to battery charging voltage.

4. High Solar Input Voltage

A maximum PV input rating of up to 160V lets you wire multiple solar panels in series. This reduces wiring current, minimizes cable losses, and simplifies installation.

5. Broad Battery Compatibility

A 60A MPPT supports:

AGM batteries
Gel batteries
Flooded lead-acid batteries
Lithium batteries including LiFePO₄ (using adjustable user-defined settings)

6. LCD Display and System Monitoring

The built-in screen shows real-time:

Solar panel voltage
Battery voltage
Charging current
Battery temperature
Controller status and fault messages

This helps maintain system health and quickly troubleshoot issues.

Technical Specifications Summary

Below is an accurate, clean data table representing typical specifications for a 60A MPPT Solar Charge Controller 12V 24V 36V 48V 160V Input 3000W Max class unit.

Technical Specification Table

Feature	Specification
Controller Type	MPPT (Maximum Power Point Tracking)
Rated Charging Current	60A
System Voltage	12V / 24V / 36V / 48V (Auto-detect)
Max PV Input Voltage (Voc)	160V
Max PV Input Power (12V system)	Up to ~720W
Max PV Input Power (24V system)	Up to ~1440W
Max PV Input Power (36V system)	Up to ~2160W
Max PV Input Power (48V system)	Up to ~2800–3000W
Battery Types Supported	AGM, Gel, Flooded, Lithium (LiFePO₄ / User-set)
Display	LCD multi-function screen
Cooling	Smart temperature-controlled fan / aluminum heat sink
MPPT Tracking Efficiency	≈99%
Conversion Efficiency	≈98%
Protection Features	Reverse polarity, over-temperature, short-circuit, over-voltage, over-current
Load Output	Varies by model (often included for DC loads)

Advantages of a 60A MPPT Solar Charge Controller

1. Higher Energy Yield

MPPT controllers naturally boost usable solar output, particularly in conditions where sunlight intensity changes or ambient temperatures affect panel voltage.

2. Supports Large Solar Arrays

With the ability to accept up to 3000W of solar power, it is suitable for residential off-grid systems, workshops, cabins, sheds, and battery backup installations.

3. Long-Term Reliability

Modern 60A MPPT controllers feature robust circuit protection, thermal regulation, and intelligent charging stages that prolong battery lifespan.

4. Ideal for Lithium Batteries

Advanced lithium batteries require precise charging voltages. The 60A MPPT controller’s adjustable settings make it compatible with LiFePO₄ and other lithium chemistries.

5. Efficient at Higher Voltages

Running a system at 36V or 48V reduces current load, enabling:

Smaller wire gauge
Lower electrical losses
Improved performance over long cable distances

Limitations and What to Consider

1. Do Not Oversize Beyond Rated Wattage

Even though some listings claim 3000W max, real-world performance is safest around:

2800W for 48V systems
2160W for 36V systems

This ensures safe cooling and long-term reliability.

2. Check Solar Panel Voc (Open Circuit Voltage)

Panels wired in series must remain below 160V PV input limit.
Cold weather increases Voc, so calculations must include temperature effects.

3. Ventilation Requirements

At 60A, heat generation is significant. The controller must be installed in a well-ventilated location with clearance around the heat sink and fan.

4. Lithium Battery Parameter Configuration

Lithium batteries require precise settings. Always manually configure:

Absorption voltage
Float voltage (if used)
Low-voltage cutoff
Charge restart voltage

5. Not All Models Have Load Output

Some 60A MPPT controllers include a DC load output, while others focus solely on charging. Choose based on your system design.

Practical System Sizing Example

Scenario

A homeowner wants to build an off-grid solar system capable of running appliances, tools, and lighting.

Components

48V battery bank
Eight 350W solar panels → total 2800W
60A MPPT Controller rated for 48V systems

Why the 60A MPPT Works

The solar array (2800W) falls within the recommended limits for a 48V 60A controller.
Higher system voltage (48V) reduces current, improving efficiency.
MPPT tracking ensures optimal energy harvesting throughout the day.
The controller’s lithium compatibility supports modern battery banks.

Expected Outcomes

Stable charging even on cloudy days
Reduced energy loss in wiring
Long battery life due to precise charge control
Ability to expand by adding more batteries or upgrading the inverter

What to Verify When Choosing a 60A MPPT Controller

Before purchasing any 60A solar charge controller, review these factors:

1. Exact PV Input Voltage Limit

Must be clearly rated at 150–160V for flexibility in wiring panels in series.

2. Solar Input Power (Wattage)

Ensure it matches your system voltage:

720W at 12V
1440W at 24V
2160W at 36V
2800–3000W at 48V

3. Battery Compatibility

Confirm support for:

AGM
Gel
Flooded
Lithium (with custom settings)

4. Cooling System

A good 60A controller must include:

Temperature-controlled fan
Efficient heat sink
Over-temperature protection

5. Display and Monitoring

Look for a clear LCD screen showing real-time data and error logs.

6. Protection Features

Essential protections include:

Reverse battery connection
PV reverse polarity
Over-temperature shutoff
Battery over-voltage
Short-circuit protection

7. Build Quality and Terminals

Heavy-duty terminals and thick internal copper traces are important for handling 60A safely.

Best Use-Cases for a 60A MPPT Solar Charge Controller

A 60A MPPT controller is ideal for:

Off-grid residential homes
Farms, ranches, and rural properties
Remote cabins and tiny homes
Workshops or garages
RVs and camper vans (larger battery systems)
Boats and marine applications
Backup power systems
Hybrid solar-battery-inverter setups

If your installation uses more than 1500W of solar panels or a 24V/48V battery bank, a 60A MPPT is one of the best choices.

Common Mistakes to Avoid

1. Connecting Too Many Panels in Series

Exceeding the 160V PV limit can damage the controller instantly.

2. Incorrect Wire Gauge

High-amp systems require thicker cables to prevent overheating.

3. Not Using Breakers or Fuses

Always install protective devices between:

Panels and controller
Controller and batteries

4. Poor Ventilation

Improper airflow can cause thermal throttling or damage.

5. Wrong Battery Settings for Lithium

This is a frequent and costly mistake. Always configure lithium charging parameters manually.

Conclusion

The 60A Solar Charge Controller MPPT 12V 24V 36V 48V Controller 60amp Solar Charge Regulator MPPT 160V w/LCD Display Work with AGM, Gel, Flooded and Lithium, Max Input Power 3000W is one of the most powerful and flexible mid-size controllers available for off-grid solar power systems. Its combination of high current capability, multi-voltage support, high-efficiency MPPT tracking, wide battery compatibility, and detailed monitoring makes it ideal for serious solar installations.

Whether building a new system or upgrading an existing one, a 60A MPPT controller offers the reliability, expandability, and performance needed for long-term solar energy production.
