Controlling the speed of small DC motors accurately and safely is essential in electronics projects, mechanical experiments, educational kits, and light industrial automation. A compact, reliable, and easy-to-use controller can significantly improve efficiency, safety, and performance. The Diitao 6PCS Low Voltage DC Motor Speed Controller PWM DC 1.8V–12V 2A 30W 1803BK / 1803B is designed specifically for these purposes, offering smooth speed regulation, compact size, and built-in protection features.
This in-depth review explores the design, performance, specifications, applications, and real-world usability of this low voltage PWM speed controller, helping you determine whether it is the right solution for your DC motor projects.
Introduction to Low Voltage DC Motor Speed Controllers
Low voltage DC motors are widely used in small machines, robotics, DIY electronics, toys, lab equipment, and automation prototypes. However, running a motor at full speed is rarely ideal. Speed control allows users to:
- Reduce mechanical stress
- Improve precision
- Lower power consumption
- Extend motor lifespan
- Adapt motor behavior to specific tasks
The Diitao 1803BK low voltage DC motor speed controller uses PWM (Pulse Width Modulation) technology to achieve efficient and smooth motor control without significant energy loss.
Product Overview: Diitao 1803BK PWM DC Speed Controller
The Diitao 6PCS low voltage DC motor speed controller is a compact adjustable driver module designed to control motor speed by regulating voltage output through PWM signals. It supports a wide range of input voltages from 2.2V to 12V DC, making it compatible with many commonly used DC motors.

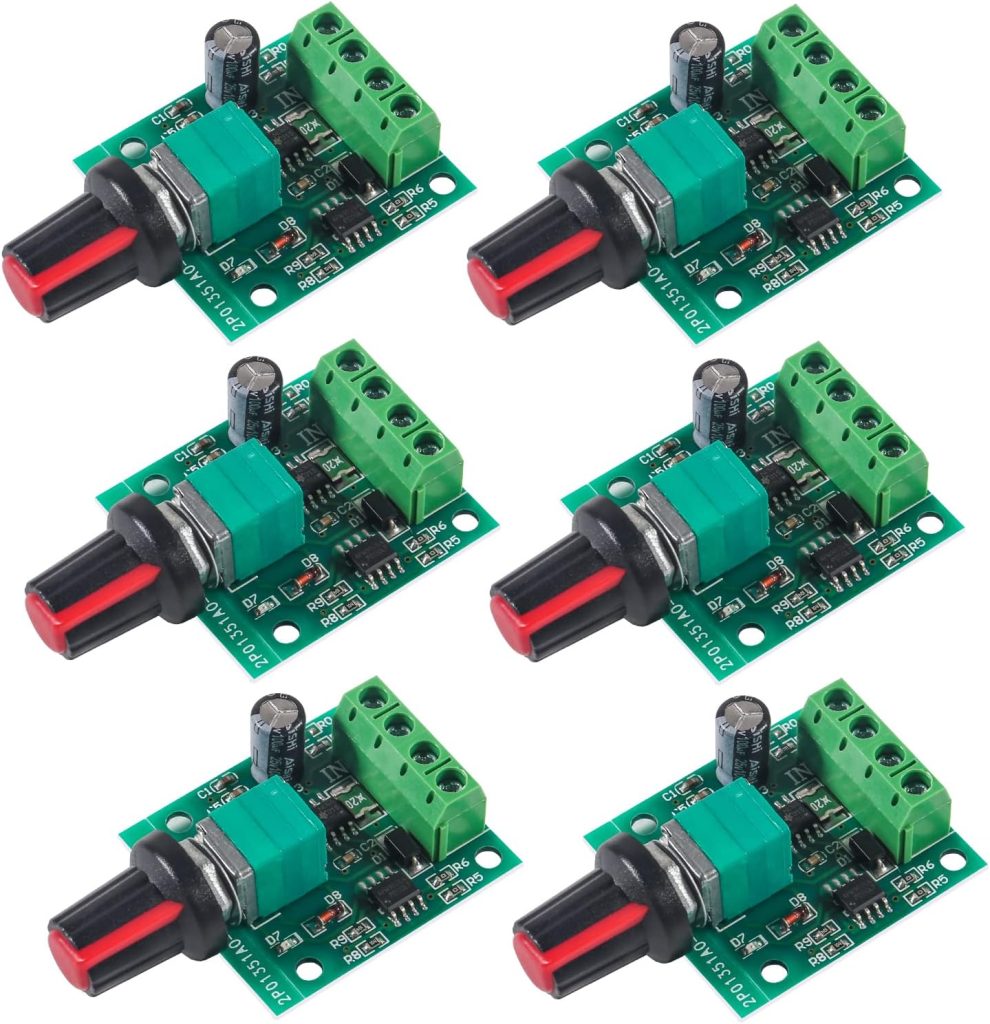

This product is supplied as a 6-piece set, which makes it particularly attractive for educators, experimenters, and technicians who work on multiple projects or require spare units.
Key Features of the Diitao Low Voltage DC Motor Speed Controller
Wide Input and Output Voltage Range
One of the most practical features of this DC motor speed controller PWM module is its voltage flexibility.
- Input power supply voltage: 2.2V – 12V DC
- Output voltage range: 1.8V – 12V DC
This wide range allows compatibility with motors rated at:
- 1.8V
- 3V
- 5V
- 6V
- 7.2V
- 12V
Such versatility makes the controller suitable for a broad range of low voltage applications without the need for additional converters.
PWM Speed Control Technology
The PWM DC speed controller uses pulse width modulation rather than linear voltage reduction. PWM works by rapidly switching the power on and off, adjusting the duty cycle to control the average voltage supplied to the motor.
Benefits of PWM control include:
- Higher efficiency
- Less heat generation
- Smoother motor operation
- Better torque retention at low speeds
This makes the Diitao 1803BK ideal for applications where stable and precise motor control is required.
Adjustable Speed Control Knob
The integrated speed control knob is one of the most user-friendly aspects of this controller. Instead of programming or complex wiring, users can simply turn the knob to adjust motor speed in real time.
Advantages of the speed control knob include:
- Quick manual adjustment
- Fine control over motor speed
- Ideal for testing and experimentation
- No additional control circuits required
This feature is especially useful in educational environments and mechanical experiments.
Compact and Lightweight Design
With a size of 32 × 32 × 15 mm (1.25 × 1.25 × 0.59 inches), the Diitao low voltage motor controller is extremely compact. Its small footprint allows it to fit easily into tight spaces, control panels, or portable devices.
The lightweight design also makes it suitable for mobile projects such as small robots or battery-powered devices.
Self-Recovery Fuse for Protection
Safety is a major concern when working with DC motors and power electronics. This controller includes a self-recovery fuse that automatically disconnects the circuit if the current becomes too high.
Key benefits of the self-recovery fuse:
- Protects the controller from damage
- Prevents overheating
- Automatically resets after cooling
- No need to replace traditional fuses
This feature adds an extra layer of reliability, particularly in experimental setups where load conditions may change.
Technical Specifications Table
Below is a detailed overview of the Diitao 1803BK low voltage PWM speed controller specifications:
| Specification | Details |
|---|---|
| Product Type | Low voltage DC motor speed controller |
| Model | 1803BK / 1803B |
| Control Method | PWM (Pulse Width Modulation) |
| Input Voltage | 2.2V – 12V DC |
| Output Voltage | 1.8V – 12V DC |
| Maximum Output Current | 2A |
| Recommended Continuous Current | ≤ 0.5A |
| Maximum Power | 30W |
| Dimensions | 32 × 32 × 15 mm |
| Speed Adjustment | Manual knob |
| Protection | Self-recovery fuse |
| Package Quantity | 6 pieces |
| Application Voltage Motors | 1.8V, 3V, 5V, 6V, 7.2V, 12V DC |
Performance Analysis
Smooth Speed Regulation
In real-world use, the Diitao PWM DC motor speed controller provides smooth and predictable speed changes. The PWM signal ensures the motor runs steadily across different speeds without sudden jumps or stalls.
This smooth operation is particularly noticeable when controlling small motors used in precision tasks such as model making or laboratory equipment.
Efficiency and Heat Management
Thanks to PWM technology, the controller operates efficiently with minimal heat generation. Even during extended operation at moderate loads, the module remains relatively cool, provided current limits are respected.
However, users should note that while the controller is rated for 2A maximum, continuous current should not exceed 0.5A for long-term reliability.
Reliability in Experimental Use
The self-recovery fuse proves especially useful during experimentation. If the motor draws excessive current due to overload or incorrect wiring, the fuse disconnects power automatically and restores operation once conditions normalize.
This reduces the risk of permanent damage and makes the controller forgiving for beginners.
Applications of the Diitao Low Voltage DC Motor Speed Controller
This adjustable PWM speed controller is suitable for a wide range of applications, including:
Mechanical Experiments
Students and hobbyists can use the controller to study motor behavior under different speeds and loads, making it a valuable educational tool.
Industrial Automation Prototypes
In low-power automation setups, the controller can regulate motors used in conveyors, feeders, or small actuators.
Robotics Projects
Robots often require precise motor speed control. The compact size and adjustable knob make this controller ideal for small robotic platforms.
DIY Electronics Projects
Makers and DIY enthusiasts can integrate the controller into custom devices, test rigs, or motorized tools.
Educational Kits and Labs
The simplicity and safety features make it well-suited for classrooms and training labs.
Important Usage Notes and Safety Guidelines
To ensure safe and reliable operation, users should follow these important guidelines:
- Do not use power supplies above 12V DC
- Do not connect directly to 220V AC household power
- Continuous current should not exceed 0.5A
- Ensure correct polarity when connecting power and motor
- Use appropriate wiring for current levels
Following these recommendations helps extend the life of both the controller and the motor.
Installation and Setup
Installing the Diitao DC motor speed controller is straightforward:
- Connect the DC power supply (2.2V–12V) to the input terminals
- Connect the DC motor to the output terminals
- Verify correct polarity
- Power on the circuit
- Adjust speed using the control knob
No programming or calibration is required, making it accessible to users of all skill levels.
Advantages and Limitations
Advantages
- Wide voltage compatibility
- Compact and lightweight design
- Easy manual speed adjustment
- Efficient PWM control
- Built-in self-recovery fuse
- Supplied as a 6-piece set
Limitations
- Not suitable for motors requiring more than 12V
- Continuous current must be limited
- Not designed for high-power industrial motors
Understanding these factors ensures the controller is used within its intended scope.
Comparison with Traditional Linear Controllers
Compared to linear DC speed controllers, the Diitao PWM speed controller offers:
- Higher efficiency
- Less heat dissipation
- Better torque at low speeds
- Smaller size
These advantages make PWM controllers the preferred choice for modern low voltage motor control.
Long-Term Value and Practical Use
The inclusion of six controllers in one package increases overall value, especially for users who frequently work on multiple projects. The durable design and protective fuse also contribute to long-term usability.
For hobbyists, educators, and technicians, this controller represents a cost-effective and reliable solution for low voltage motor control needs.
Final Verdict
The Diitao 6PCS Low Voltage DC Motor Speed Controller PWM DC 1.8V–12V 2A 30W 1803BK is a compact, efficient, and user-friendly solution for controlling low voltage DC motors. Its wide voltage range, PWM technology, adjustable speed knob, and built-in protection make it suitable for a variety of applications, from educational experiments to light industrial automation.
While it is not intended for high-current or high-voltage motors, within its designed limits it delivers consistent performance and excellent value. For anyone seeking a dependable low voltage PWM speed controller, this product is a practical and versatile choice.
