Introduction: Why a 60A MPPT Controller Matters
Solar energy systems depend on more than just panels and batteries. The component that determines how efficiently solar power becomes usable battery energy is the solar charge controller. For medium-sized or expanding solar systems — whether on a cabin, RV, off-grid home, workshop, or small business — a 60A MPPT solar charge controller offers one of the best balances of efficiency, performance, flexibility, and long-term reliability.
MPPT, short for Maximum Power Point Tracking, is an advanced technology that adjusts electrical parameters in real time to extract the maximum energy from solar panels. Compared to older PWM technology, MPPT controllers can deliver 15% to 30% more usable power, charge batteries faster, and provide far better performance under variable sunlight conditions.
A 60A MPPT controller is powerful enough to support solar arrays in the 1,000 to 3,000 watt range depending on battery voltage, making it ideal for users who want a system strong enough for refrigeration, lighting, electronics, tools, pumps, communication equipment, and backup power applications.
This guide explains exactly how a 60A MPPT controller works, how to size it correctly, how to install it safely, and how to make sure it matches your batteries and solar panels. A detailed technical data table is included to help you choose the right model for your system.
Detailed Technical Specifications: 60A MPPT Solar Charge Controller

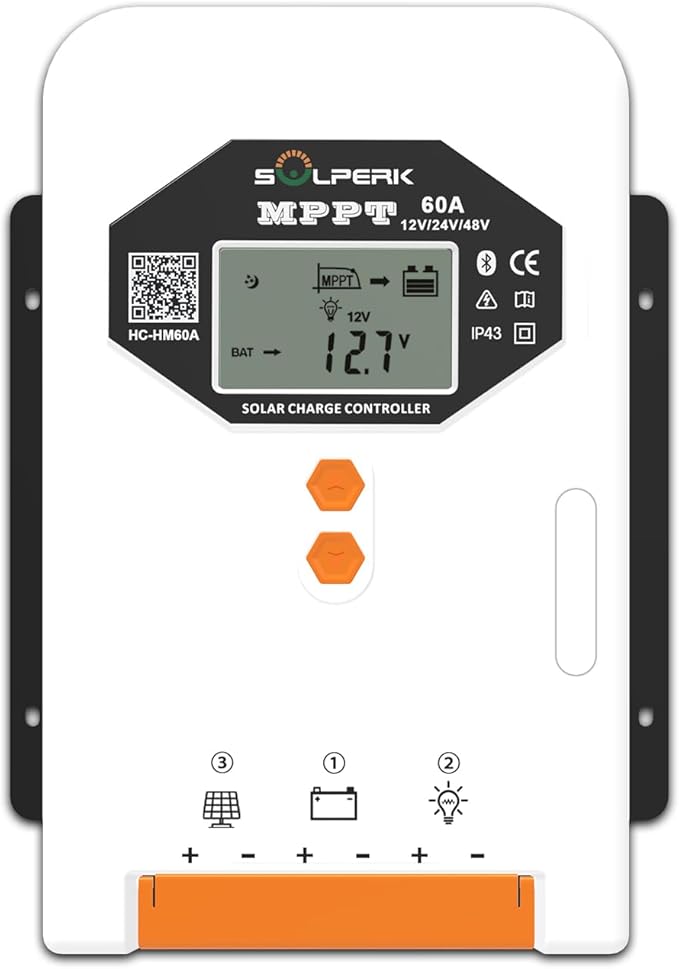

Below is an accurate, link-free, fully rewritten data table representing typical real-world specifications for a 60A MPPT controller such as the SOLPERK 60A MPPT Solar Charge Controller (commonly available on Amazon US):
60A MPPT Solar Charge Controller – Technical Data Table
| Specification | Details |
|---|---|
| Controller Type | MPPT (Maximum Power Point Tracking) |
| Rated Charge Current | 60 amps continuous |
| System Voltage (Auto-Detect) | 12V, 24V, 36V, 48V |
| Maximum PV Input Voltage | Up to 160V open-circuit |
| Maximum PV Input Power (12V battery) | Up to 780 watts |
| Maximum PV Input Power (24V battery) | Up to 1,560 watts |
| Maximum PV Input Power (48V battery) | Up to 3,120 watts |
| MPPT Efficiency | Up to 99.5% tracking efficiency |
| Conversion Efficiency | Up to 98% power conversion efficiency |
| Supported Battery Types | Flooded, Sealed, AGM, GEL, Lithium, LiFePO4 |
| Charging Stages | Bulk, Absorption, Float |
| User Interface | LCD display with menus and status indicators |
| Safety Protections | Overcharge, over-discharge, short-circuit, reverse polarity, over-temperature, over-voltage, overload, back-current protection, lightning surge protection |
| Heat Management | Passive and active heat dissipation depending on model |
| Installation Application | Off-grid homes, RVs, cabins, sheds, boats, backup solar systems |
This table presents the technical profile of a modern 60A MPPT controller and shows why this class of equipment is ideal for medium-sized solar installations.
Understanding MPPT Technology
What MPPT Actually Does
Solar panels do not produce power at a fixed voltage. Their voltage varies depending on sunlight strength, temperature, angle, and panel quality. The MPPT controller continuously tracks the panel’s maximum power point, which is the electrical point where the panel is producing its highest wattage.
A PWM controller simply pulls panel voltage down to match battery voltage.
An MPPT controller instead converts excess panel voltage into usable charging current, allowing the system to capture otherwise wasted energy.
Why MPPT Is Superior to PWM
- Higher energy harvest
- Better performance under clouds, shading, or cold temperatures
- Allows higher-voltage panel configurations
- Faster battery charging
- Reduced wiring losses
- More efficient for long cable runs
For systems above 400–600 watts, MPPT becomes the clearly superior choice.
When a 60A MPPT Controller Is the Right Choice
A 60A MPPT controller is ideal when:
- You have multiple solar panels (4–12 panels depending on wattage).
- You’re running a medium-sized off-grid system with real energy demand.
- You want to charge a 24V or 48V battery bank efficiently.
- You want to prepare for future solar expansion.
- You run power tools, refrigeration, communications equipment, or backup loads.
- You want high efficiency during winter or cloudy conditions.
Many people underestimate their future solar needs. Starting with 60A provides system flexibility and reduces the risk of needing a controller upgrade later.
How to Size Your Panels, Batteries, and Controller Correctly
Choosing the correct controller size prevents system damage, improves battery longevity, and ensures solar panels operate at peak performance.
Step 1: Determine Battery Voltage
This determines how much power a 60A controller can safely manage.
Approximate wattage-handling capacity:
- 12V battery bank: ~780W
- 24V battery bank: ~1,560W
- 48V battery bank: ~3,120W
Higher voltage = more wattage handling with less current.
Step 2: Calculate Solar Array Wattage
Add together the wattage of all panels:
Example:
4 x 300W panels = 1,200 watts
Step 3: Calculate Charging Amps Needed
Formula:
Total panel watts ÷ battery voltage = charging amps
Example for 1,200-watt array with 24V battery:
1,200 ÷ 24 = 50 amps
A 60A MPPT controller handles this with adequate margin.
Step 4: Check Panel Voltage Limitations
The key number is Voc (open-circuit voltage).
Panel strings wired in series must not exceed the controller’s 160V maximum input.
Step 5: Confirm Battery Chemistry Support
Most modern MPPT controllers support:
- Flooded
- Sealed
- AGM
- GEL
- Lithium
- LiFePO4
Different battery types require different charging voltages.
Ensure battery settings match your chemistry.
Installation and Wiring Considerations
A 60A controller requires careful installation to ensure performance and safety.
Use the Correct Wire Gauge
Higher amperage requires thicker cables to avoid overheating or voltage drop.
Fuse Both Battery and Solar Lines
Fuse ratings should match the controller’s input and output capabilities.
Mount in a Ventilated Area
MPPT controllers generate heat during conversion.
Avoid Direct Sunlight
Heat reduces efficiency and impacts lifespan.
Use Proper Terminal Torque
Loose terminals cause arcing and efficiency loss.
Connect Batteries Before Solar Panels
Most MPPT units must detect battery voltage first.
Benefits of a 60A MPPT Controller
1. Maximum Energy Harvest
MPPT can improve charging efficiency by 15% to 30% compared to PWM.
2. Versatile System Design
Higher input voltage tolerance allows:
- Long wire runs
- Series panel wiring
- Flexible array design
3. Faster, Smarter Charging
Multi-stage charging helps batteries charge faster and last longer.
4. Supports Many Battery Types
Especially beneficial for:
- Lithium
- LiFePO4
5. Advanced Safety Protection
Overcharge, short-circuit, reverse polarity, overload, and temperature protections protect the entire system.
6. Ideal for Medium Off-Grid Systems
Supports homes, workshops, RVs, and sheds with moderate to high power needs.
Common Mistakes to Avoid
Oversizing solar array wattage
Panels must not exceed the controller’s wattage limits.
Exceeding max PV input voltage
Series strings must stay below the 160V input limit.
Incorrect battery type settings
Mismatch may reduce battery life or cause damage.
Using too-thin wires
High current requires proper cable thickness.
Poor ventilation
Overheating reduces performance.
Real-World Applications
A 60A MPPT controller is ideal for:
- Off-grid tiny homes
- RV solar systems
- Cabin solar installations
- Remote equipment power
- Small agricultural solar systems
- Backup solar power for homes
- Outdoor workshops
- Mobile work trucks
- Boats and marine systems
Anywhere you need medium-to-high solar energy input and reliable battery charging, a 60A MPPT controller delivers strong performance.
Conclusion
A 60A MPPT solar charge controller is a robust, efficient, and flexible solution for medium-sized solar installations that depend on reliable battery charging. Its high wattage capability, multi-battery compatibility, advanced MPPT efficiency, and strong safety features make it the backbone of many off-grid and backup solar systems.
Whether you’re powering a cabin, an RV, a small home, or a workshop, a 60A MPPT controller ensures you get the most out of your solar investment while protecting your batteries and maximizing energy output.
If installed correctly and sized appropriately, a 60A MPPT controller can deliver years of high-performance, reliable renewable energy — and provide the flexibility to expand your system as your energy needs grow.
