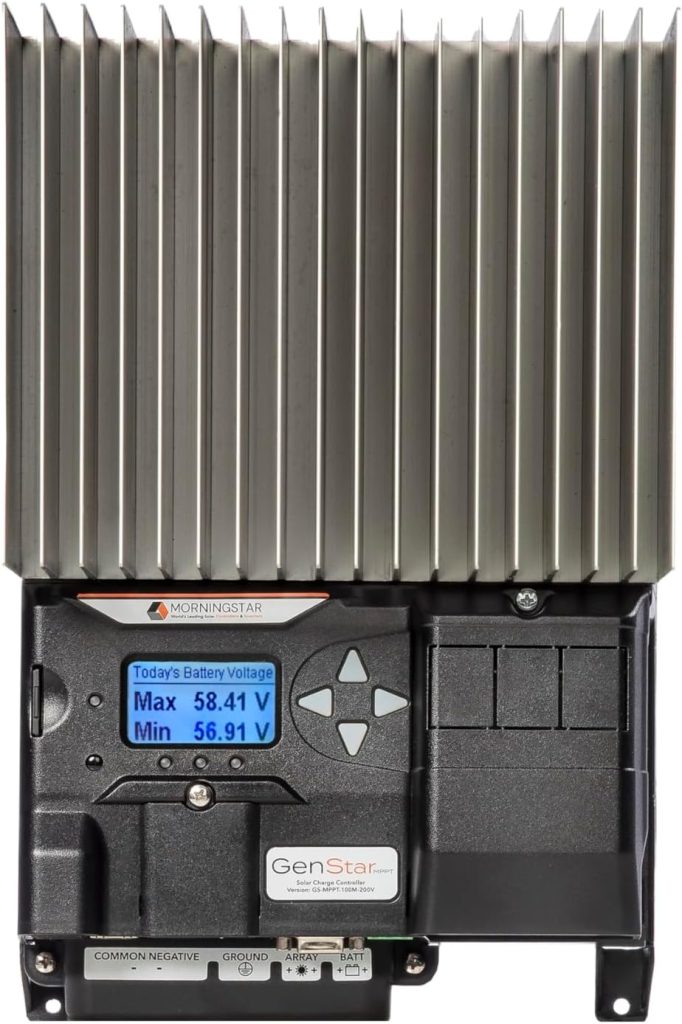

In the world of off-grid solar power and renewable energy systems, choosing the right charge controller is critical to solar panel system efficiency, battery longevity, and system reliability. The Morningstar GenStar 60A MPPT Solar Charge Controller w/ Meter (model GS-MPPT-60M-200V) stands out as a premium, intelligent solar regulator designed for advanced DC solar applications. Built with U.S. engineering and proven industry reliability, this controller is optimized for 12V, 24V, 36V, and 48V battery banks, including both lead-acid and lithium chemistries.
Below we present a deep dive into this product, comprehensive features, accurate specifications, comparison tables, and real-world insights.
Introduction: Why Solar Charge Controller Selection Matters
In any solar power setup, the solar charge controller sits between the solar arrays and the battery bank. Its primary roles are to:
- Maximize energy harvest from the solar panels,
- Protect batteries from over-charging or damaging voltage conditions,
- Provide system data and diagnostics, and
- Enable advanced control functions within a solar energy system.
Understanding what separates basic controllers from premium systems helps you select the right piece of hardware. The Morningstar GenStar 60A MPPT Solar Charge Controller w/ Meter is designed for serious solar users and professionals who need high efficiency, expandability, and robust protections for mission-critical systems.
Key Features Overview
The following section highlights the defining features of the Morningstar GenStar MPPT Solar Charge Controller (GS-MPPT-60M-200V).
1. True MPPT Efficiency for Optimal Solar Power Conversion
Maximum Power Point Tracking (MPPT) technology improves the amount of power extracted from solar panels under all conditions — especially in variable weather or partial shading. The GenStar MPPT features peak efficiencies of up to 99%, among the highest in the industry, and operates with a low self-consumption design that preserves battery power. A fanless configuration provides exceptional reliability and longevity in off-grid environments.
2. Broad Voltage Compatibility (12/24/36/48V)
The GS-MPPT-60M-200V supports a wide voltage range — 12V through 48V systems — making it highly versatile for most residential and off-grid installations. It handles nominal battery voltages while adapting to different panels and loads, which is especially useful for hybrid or expandable solar setups. Morningstar Corporation
3. High Input Capacity and Power Handling
With a maximum photovoltaic (PV) open circuit voltage (Voc) of 200V, the controller is suitable for larger solar arrays. It can support substantial solar input while controlling battery charge current up to 60 amps. Depending on the battery voltage chosen, this translates to significant power delivery capability:
| Battery Voltage | Max. PV Input Power |
|---|---|
| 12V | 1200W |
| 24V | 2400W |
| 48V | 4800W |
These ratings demonstrate the controller’s ability to handle medium to large-sized solar installations. Morningstar Corporation
4. Built-In Meter and System Monitoring Capabilities
Unlike basic controllers, the GS-MPPT-60M-200V includes an integrated meter for real-time system monitoring. Users can view crucial operating data such as battery voltage, charging current, and energy flow — directly from the controller interface or remote monitoring tools where available. Morningstar Corporation
5. Intelligent Expansion via ReadyBlock System
One of the standout innovations of the GenStar platform is the ReadyBlock Expansion System. Using a proprietary ReadyRail architecture, the controller allows snap-in modules that enhance system functionality without external add-ons or complex wiring. Available modules include:
- ReadyShunt: Adds comprehensive battery metering, including state-of-charge (SOC) and energy in/out measurements.
- ReadyBMS: Enables full battery management system (BMS) integration for smart charging and protective battery control.
- ReadyRelay: Provides dry contact signaling and advanced load control for automation.
This modular expandability helps future-proof your solar system investment by enabling features only when needed.
6. Built-In Protections for Longevity and Safety
Safety is a crucial aspect of solar electronics. The Morningstar GenStar MPPT Controller incorporates extensive electronic protections such as:
- Cold-weather lithium “fold back” circuitry to avoid charging damage in low temperatures,
- Short-circuit protection,
- Reverse polarity protection, and
- Over-current safeguards.
These built-in protections help prevent wiring errors and electrical overloads from damaging the controller or batteries.
7. Remote Temperature Sensor Included
Battery charging efficiency and safety depend on accurate temperature data. This controller includes a remote temperature sensor (RTS) to ensure the controller accurately reads the battery temperature — especially valuable when the controller and battery are separated by any distance.
8. U.S. Design and Global Reliability
Morningstar Corporation, established in 1993, is widely recognized for producing some of the most reliable solar charge controllers in the world. The GenStar series benefits from decades of engineering refinement and is backed by strong manufacturing quality and a 5-year warranty.
Detailed Technical Specifications
Below is a full breakdown of the key specifications for the Morningstar GenStar MPPT 60A Controller:
| Feature | Specification (GS-MPPT-60M-200V) |
|---|---|
| Maximum Battery Charging Current | 60 Amps |
| Max PV Open Circuit Voltage (Voc) | 200 Volts |
| Nominal Supported Voltages | 12V, 24V, 36V, 48V |
| Maximum Output Power @ 12V | 800W |
| Max PV Input Power @ 12V | 1200W |
| Maximum Output Power @ 24V | 1600W |
| Max PV Input Power @ 24V | 2400W |
| Maximum Output Power @ 48V | 3200W |
| Max PV Input Power @ 48V | 4800W |
| Peak Efficiency | 99% |
| Load Current Capability | 30A |
| Self-Consumption | < 3 Watts |
| Operating Temperature | -30°C to +45°C (derates to 60°C) |
| Built-In Meter | Yes |
| Protections | Cold-weather fold back, short circuit, reverse polarity, over-current |
| Warranty | 5 Years |
Specifications are based on manufacturer data and reflect typical product capabilities.
Practical Use Cases and Installation Tips
Best System Configurations
The GS-MPPT-60M-200V is ideal for:
- Off-grid cabins or homes with 48V battery banks,
- Medium solar arrays producing up to ~3200W peak power,
- Systems requiring advanced data and telemetry,
- Installations where efficient battery health and longevity are priorities,
- Setups that may expand over time with ReadyBlock accessories.
Battery Compatibility and Settings
This controller supports both lithium-ion and lead-acid battery chemistries, but correct programming is necessary when configuring for different battery types to ensure optimal charge profiles.
PV Array Planning
To remain within safe operating limits, array configurations should respect the 200V Voc limit and be planned according to battery bank voltage and charger capacity. Oversizing a PV array is technically possible due to MPPT characteristics, but system design must consider PV input vs controller limitations.
Comparison With Other Controllers
While thorough comparisons require specific competitors and models, the GenStar MPPT series competes strongly with premium products due to:
- Higher configurability through modular expansion,
- Advanced built-in communications and network capabilities,
- Exceptional efficiency ratings,
- Broad operating temperature ranges for outdoor installations.
Controllers in a similar price range often lack ReadyRail modular expansions or integrated network monitoring.
Final Thoughts: Is It Worth It?
For solar system designers, installers, and serious DIY renewable energy builders, the Morningstar GenStar 60A MPPT Solar Charge Controller w/ Meter (GS-MPPT-60M-200V) delivers:
- High charging efficiency and robust power handling,
- Flexible battery voltage support,
- Comprehensive onboard protections,
- Expandable capabilities through ReadyBlocks, and
- Premium engineering pedigree with a solid warranty.
Its versatility and future-ready design make it suitable for systems that require long-term performance and reliability. Whether you are upgrading from a basic PWM controller or building a new off-grid setup, this controller offers strong value when compared to bare-bones alternatives.
