When it comes to controlling high-performance motors, precision and reliability are critical. Whether you’re working on robotics, RC vehicles, or other advanced projects, using the right controller can significantly enhance performance and extend the lifespan of your equipment. One such product that stands out in the market for its versatility, power, and ease of use is the LYWS High-Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC. This brushless ESC (electronic speed controller) is designed for use with brushless DC motors, offering an efficient solution for driving high-speed motors with Hallless configuration.
In this in-depth review, we will explore all the key features, specifications, applications, and performance capabilities of the LYWS Brushless Controller ESC. Whether you’re a hobbyist, DIY enthusiast, or a professional looking for a high-quality motor controller, understanding the features of this high-speed controller will help you make an informed purchase decision.
What is the LYWS High-Speed Three-Phase DC Brushless ESC?

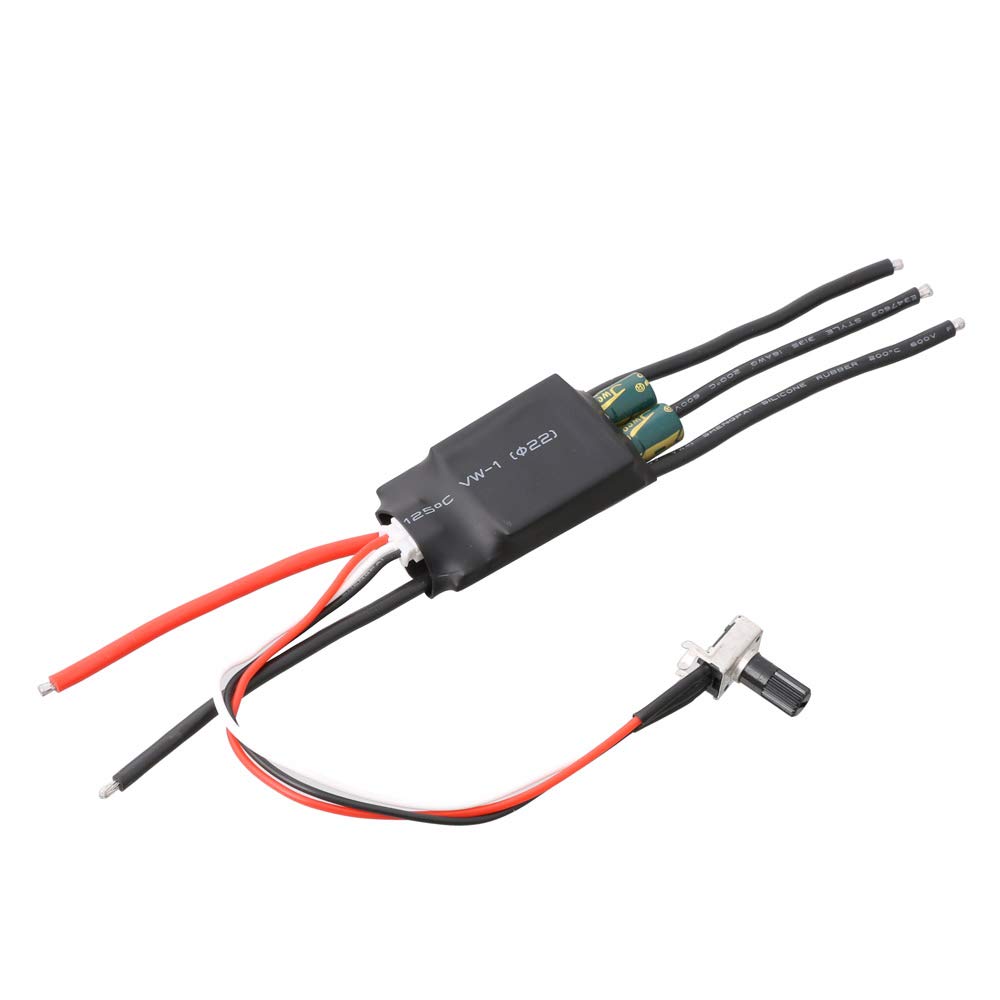

The LYWS High-Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC is a specialized electronic speed controller designed to drive brushless DC (BLDC) motors. Unlike traditional brushed motors, brushless motors offer greater efficiency, reduced wear and tear, and a longer lifespan, making them ideal for high-performance applications. The LYWS ESC supports Hallless motors, meaning it can function without the need for Hall sensors, which simplifies wiring and increases reliability.
This brushless ESC is designed to control the speed of the motor, regulate current flow, and ensure smooth operation even under varying load conditions. With a working voltage range of 6.5-24V and a rated current of 15A, it is suitable for a wide range of applications that require efficient motor control. It also offers maximum speeds of up to 224,000 RPM (for a 2-pole motor), which is impressive for projects that demand high-speed performance.
Key Features of the LYWS High-Speed Three-Phase DC Brushless ESC
1. High-Speed Performance
One of the standout features of the LYWS Brushless ESC is its maximum speed capability. Depending on the number of poles in the motor, the ESC can support speeds as high as 224,000 RPM for a 2-pole motor. For motors with more poles, the maximum speed decreases as follows:
- 6-pole motor: 74,000 RPM
- 12-pole motor: 40,000 RPM
- 14-pole motor: 35,000 RPM
This high-speed performance is crucial for applications such as drones, RC vehicles, robotics, and other projects requiring precision control at high RPMs.
2. Versatile Voltage and Current Range
The LYWS ESC is designed to support motors within a working voltage range of 6.5-24V, making it highly versatile for various power sources. This wide voltage range ensures that it can be used in both low-voltage and higher-voltage applications, adding flexibility to its usage.
Additionally, the rated drive current of 15A allows the controller to drive motors efficiently under standard operating conditions. For enhanced cooling and handling of higher loads, users can connect a fan to the controller, allowing it to handle up to 30A of current, making it suitable for more demanding applications.
3. Hallless Operation for Simplicity
One of the unique features of this ESC is its Hallless design. Traditional BLDC controllers often rely on Hall sensors to determine the rotor position and synchronize the motor’s operation. However, Hall sensors can add complexity to the setup, especially when wiring and adjusting configurations.
The LYWS controller eliminates the need for Hall sensors, allowing it to work seamlessly with Hallless motors. This not only reduces wiring complexity but also increases the overall reliability of the system, as there are fewer components that can fail. For users who want a simpler setup without compromising motor performance, the Hallless operation is a significant advantage.
4. Integrated Potentiometer for Speed Adjustment
The LYWS ESC comes equipped with an integrated potentiometer, a small device that allows users to manually adjust the motor speed. This is incredibly useful in applications where real-time adjustments are necessary. The potentiometer can be used to fine-tune the motor’s output, making it easier to optimize performance in different scenarios. Whether you’re running a RC car, a robotic arm, or an electric fan, the ability to control the speed directly via the potentiometer gives you more flexibility.
5. Robust Protection Features
The LYWS ESC is designed with several protection mechanisms to ensure the safety of both the controller and the connected motor. These include:
- Overcurrent Protection: Prevents damage to the controller and motor in the event of excessive current.
- Overvoltage Protection: Safeguards the system from potential damage due to voltage spikes.
- Undervoltage Protection: Ensures the controller shuts down safely when the input voltage is too low, preventing system damage.
These protective features make the LYWS ESC a reliable choice for long-term use, as they prevent common issues like overheating, overloading, and voltage fluctuations.
6. Easy Wiring and Installation
The LYWS ESC is designed for easy installation, even for users who may not have extensive experience with motor controllers. The wiring diagram is straightforward, and the ESC comes with clear instructions to ensure that users can connect it properly. For optimal performance, it is essential to connect the wires correctly to avoid potential damage to the ESC or motor.
Specifications of the LYWS High-Speed Three-Phase DC Brushless ESC
To better understand the capabilities of the LYWS Brushless ESC, let’s take a closer look at its specifications:
| Specification | Details |
|---|---|
| Model Type | LYWS High-Speed Three-Phase DC Brushless ESC |
| Motor Type | Brushless DC (BLDC) |
| Input Voltage Range | 6.5V – 24V |
| Rated Drive Current | 15A (Can handle 30A with fan for cooling) |
| Maximum Speed | 224,000 RPM (for 2-pole motor) |
| 74,000 RPM (for 6-pole motor) | |
| 40,000 RPM (for 12-pole motor) | |
| 35,000 RPM (for 14-pole motor) | |
| Control Type | Hallless (no Hall sensors required) |
| Speed Adjustment | Integrated Potentiometer |
| Protection Features | Overcurrent, Overvoltage, Undervoltage Protection |
| Cooling Requirements | Optional fan for additional cooling (up to 30A) |
| Application | RC vehicles, robotics, drones, electric motors |
| Size (LxWxH) | 5.5cm x 4.5cm x 2cm |
The LYWS ESC provides an impressive combination of features, making it suitable for a wide range of applications, from high-speed hobbyist projects to more demanding commercial uses.
Performance and Efficiency
The LYWS High-Speed Three-Phase DC Brushless ESC is built to deliver exceptional performance and efficiency. Its ability to handle speeds of up to 224,000 RPM makes it ideal for high-speed applications, where other ESCs might struggle. Additionally, the Hallless design eliminates the need for extra sensors and simplifies wiring, reducing the risk of failure points in the system.
The protection features ensure that the controller is safeguarded against common issues, like current spikes or voltage fluctuations. This makes it a reliable option for long-term use, even in high-stress conditions.
The integrated potentiometer gives users direct control over the motor speed, offering a user-friendly interface to fine-tune performance in real-time. Whether you’re running a fast-moving RC vehicle or a more controlled robotic system, the LYWS ESC provides the flexibility needed to optimize your setup.
Conclusion
The LYWS High-Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC is a powerful and versatile controller that provides excellent performance for a wide range of applications. With its high-speed capabilities, Hallless operation, integrated potentiometer, and robust protection features, it offers a complete motor control solution that is both reliable and user-friendly.
Whether you’re working on RC vehicles, robotics, or other motor-driven projects, the LYWS ESC ensures smooth and efficient performance while keeping the system safe from common electrical issues. If you need a high-performance ESC for your brushless DC motor, the LYWS High-Speed Controller is an excellent choice.
