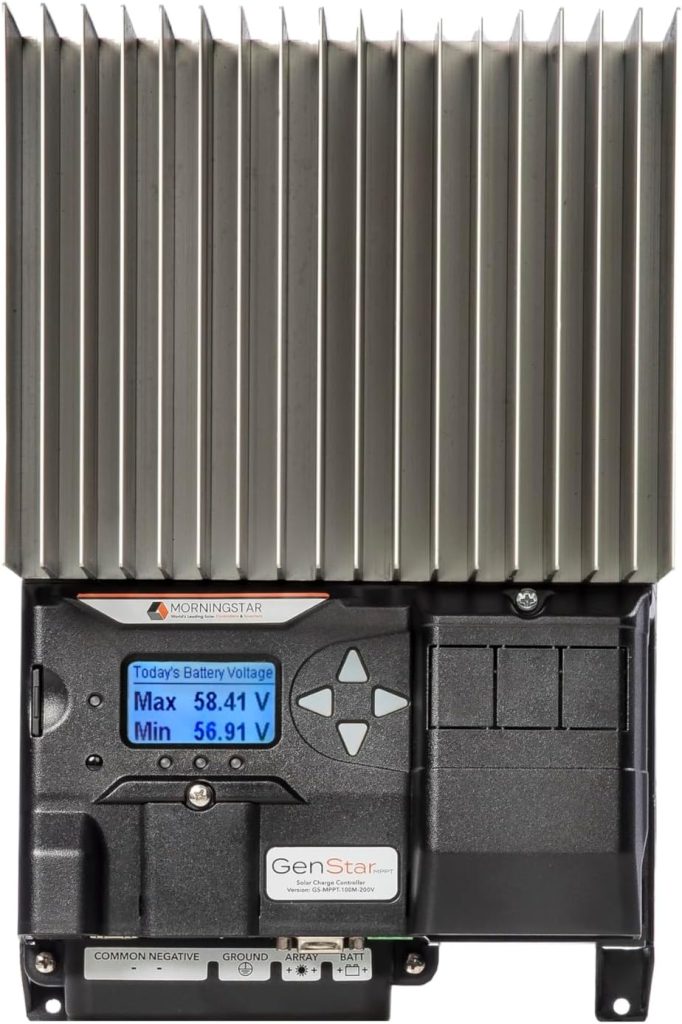

The Morningstar GenStar 100A MPPT Solar Charge Controller (GS-MPPT-100M-200V) represents one of the most advanced and versatile solar charge controllers available today. Designed for off-grid homes, backup systems, cabins, commercial installations, industrial power applications, telecommunications systems, mobile solar arrays, and battery-centric renewable-energy configurations, this controller brings together high charging current, intelligent management, modular expansion, and best-in-class reliability.
This article breaks down the full specifications, features, battery support, protections, performance advantages, and real-world use cases of the GenStar 100A MPPT, and explains why it stands as a flagship controller for demanding solar power systems.
Morningstar GenStar 100A MPPT Product Specifications
Below is an accurate technical overview of the GS-MPPT-100M-200V model:
| Specification | Detail |
|---|---|
| Model | GS-MPPT-100M-200V |
| Brand | Morningstar Corporation |
| Material | Aluminum |
| Color | Black |
| Charge Current Rating | 100 Amps |
| Supported Battery Voltages | 12V, 24V, 36V, 48V |
| Battery Operating Range | 8V–72V DC |
| Battery Types Supported | Lead-Acid, Lithium, NiCd, Custom chemistries |
| Maximum PV Open-Circuit Voltage (Voc) | 200V |
| Peak Efficiency | 99% |
| Self-Consumption | Less than 3 Watts |
| Load Control Output | 30 Amps |
| Display Type | LCD/LED Digital Meter |
| Expansion System | ReadyBlock Modules (ReadyShunt, ReadyBMS, ReadyRelay) |
| Communication Interfaces | RS-485, CAN, Ethernet (through expansion) |
| Operating Temperature Range | –30°C to +45°C at full power (derates to 60°C) |
| Item Weight | 16.5 pounds |
| Warranty | 5-Year Manufacturer Warranty |
| Country of Design | USA |
These specifications show a controller designed to handle significant solar array sizes, substantial battery banks, and long-term stress in harsh environments.
Understanding MPPT and Why the GenStar 100A Matters
To appreciate the value of the GenStar series, it’s important to understand how MPPT (Maximum Power Point Tracking) works.
Solar panels have a voltage and current at which they produce maximum power. Environmental conditions such as temperature, sunlight intensity, and shading cause that optimal point to shift throughout the day. MPPT technology constantly tracks the changing optimal point and converts excess voltage into additional charging current, enabling far more efficient energy capture.
Typical improvements over simpler PWM controllers can range from 20–30% or more in real-world performance. With a high-capacity 100A charging output and a 200V solar input limit, the GenStar system is built to handle large arrays and extract maximum power from them under all conditions.

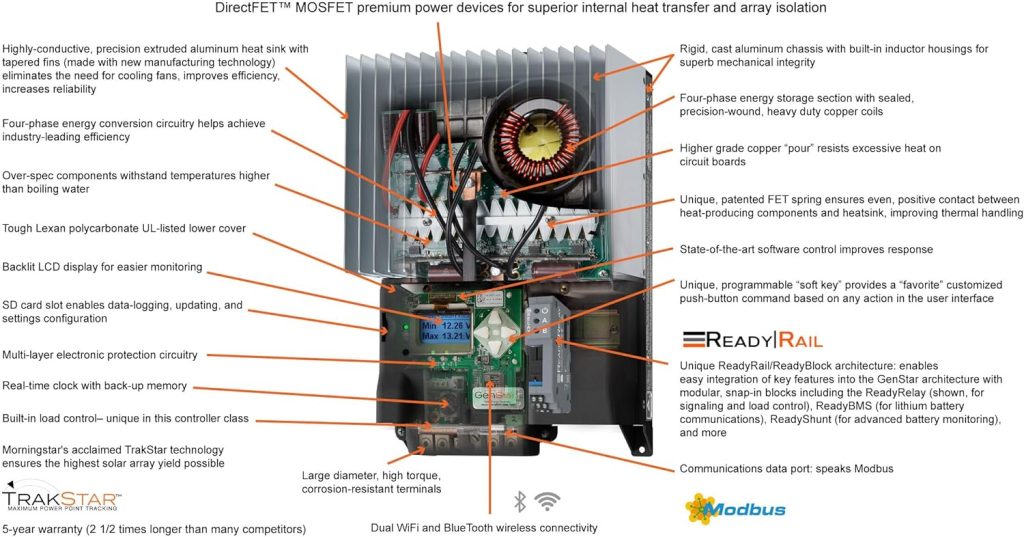

Key Features of the Morningstar GenStar 100A MPPT Controller
The GenStar platform incorporates Morningstar’s most advanced engineering solutions. Below are the defining features that separate this controller from typical MPPT units.
1. Best-in-Class 99% Efficiency
Efficiency determines how much energy from the solar panels ultimately reaches the battery. Morningstar’s high-performance circuitry, advanced optimization algorithms, and fanless thermal management keep efficiencies exceptionally high.
- Less energy wasted as heat
- More usable power per watt of solar installed
- Better battery charging behavior during partial sunlight and low-temperature conditions
Few controllers on the market reliably reach the 99% peak efficiency range, making this a standout characteristic.
2. Extremely Low Self-Consumption
A system that consumes power when idle reduces total battery life. The GenStar consumes less than 3 watts, preserving energy when solar input is unavailable, such as at night or during storms. This matters particularly for off-grid and remote installations where every watt counts.
3. Wide Battery Compatibility (LA, Li, NiCd, Custom)
The GenStar 100A supports:
- Lead-Acid: Flooded, AGM, Gel
- Lithium (LiFePO4 and others)
- Nickel-Cadmium
- Custom chemistries through programmable settings
This makes it suitable for nearly any solar application, from traditional deep-cycle lead batteries to modern lithium modules with advanced battery management systems.
4. High Voltage Solar Input (Up to 200V Voc)
A 200-volt solar input limit offers numerous advantages:
- Allows use of long panel strings
- Reduces cable length and wiring costs
- Improves efficiency during cold-weather voltage spikes
- Enables large solar arrays without the need for complex combiner setups
This flexibility gives installers much more freedom in designing efficient arrays.
5. Powerful 30A Load Control Output
The controller includes a built-in load output rated for 30 amps, allowing direct connection of DC loads such as:
- Lighting systems
- Water pumps
- Security systems
- Communications equipment
- Industrial monitoring and control devices
The built-in load management features can automatically disconnect loads to protect battery health.

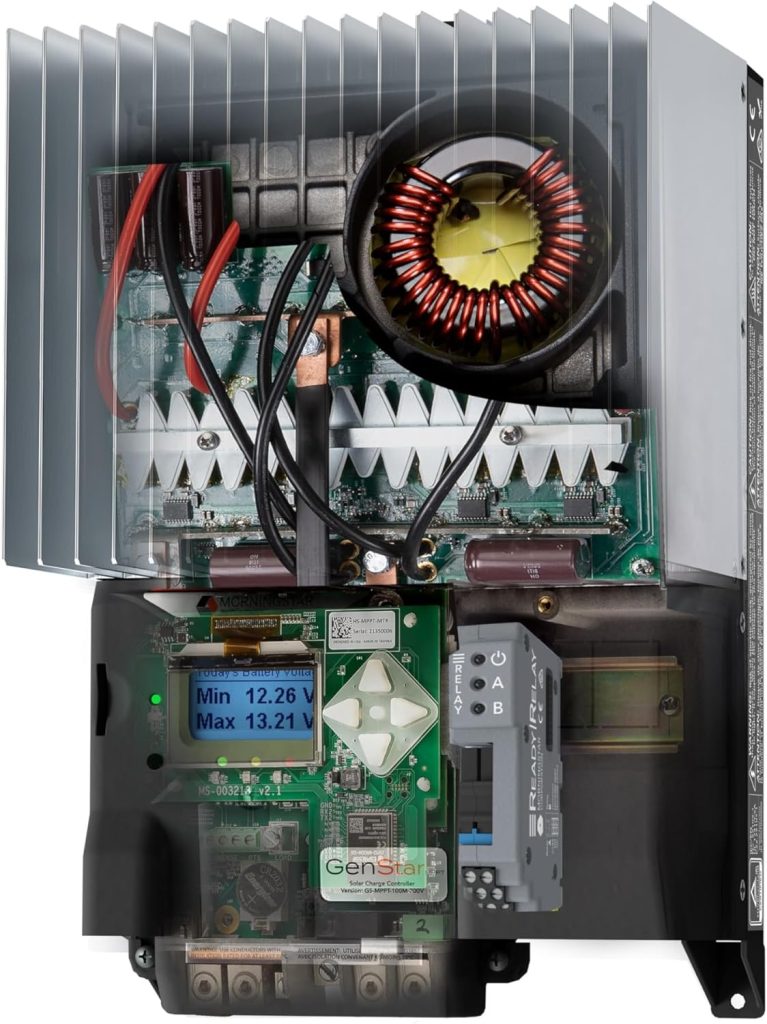

6. Fanless Design for Maximum Reliability
The GenStar uses passive cooling through its heavy-duty aluminum body rather than fans. This eliminates one of the most common points of failure in charge controllers.
Benefits include:
- Longer service life
- No dust ingress from fans
- Silent operation
- Improved reliability in high-temperature environments
Morningstar is known for extremely low hardware failure rates, and the fanless design is a major contributor.
7. Intelligent Electronic Protections
The controller includes layers of protection against common failures and wiring mistakes:
- Reverse polarity protection
- Short-circuit protection
- Overcharging protection
- Overcurrent protection
- Reverse current protection
- Cold-weather lithium charge fold-back
- Temperature compensation
These protections make the controller durable in unpredictable field conditions.
8. ReadyBlock Expansion System
One of the most advanced aspects of the GenStar platform is the ReadyRail / ReadyBlock modular expansion. Users can attach specialized modules that integrate directly into the hardware and software environment.
ReadyBlock Modules Include:
- ReadyShunt
Provides complete battery monitoring: state of charge, amp hours, live current, historical usage, and more. - ReadyBMS
Adds full control and communication for lithium BMS systems, improving safety and battery health. - ReadyRelay
Handles signaling, automated load control, relays, alarms, and system automation.
This modularity allows the GenStar 100A to grow with the system, making it future-proof and customizable.
9. Full Communication and Data Logging Support
The controller includes multiple communication pathways:
- CAN bus
- RS-485
- Ethernet (via expansion)
- Local display monitoring
- Mobile app compatibility
Users can access live data, adjust settings, record system performance, and monitor battery behaviors in real time. This is especially valuable for off-grid homes, RV owners, telecom towers, and industrial systems requiring dependable remote access.
Why the Morningstar GenStar 100A MPPT Is Ideal for Demanding Solar Installations
The combination of performance, expandability, and ruggedness makes the GenStar 100A ideal for:
- Off-grid homes
- Commercial buildings
- Agricultural installations
- RV and trailer power systems
- Marine applications
- Remote telecom towers
- Scientific monitoring stations
- Emergency response trailers
- Mission-critical government or industrial solar systems
Users benefit from high reliability, long lifespan, and professional-grade power management capabilities.
Practical Advantages in Real-World Use
1. Supports Large-Scale Solar Arrays
With a 200V Voc input limit and 100A charging, users can connect large and efficient solar strings to charge big battery banks quickly and reliably.
2. Compatible with Modern Lithium Batteries
Many lithium batteries require communication or special charging profiles. The ReadyBMS module lets the GenStar interact directly with the BMS for safer and more efficient charging.
3. Built for Harsh Environments
Its robust thermal management, wide operating temperature range, and durable aluminum body make it suitable for deserts, mountains, tropical climates, and industrial sites.
4. Ideal for Upgrade Paths
Because of ReadyBlock expansion, users can start with a simple setup and later add advanced features such as system automation, relay controls, or enhanced metering.
Installation Considerations and Best Practices
While the GenStar controller is highly capable, proper installation is essential.
1. Follow Proper Connection Order
- Connect battery first
- Then connect solar panels
- Finally connect loads
This prevents surges and protects the electronics.
2. Use Correct Wire Gauge
At 100 amps, thick cables are required to prevent overheating, voltage drop, and fire hazards.
3. Ensure Proper Ventilation
Even with a fanless design, good airflow improves thermal performance.
4. Never Exceed 200V Voc
Panel strings must stay under the 200V open-circuit limit, even during cold weather when voltage rises.
5. Use Temperature Sensors for Accurate Charging
The included remote temperature sensor allows precise charging adjustments that increase battery lifespan.
Conclusion: Is the Morningstar GenStar 100A MPPT Worth It?
The Morningstar GenStar 100A MPPT Solar Charge Controller with Meter (GS-MPPT-100M-200V) is one of the most advanced solar charge controllers available. Its high efficiency, advanced protections, modular expansion capabilities, and rugged US-engineered design place it in a premium class of professional-grade solar hardware.
With its 100A charging capacity, 200V solar input limit, intelligent lithium support, 30A load control, and ReadyBlock modular upgrades, it is perfect for users who need a long-lasting and highly capable controller that can power everything from off-grid homes to complex industrial systems.
If you want maximum efficiency, long-term reliability, and the ability to expand your system over time, the GenStar 100A MPPT stands as a top-tier choice.
