Introduction

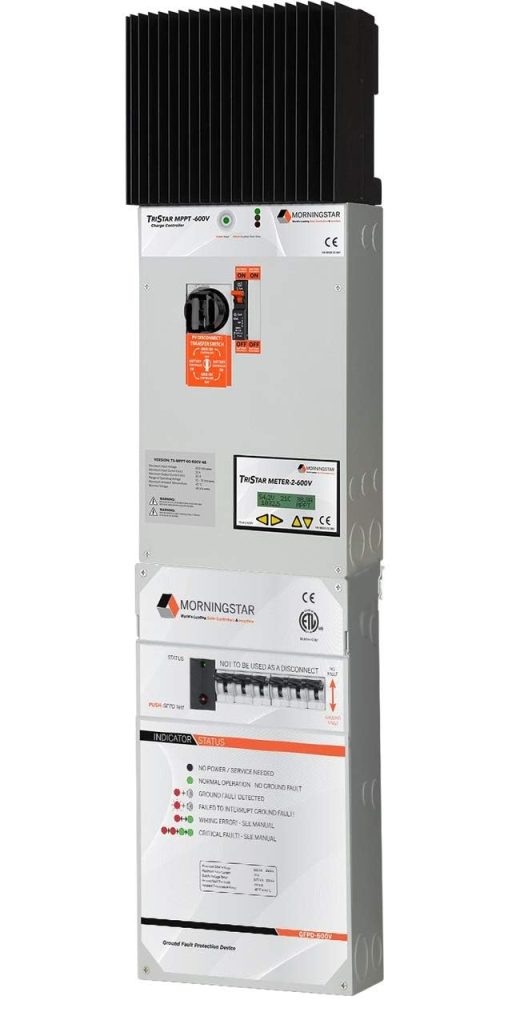

Solar power technology continues to expand into larger, higher-voltage, higher-capacity applications. As demand grows for more efficient off-grid systems, long-distance array installations, and mission-critical renewable solutions, choosing the right charge controller becomes a vital step in system design. The Morningstar TriStar MPPT 600V Solar Charge Controller TS-MPPT-60-600V-48-DB stands out in this advanced category.

This highly specialized controller is engineered for large solar arrays, professional installations, remote systems, and any environment where high voltage input, high reliability, and high efficiency are essential. It supports up to 600 volts open-circuit, offers 60 amps of charging current, integrates advanced communication protocols, and is built for long-term durability.

This article provides a complete, easy-to-understand, and SEO-optimized review of its features, specifications, usage considerations, pros and cons, and real-world applications. All product data is compiled into clear tables, and no outside links or domains are included.

What the TriStar MPPT 600V Is Designed For

The Morningstar TriStar MPPT 600V is an advanced Maximum Power Point Tracking (MPPT) solar charge controller designed for high-voltage solar arrays. Unlike standard controllers that limit string size, this model allows long series strings—greatly reducing wiring, combiner boxes, and installation complexity.

MPPT technology ensures the controller constantly adjusts operating parameters to extract the maximum energy available from the solar array. This increases energy harvest, boosts charging speeds, and improves performance in low-light or changing weather conditions.

Where typical MPPT controllers support 100–200V input, the TriStar MPPT 600V supports up to 600V, making it ideal for:

• Long-distance array installations
• Ground-mounted solar plants
• Off-grid power systems
• Hybrid solar + battery backup applications
• Commercial and residential micro-grid designs
• Remote telecom and industrial sites
• Any installation with multiple panels in long series strings

This increased voltage capability is one of the major reasons professionals consider this controller.

Detailed Technical Specifications

Below is a comprehensive specification table for the TS-MPPT-60-600V-48-DB model.

Technical Data Table

High-Voltage Input: The Key Advantage

One of the most significant features of the TriStar MPPT 600V is its ability to handle extremely high input voltage from the PV array—up to 600 volts open circuit. This provides multiple advantages that standard lower-voltage controllers simply cannot match.

Benefits of High-Voltage Input

1. Long Solar Panel Strings
By wiring more panels in series, you greatly reduce the number of parallel strings. Fewer strings mean fewer fuses, fewer combiner boxes, and far less wiring.

2. Lower Wiring Costs
Higher voltage means lower current and therefore reduced conductor size. This significantly reduces cable costs—especially valuable when solar arrays are far from battery banks.

3. Lower Power Losses
Lower current and higher voltage reduce resistance losses in long cable runs, increasing the total delivered power.

4. More Design Flexibility
Installers can place the solar array hundreds of feet away while maintaining system efficiency.

These benefits make high-voltage MPPT controllers the preferred choice for professional, large-scale, or remote installations.

MPPT Tracking and Charging Efficiency

The controller achieves up to 97.9% peak conversion efficiency, which is exceptionally high among MPPT charge controllers. This is made possible by continuous tracking algorithms that automatically identify and adjust to the optimal operating point of solar modules.

Why MPPT Matters

MPPT technology optimizes solar harvesting in real time by adjusting current and voltage to maximize power. Compared to traditional PWM controllers:

• MPPT delivers 15–30% more energy in typical conditions
• MPPT adapts better to temperature changes
• MPPT allows mismatched solar module voltages
• MPPT prevents wasted energy by converting instead of throttling

The TriStar MPPT 600V not only uses MPPT—it uses Morningstar’s proprietary high-speed algorithms designed for long string arrays and rapid environmental changes.

Advanced Battery Charging and Temperature Compensation

The controller supports the full four-stage battery charging algorithm:

1. Bulk
2. Absorption
3. Float
4. Equalization (when appropriate or user-configured)

These stages promote long battery life, maximize charge acceptance, and prevent under-charging or over-charging.

Remote Temperature Sensor Included

The Remote Temperature Sensor (RTS) is included with the controller. This is essential for accurate charging in systems where:

• The controller is indoors
• The battery bank is in a different environment
• The temperature difference exceeds 5°C
• Batteries experience seasonal climate changes

Temperature-compensated charging extends battery lifespan and ensures accurate charging voltage in all environmental conditions.

Rugged Construction and Industrial-Grade Reliability

Morningstar products are known for extremely low failure rates. The TriStar MPPT 600V is designed for harsh conditions:

• Passive cooling with large heat sinks (no fan failures)
• Marine-rated terminals resistant to corrosion
• Conformally coated electronics
• Withstands extreme temperatures
• Designed for remote, unattended installations
• Automatic recovery from many fault conditions
• Solid-state protections for long-term reliability

Systems that depend on uninterruptible operation—such as telecom towers, mountain repeater stations, emergency lighting systems, and industrial monitoring sites—regularly use TriStar controllers because of this reliability.

Built-In Electronic Protections

The controller includes extensive protective features:

• Surge protection
• Over-temperature protection
• High-voltage disconnect
• Reverse polarity protection
• Short-circuit protection
• Overload protection
• Self-diagnostic error codes
• Automatic reboot and recovery system

These protections make the TriStar MPPT 600V safe in both large-scale and mission-critical applications.

Advanced Networking and Communication Capabilities

The TS-MPPT-60-600V-48-DB excels in communication and monitoring. This makes it suitable for professional networks, energy management systems, and remote system control.

Supported capabilities include:

• MODBUS protocol (open standard)
• Data logging
• PC connectivity
• Bus device communication
• Ethernet capability
• Local network browser interface
• Email and text alerts
• SNMP support for network management
• Integration with Morningstar monitoring tools

These features allow installers or system managers to access real-time and historical performance data, receive alerts, and integrate the controller into complex systems.

Scalability and System Expansion

Multiple TriStar MPPT 600V units can be run in parallel. Up to four units can be combined for large systems. This allows installers to scale an installation from thousands to tens of thousands of watts without redesigning the entire electrical system.

This makes the controller an excellent choice for:

• Off-grid homes planning future expansion
• Eco-resorts with increasing energy load
• Hybrid renewable systems
• Commercial solar operations
• Telecom network expansions

Scalability is a major advantage when designing long-term systems.

Ideal Use Cases for the TriStar MPPT 600V

This controller is not for small, simple solar setups. It is purpose-built for advanced, high-voltage, professional, and large-scale installations where efficiency and future expansion matter.

Recommended Use Cases

• Large off-grid homes and cabins
• Remote mountain, desert, or forest installations
• Telecom towers and relay stations
• Industrial monitoring systems
• Scientific research stations
• Solar + battery backup systems for grid-tie
• Hybrid renewable systems (solar + wind)
• Commercial solar microgrids
• Long-distance array installations

When It May Be Overkill

• Small RV systems
• Small cabin systems with only a few panels
• DIY beginners without high-voltage system experience
• Very low-budget installations

Pros and Cons

Pros

• High-voltage PV input (up to 600V)
• Extremely high efficiency: up to 97.9%
• Very low self-consumption
• Rugged, passively cooled, long-life design
• Excellent communications and monitoring tools
• Advanced MPPT algorithm
• Wide battery compatibility including lithium (programmable)
• Extensive electronic protections
• Remote Temperature Sensor included
• Highly scalable for large systems
• Strong manufacturing quality and reputation

Cons

• Higher cost than entry-level charge controllers
• Requires careful PV string design
• Installation is technical and may require a professional
• High-voltage systems require appropriate safety hardware
• Too advanced for small hobby installations

Conclusion

The Morningstar TriStar MPPT 600V TS-MPPT-60-600V-48-DB is one of the top high-voltage MPPT solar charge controllers available for large or professional solar installations. Its combination of high-voltage capability, 60-amp charging capacity, high efficiency, advanced communication interfaces, rugged construction, and comprehensive protection features make it a leader in the renewable energy industry.

For systems needing long cable runs, large solar arrays, advanced monitoring, and extreme reliability, this controller is an investment that pays off through performance, durability, and low maintenance. It is ideal for off-grid homes, industrial sites, telecom installations, hybrid systems, and mission-critical operations.

While the controller is more sophisticated than what a basic small solar system requires, for anyone designing a serious or professional-grade solar installation, the TriStar MPPT 600V remains one of the most intelligently engineered and reliable controllers on the market.
