Nexmetal 48V DC Battery Powered Mini Split Air Conditioner Heat Pump Review – 0.75 Ton 9000 BTU Off-Grid Cooling and Heating System
The Nexmetal 48V DC battery powered Mini Split Air Conditioner Heat Pump (0.75 Ton / 9,000 BTU/h) is designed specifically for off-grid living, solar-powered installations, RV applications, cabins, and energy-conscious homeowners. Unlike conventional mini splits that require AC power and an inverter for solar systems, this unit runs natively on 42–59V DC current, making it a highly efficient solution for 48V battery banks.
This review explores the performance, features, specifications, energy efficiency, installation components, heating capabilities, and real-world usage of the Nexmetal 48V DC mini split, providing a comprehensive understanding of what this system offers.
Product Overview
The Nexmetal 48V DC Mini Split Air Conditioner Heat Pump is a wall-mounted mini split system that operates directly from a 48V DC battery source. It eliminates the need for an inverter, reducing energy loss and maximizing solar efficiency.
This system provides:
- Cooling capacity of 9,000 BTU/h (2,600 W)
- Heating capacity of 10,000 BTU/h (2,900 W)
- Rated power input of 500 Watts (10.5 A)
- True 48V DC compressor and fan motors
- SEER rating of 15
- Off-grid compatibility
- Memory retention after power loss (up to 24 hours)
It is especially suitable for solar-powered homes, remote cabins, vans, RVs, tiny houses, and battery-backed systems.
Product Specifications Table
Below is a detailed technical data table based on manufacturer and Amazon listing information:
| Feature | Specification |
|---|---|
| Brand | Nexmetal |
| Model Type | 48V DC Battery Powered Mini Split |
| Form Factor | Mini-Split |
| Capacity | 0.75 Ton |
| Cooling Capacity | 9,000 BTU/h (2,600 W) |
| Heating Capacity | 10,000 BTU/h (2,900 W) |
| Voltage | 48 Volts DC (42–59V range) |
| Rated Power Input | 500 Watts (10.5 A) |
| SEER | 15 |
| Color | White |
| Product Dimensions | 11″D x 30″W x 21″H |
| Start Year | 2023 |
| Special Feature | Native 48V DC Operation |
| Included Accessories | 10 ft insulated lines, drain line, remote control |
What Makes This 48V DC Mini Split Different?
Most mini split systems are designed for 110V or 220V AC power. When used in solar setups, they require an inverter to convert DC battery power into AC. This conversion process results in:
- Energy loss
- Additional equipment costs
- Heat generation
- Reduced system efficiency
The Nexmetal 48V DC battery powered mini split operates directly on DC power between 42–59 volts, eliminating the inverter entirely.
Key Advantages of Native DC Operation:
- Higher energy efficiency
- Reduced system complexity
- Lower power loss
- Ideal for solar battery banks
- Greater reliability in off-grid environments
This makes it particularly appealing for solar enthusiasts and those seeking energy independence.
Cooling Performance – 9,000 BTU Efficiency
With a cooling capacity of 9,000 BTU/h, this system is suitable for:
- Small homes
- Cabins
- RVs
- Studio apartments
- Tiny houses
- Bedrooms up to approximately 350–400 square feet
Efficient Cooling Output
The 2,600W cooling output combined with a rated input of only 500W results in exceptional energy efficiency for its size.
Because it does not rely on AC inversion, nearly all available battery power is used directly for cooling performance rather than conversion.
Stable Temperature Control
The included remote allows users to:
- Adjust temperature
- Switch modes
- Set timers
- Control fan speeds
The system maintains consistent cooling without excessive cycling, supporting comfort and power conservation.
Heating Performance – 10,000 BTU Heat Pump
One of the standout features of this unit is its heat pump heating function.
Heating Capacity:
- 10,000 BTU/h (2,900 W)
Unlike traditional electric resistance heaters, which convert electricity into heat at a 1:1 ratio, heat pumps transfer heat rather than generate it.
According to manufacturer data, this system provides heating efficiency up to five times greater than a standard electric heater.
Benefits of Heat Pump Heating:
- Reduced energy consumption
- Faster room warming
- Lower battery drain compared to resistance heaters
- Year-round functionality in one unit
This makes it highly practical for off-grid winter use.
SEER Rating and Energy Efficiency
The SEER rating of 15 indicates solid seasonal energy efficiency for a mini split in this category.
However, the most impressive efficiency advantage comes from its DC-native design.
Why It’s More Efficient Off-Grid
The manufacturer states:
- Twice as efficient as a 220V mini split
- Effectively three times more efficient in off-grid 48V systems without an inverter
This efficiency gain occurs because:
- No DC-to-AC inversion loss
- Reduced electrical heat waste
- Direct battery-to-compressor operation
For solar-powered homes, this can significantly extend battery runtime.
True 48V DC Compressor and Fans
This is not a modified AC system adapted to DC. It features:
- True 48V DC compressor
- True 48V DC fan motors
This design ensures:
- Smooth power delivery
- Lower electrical resistance loss
- Improved lifespan
- Optimized solar compatibility
Many off-grid users struggle with inverter overload or startup surges. By operating natively on DC, this unit avoids high startup amperage spikes common in AC compressors.
Power Consumption and Solar Compatibility
Rated Power Input: 500 Watts (10.5 A)
This relatively low power draw makes it practical for:
- 48V lithium battery systems
- AGM battery banks
- Solar arrays between 1–2 kW
- Backup battery systems
For example, a 48V 100Ah lithium battery stores approximately 4,800 Wh. At 500W consumption, the unit could theoretically run for:
Approximately 9 hours (depending on cycling and efficiency).
This makes it extremely practical for remote environments.
Memory Retention Feature
Another useful feature is its ability to remember the last running function for up to 24 hours after power failure.
This is beneficial for:
- Solar fluctuations
- Temporary battery dropouts
- Power interruptions
- Automatic restart after charging resumes
It reduces the need for manual reprogramming.

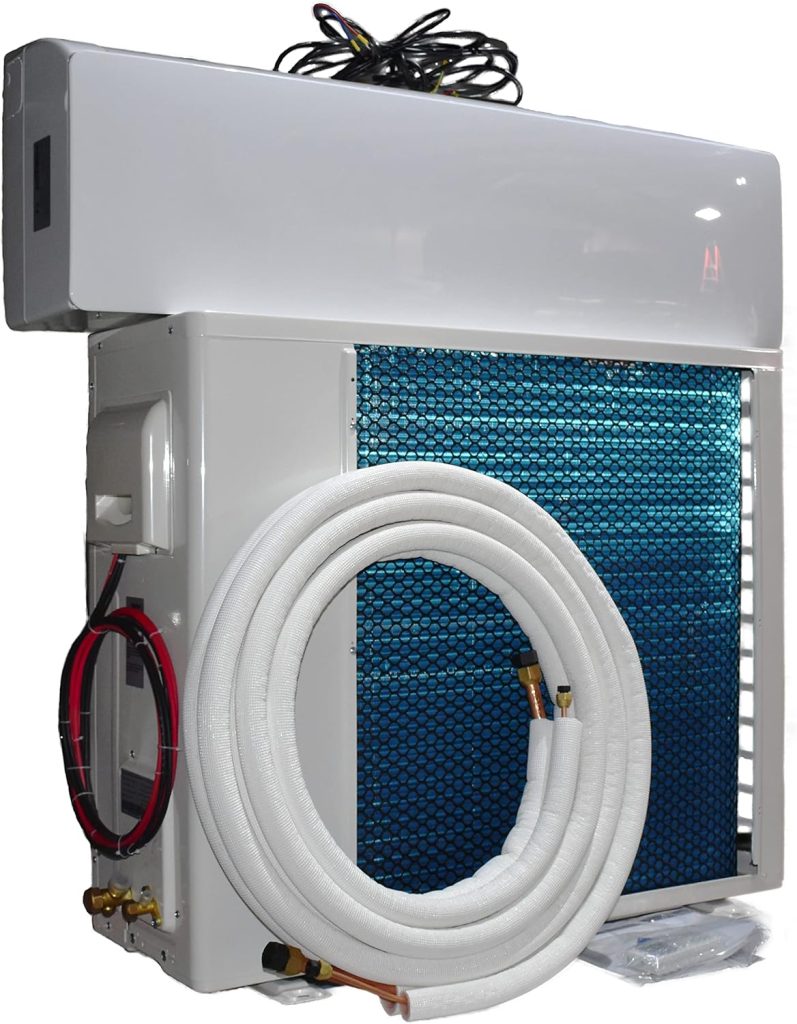

Included Installation Components
The system includes:
- 10 ft insulated refrigerant lines
- Drain line
- Remote control
This reduces additional installation purchases and simplifies setup.
However, professional installation may still be required depending on user experience and local codes.
Design and Build Quality
The white wall-mounted indoor unit has a compact footprint:
- 11 inches deep
- 30 inches wide
- 21 inches high
Its streamlined design fits well in:
- Modern cabins
- Off-grid homes
- RV builds
- Tiny house interiors
The outdoor unit is designed to integrate with solar-based DC systems efficiently.
Ideal Applications
The Nexmetal 48V DC mini split is best suited for:
- Off-grid cabins
- Solar-powered homes
- RV conversions
- Van life setups
- Remote workshops
- Emergency backup climate control
It is not intended for whole-house central air replacement but excels in small-space climate management.
Advantages Summary
- Native 48V DC operation
- No inverter required
- 9,000 BTU cooling capacity
- 10,000 BTU heating capacity
- 500W rated input
- SEER 15 efficiency
- Heat pump system
- Memory restart function
- Solar system compatibility
- Reduced energy loss
Limitations to Consider
- Designed for smaller spaces
- Requires 48V battery system
- Professional installation may be needed
- Not ideal for large homes
Understanding these factors ensures proper application.
Comparison with Traditional 220V Mini Splits
| Feature | 48V DC Nexmetal | Standard 220V Mini Split |
|---|---|---|
| Inverter Required | No | Yes (for solar use) |
| Energy Loss | Minimal | Moderate (conversion loss) |
| Off-Grid Suitability | Excellent | Moderate |
| Startup Surge | Low | Higher |
| System Complexity | Lower | Higher |
For solar users, the efficiency difference can be substantial over time.
Safety and Reliability
Running directly on DC power reduces:
- Inverter overheating risks
- Electrical conversion failures
- Complex wiring setups
Additionally, consistent voltage operation between 42–59V provides flexibility in battery charge states.
Real-World Use Case Scenario
In a small off-grid cabin powered by:
- 48V 200Ah lithium battery bank
- 2,000W solar array
This unit can operate throughout peak daylight hours and continue running into evening without rapid battery depletion.
Its 500W consumption makes it compatible with moderate solar systems.
Final Verdict
The Nexmetal 48V DC battery powered Mini Split Air Conditioner Heat Pump (0.75 Ton 9,000 BTU) stands out as a specialized climate control solution for solar-powered and off-grid systems.
By eliminating the inverter requirement and using true 48V DC components, it delivers improved efficiency, lower power loss, and practical battery integration.
For users building a 48V solar system or seeking inverter-free cooling and heating, this mini split offers a focused and efficient approach to climate management.
