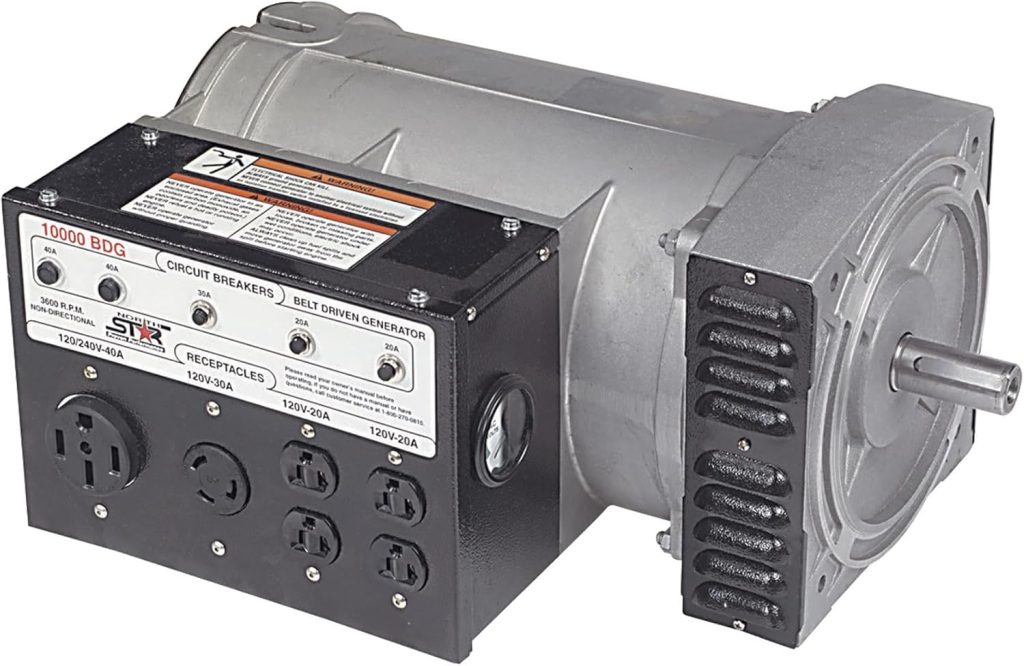

The NorthStar Belt Driven Generator Head is a heavy-duty power generation component designed for users who need reliable, high-output electricity from an engine-driven system. With 10,000 surge watts and 9,600 rated watts, this generator head is built for demanding applications such as farm operations, construction sites, workshops, emergency backup systems, and custom generator builds.
Unlike portable generators that combine engine and alternator into a single unit, a generator head allows users to pair it with an engine of their choice. This flexibility is a major advantage for experienced users who want control over performance, fuel type, maintenance, and long-term durability.
This in-depth NorthStar belt driven generator head review explains how the unit works, what it can power, its electrical output configuration, and who will benefit most from this generator head.
What Is a Belt Driven Generator Head?
A belt driven generator head is the electrical power-producing component of a generator system. It is designed to be connected to an external engine via belts and pulleys. When the engine runs, rotational force is transferred to the generator head, which converts mechanical energy into electrical power.
The NorthStar belt driven generator head is intended for use with engines rated at 18 horsepower or higher, ensuring stable power output under heavy loads.
This type of generator system is preferred by users who:
- Already own a suitable engine
- Want a custom-built generator
- Need higher reliability than consumer-grade portable units
- Require long run times and easy engine servicing
Product Overview
The NorthStar Belt Driven Generator Head is engineered for high amperage output and multiple receptacle options, making it suitable for both residential and commercial power needs.
Key Highlights
- 10,000 surge watts for startup loads
- 9,600 rated watts for continuous operation
- Multiple 120V and 120/240V receptacles
- Designed for belt-driven operation
- Heavy-duty construction for long service life
- Compatible with a wide range of engines
This generator head is often used in permanent or semi-permanent installations rather than portable setups.
Technical Specifications and Product Data
NorthStar Generator Head Specifications
| Feature | Specification |
|---|---|
| Brand | NorthStar |
| Product Type | Belt driven generator head |
| Surge Wattage | 10,000 watts |
| Rated Wattage | 9,600 watts |
| Required Engine Power | 18 HP minimum |
| Voltage Output | 120V / 240V |
| Maximum Current @ 120V | 80 amps |
| Maximum Current @ 240V | 40 amps |
| Receptacles | Four 20A 120V, one 30A 120V locking, one 50A 120/240V |
| Plug Types | NEMA 5-20R, L5-30R, L14-50R |
| Drive Type | Belt driven |
Power Output and Electrical Capacity
The NorthStar belt driven generator head delivers substantial power output suitable for demanding electrical loads.
Wattage Breakdown
- 10,000 surge watts support motor startup and high inrush loads
- 9,600 rated watts provide stable continuous power
This capacity allows the generator to handle:
- Large power tools
- Air compressors
- Welders
- Pumps
- Refrigerators and freezers
- HVAC components
- Lighting circuits
- Farm and workshop equipment
The generator head’s ability to deliver both 120V and 240V power adds versatility for mixed-load environments.
Receptacle Configuration and Usability
One of the standout features of this generator head is its comprehensive receptacle layout.
Included Outlets
- Four 20 Amp 120V receptacles
- One 30 Amp 120V locking plug receptacle
- One 50 Amp 120/240V straight blade receptacle
This configuration supports a wide range of devices without the need for adapters.
NEMA Plug Types
- NEMA 5-20R for standard 120V tools and appliances
- NEMA L5-30R for locking 120V connections
- NEMA L14-50R for high-capacity 120/240V applications
These industry-standard connectors ensure compatibility with professional-grade equipment.
Amperage Output Explained
The generator head provides:
- 80 amps at 120 volts
- 40 amps at 240 volts
This high amperage capability makes it suitable for powering multiple devices simultaneously or handling heavy single loads. It is especially useful in applications where voltage drop and load stability are critical.
Engine Compatibility and Requirements
The NorthStar generator head requires an engine rated at 18 horsepower or greater. This ensures:
- Proper generator speed
- Stable voltage and frequency
- Reduced strain on the engine
- Longer service life for both components
Users can pair it with:
- Gasoline engines
- Diesel engines
- Propane engines
This flexibility allows users to select fuel types based on availability, cost, and runtime needs.
Belt Driven Design Advantages
The belt driven configuration offers several advantages over direct-coupled systems.
Key Benefits
- Reduced vibration
- Easier alignment adjustments
- Flexible engine mounting
- Lower stress on bearings
- Simplified maintenance
Belts also act as a mechanical buffer, protecting the generator head from sudden load changes or engine irregularities.
Build Quality and Construction
The NorthStar belt driven generator head is built for long-term use in demanding environments. Its heavy-duty housing protects internal components from dust, debris, and mechanical damage.
Internal windings and electrical components are designed for consistent output under sustained loads. This makes the generator head suitable for continuous-duty applications rather than short, occasional use.
Applications and Use Cases
Farm and Agricultural Use
This generator head is ideal for powering pumps, feed systems, and tools in agricultural settings where grid power may be unreliable or unavailable.
Construction and Job Sites
Contractors benefit from the high output and multiple receptacles, allowing several tools to operate simultaneously.
Home Backup Power
When paired with an appropriate engine and transfer system, this generator head can serve as a robust home backup solution for essential circuits.
Workshop and Industrial Use
Its stable power output supports sensitive equipment, motors, and high-demand machinery.
Installation Considerations
Installing a belt driven generator head requires basic mechanical knowledge.
Key considerations include:
- Proper pulley sizing
- Correct belt tension
- Secure mounting of engine and generator head
- Adequate ventilation
- Safe electrical grounding
Once installed correctly, the system offers reliable and efficient power generation.
Maintenance and Longevity
Maintenance requirements are minimal for the generator head itself.
Recommended maintenance includes:
- Periodic belt inspection
- Checking mounting bolts
- Inspecting electrical connections
- Keeping vents clear of debris
Because the engine and generator are separate, engine servicing does not require disturbing the generator head, simplifying upkeep.
Advantages of the NorthStar Generator Head
Key Strengths
- High power output
- Multiple professional-grade receptacles
- Flexible engine compatibility
- Durable construction
- Belt driven efficiency
- Suitable for continuous use
These strengths make it a preferred option for experienced users.
Limitations and Considerations
Despite its advantages, this generator head has some limitations:
- Requires separate engine purchase
- Not portable as a standalone unit
- Installation requires mechanical setup
- Higher upfront investment than small portable generators
These factors should be considered before purchase.
Comparison to Portable Generators
Compared to all-in-one portable generators, the NorthStar belt driven generator head offers:
- Greater customization
- Higher durability
- Easier engine maintenance
- Better suitability for long runtimes
Portable generators, however, are easier to deploy and transport. This generator head is best for users prioritizing performance and longevity over convenience.
Who Should Buy the NorthStar Belt Driven Generator Head?
This product is best suited for:
- Experienced DIY users
- Farmers and landowners
- Contractors
- Workshop owners
- Emergency power planners
- Users with existing engines
It is less suitable for casual users seeking plug-and-play solutions.
Final Verdict
The NorthStar Belt Driven Generator Head is a powerful, reliable, and versatile solution for high-demand power generation. With 10,000 surge watts, 9,600 rated watts, and a robust receptacle configuration, it delivers professional-grade performance for a wide range of applications.
For users willing to invest in proper setup and engine pairing, this generator head offers exceptional value, long-term reliability, and the flexibility to build a power system tailored to specific needs.
