Introduction

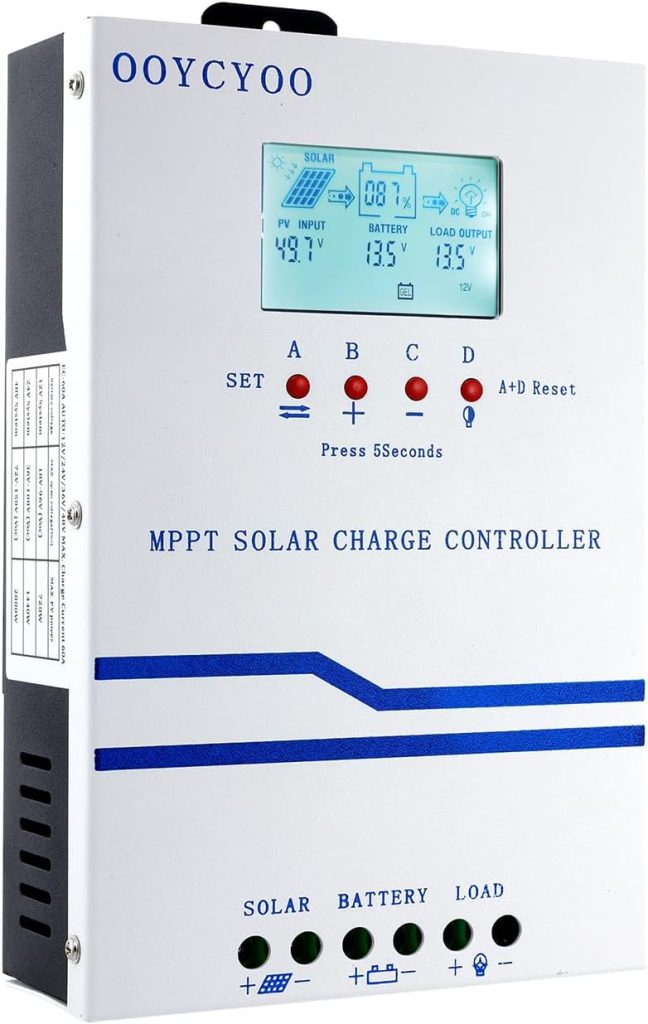

Solar energy systems depend on the right components to operate efficiently, protect batteries, and maintain long-term reliability. When building or upgrading a solar power system, the charge controller is one of the most important decisions you can make. The OOYCYOO 60A MPPT Solar Charge Controller is widely recognized by DIY solar users and small-to-mid-scale off-grid system builders as a powerful, flexible, and highly adaptable controller capable of supporting multiple battery types and several system voltages.
Engineered with a Maximum Power Point Tracking (MPPT) algorithm, this controller aims to maximize power extraction from solar panels, delivering increased performance over traditional PWM controllers. Its ability to support 12V, 24V, 36V, and 48V battery banks and accept solar panel input voltages reaching up to 160V makes it a compelling option for users who require versatility in panel configuration and system growth.
Key Features of the OOYCYOO 60A MPPT Solar Charge Controller
The OOYCYOO controller incorporates numerous modern features expected of a high-performance MPPT model. Below are the most significant capabilities:
1. 60A Charging Capacity
At a maximum charging current of 60 amps, the controller is capable of supporting moderate to large off-grid systems. This rating allows compatibility with large solar arrays and higher-capacity battery banks, making it suitable for cabins, tiny homes, RV builds, solar sheds, remote telecom stations, and home backup systems.
2. 160V Maximum PV Input Voltage
One standout feature is the ability to accept a solar panel open-circuit voltage (Voc) up to 160 volts. This enables installers to connect more panels in series, reducing power loss over long cable runs and improving overall system efficiency.
High input voltage support also simplifies wiring because fewer parallel strings are required.
3. Multi-Voltage Battery Support: 12V / 24V / 36V / 48V
The controller automatically detects the battery bank’s voltage and supports:
- 12V systems
- 24V systems
- 36V systems
- 48V systems
This flexibility makes the unit useful for a wide range of system designs and future expansion. A user can start with a 12V system and later reconfigure it to 24V or 48V without needing a new charge controller.
4. Compatibility With Multiple Battery Chemistries
The OOYCYOO 60A controller supports a variety of battery types, including:
- AGM
- Gel
- Flooded lead-acid
- Lithium (LiFePO4 and similar)
- User-defined custom settings
This level of compatibility ensures that the controller remains suitable for evolving battery requirements and upgrades.
5. Advanced MPPT Tracking Efficiency
The built-in MPPT algorithm delivers:
- 99% tracking efficiency
- Up to 98% peak conversion efficiency
This means nearly all of the available power from your solar array is harvested and converted into usable charging energy for your battery bank. Under fluctuating light conditions or during cloudy days, the controller continuously adjusts to find the optimum power point.
6. Four-Stage Charging Algorithm
To extend battery lifespan and maintain consistent performance, the controller uses a four-stage charging method:
- Bulk Charging
- Boost Charging
- Float Charging
- Equalization (for compatible batteries)
Each stage is designed to optimize charging speed while preventing stress on the battery.
7. Electronic Protections
To safeguard your system, the controller includes:
- Overcharge protection
- Over-discharge protection
- Overload protection
- Short-circuit protection
- Reverse polarity protection
- High-temperature protection
- Reverse current protection
These automated protection mechanisms help ensure the controller, battery bank, and solar panels remain safe even under challenging conditions.
8. Dual Cooling System
Heat can reduce a controller’s lifespan, so the OOYCYOO model uses:
- Large aluminum alloy heat sink
- Intelligent temperature-controlled cooling fan
- Porous ventilation design
The cooling fan activates above 45°C and turns off once cooled below 40°C, reducing noise and power consumption.
9. LCD Display Interface
The integrated LCD screen provides real-time system data:
- Solar panel voltage
- Battery voltage
- Charging current
- Operating mode
- Error codes
Being able to review system health without external software makes installation and troubleshooting easier.
OOYCYOO 60A MPPT Solar Charge Controller – Technical Specifications
Product Data Table
| Feature | Specification |
|---|---|
| Controller Type | MPPT (Maximum Power Point Tracking) |
| Rated Charging Current | 60A |
| Supported Battery Voltages | 12V / 24V / 36V / 48V (auto-detect) |
| Battery Types Supported | AGM, Gel, Flooded, Lithium, User-Defined |
| Max PV Input Voltage (Voc) | 160V |
| Recommended Solar Input (12V System) | Up to 720W |
| Recommended Solar Input (24V System) | Up to 1440W |
| Recommended Solar Input (36V System) | Up to 2100W |
| Recommended Solar Input (48V System) | Up to 2800W |
| MPPT Tracking Efficiency | Up to 99% |
| Peak Conversion Efficiency | Up to 98% |
| Cooling System | Dual (Aluminum heatsink + temperature-controlled fan) |
| Charging Algorithm | Bulk, Boost, Float, Equalization |
| Display | LCD |
| Grounding | Negative ground |
| Housing | Die-cast aluminum alloy |
| Fan Operating Temperature | On > 45°C, Off < 40°C |
System Voltage Recommendations & Solar Sizing
To avoid overloading the controller, proper solar sizing is essential. The manufacturer provides maximum recommended solar wattage values based on battery bank voltage.
12V Battery Bank
- Recommended solar power: Up to 720W
- Suggested solar input voltage: 20V–80V
24V Battery Bank
- Recommended solar power: Up to 1440W
- Suggested solar input voltage: 37V–105V
36V Battery Bank
- Recommended solar power: Up to 2100W
- Suggested solar input voltage: 50V–160V
48V Battery Bank
- Recommended solar power: Up to 2800W
- Suggested solar input voltage: 72V–160V
These ranges ensure that the peak system voltage remains below the 160V input limit, even in cold temperatures when solar panels can produce higher voltages.
Performance in Real-World Solar Installations
The OOYCYOO 60A MPPT controller performs well across several solar installation types:
Off-Grid Cabins and Tiny Homes
Its support for 48V battery systems and multi-kilowatt solar arrays makes it suitable for powering:
- Lighting
- Refrigeration
- Water pumps
- Electronics
- Communication equipment
The high PV input voltage is especially useful when mounting panels far from the battery bank.
RV, Caravan, and Mobile Solar Builds
Its MPPT performance improves charging efficiency during partial shading and changing sunlight angles—common challenges for mobile solar systems.
Remote Monitoring Stations
The combination of lithium compatibility and high-voltage solar input allows for simplified wiring and dependable long-term charging.
Sheds, Outbuildings, and Backup Power Systems
The controller supplies reliable battery maintenance and sustained charging for:
- Security systems
- Tools
- Lighting
- Emergency power electronics
Pros & Cons
Pros
- High 160V solar input voltage simplifies wiring and supports long panel strings.
- Wide battery compatibility including modern lithium chemistries.
- High efficiency MPPT tracking ensures strong energy output.
- Large LCD display for easy system monitoring.
- Four-stage charging algorithm extends battery lifespan.
- Dual cooling system increases controller durability.
- Negative grounding supports modern system safety standards.
- Strong price-to-performance ratio, especially for DIY installations.
Cons
- Build quality may vary between units.
- Not designed for commercial-grade or mission-critical systems.
- Requires careful wiring and configuration for lithium batteries.
- Fan noise may be noticeable in quiet indoor environments.
- Some users may find the interface less intuitive than premium brands.
Installation Considerations
To achieve safe, stable operation:
1. Use Proper Wire Gauge
A 60A controller demands thick wiring, typically:
- 4 AWG or thicker for battery leads
- Appropriately rated solar input cable
Undersized wiring can lead to heat buildup and voltage drop.
2. Mount in a Ventilated Area
Avoid mounting the controller inside sealed battery boxes or small cabinets. Good airflow improves lifespan.
3. Confirm Polarity Before Wiring
Reverse polarity can damage batteries or panels, even with built-in protection.
4. Configure Settings Correctly
For lithium batteries:
- Use the custom/user-defined mode
- Set charging voltages according to the battery manufacturer
- Disable equalization unless required
Proper settings ensure safe battery charging and long-term health.
Who Should Choose This Controller?
The OOYCYOO 60A MPPT Solar Charge Controller is an excellent match for:
- DIY solar system builders
- Off-grid homeowners
- RV and campervan builders
- Solar beginners and hobbyists
- Anyone needing a budget-friendly MPPT with high efficiency
- Users wanting multi-voltage flexibility
- Installations requiring 160V solar input capacity
It may not be ideal for:
- Very large solar systems
- Industrial or mission-critical installations
- Users requiring remote monitoring or advanced communication protocols
Conclusion
The OOYCYOO 60A MPPT Solar Charge Controller delivers a compelling blend of high efficiency, wide input voltage tolerance, multi-battery support, and intelligent charging at a competitive price. With features like 99% MPPT tracking accuracy, 160V input rating, four-stage battery charging, and dual cooling mechanisms, it stands as a strong option for small to mid-scale solar installations.
While it is not a top-tier commercial controller, its performance suits most residential off-grid and hobbyist applications. When properly configured and installed, it offers dependable power regulation and efficient solar charging for a broad variety of system voltages and battery chemistries.
