Introduction

Precision motion control is a critical requirement in modern automation, CNC equipment, robotics, material handling systems, and laboratory machinery. Single-axis motion controllers play a key role in achieving accurate positioning, smooth speed transitions, and repeatable movement sequences. The P-PMC Single Axis Motion Controller is designed as a compact yet powerful solution capable of handling complex positioning and non-positioning tasks with high accuracy.

This P-PMC single axis motion controller review provides a complete and easy-to-understand explanation of its functions, programming capabilities, input and output features, performance characteristics, and ideal use cases. The goal is to help users clearly understand what this controller offers and how it fits into real-world automation systems.

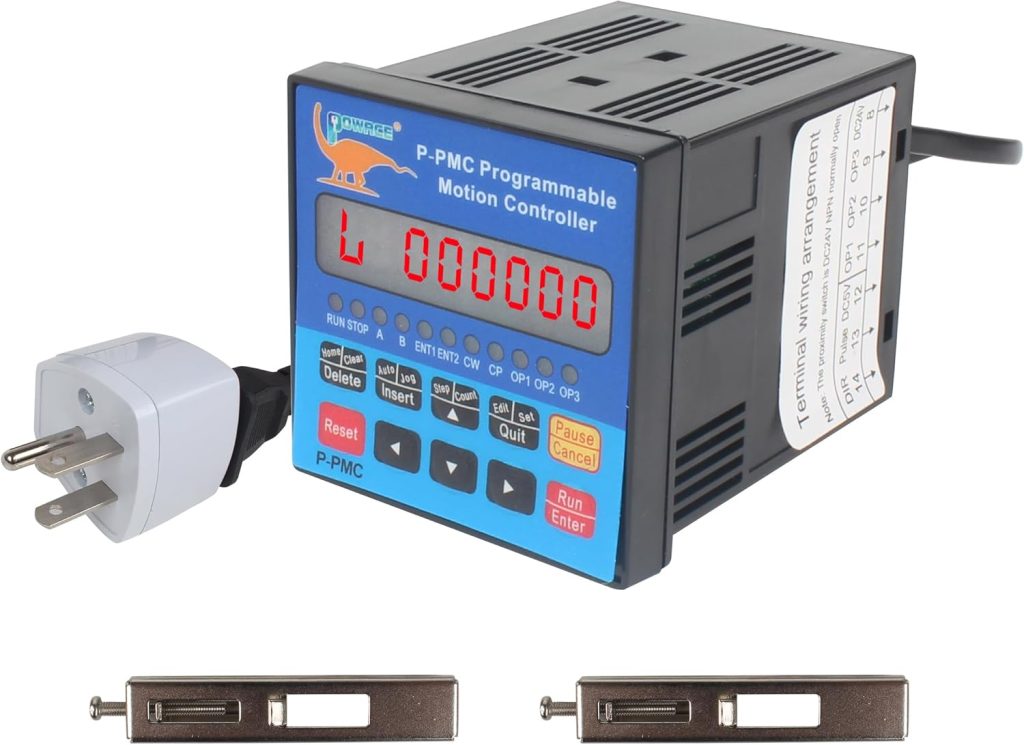

Product Overview

The P-PMC single axis motion controller is a programmable pulse-type controller supporting both positioning control and continuous motion control. With a maximum output frequency of 40 kHz and 1 Hz resolution, it delivers fine motion control suitable for stepper motors and compatible servo systems.

An 8-digit digital display provides clear feedback on operating states, parameters, steps, and program status. The controller supports extensive program editing, error detection, and flexible parameter configuration, making it suitable for industrial automation as well as advanced DIY and educational applications.

Core Motion Control Capabilities

Positioning and Non-Positioning Control

The controller supports both:

• Positioning control, where the motor moves to a precise target location
• Non-positioning control, where the motor runs continuously at a set speed

This dual capability allows the controller to handle tasks such as indexing, length feeding, repetitive movement, and constant-speed conveyance.

High-Resolution Pulse Output

The maximum output frequency of 40 kHz ensures smooth high-speed motion, while the 1 Hz frequency resolution allows precise speed tuning. This combination supports accurate micro-stepping and fine motion adjustments.

Display and User Interface

The P-PMC controller features an 8-digit digital display that provides real-time information including:

• Operating mode
• Position or count value
• Program step number
• Parameter values
• Input and output status

This clear visual feedback simplifies setup, monitoring, and troubleshooting without the need for external software.

Signal Input and Output Configuration

Optically Isolated Inputs

The controller includes 6 optically isolated signal inputs, improving noise immunity and protecting internal circuits. These inputs can be programmed to handle functions such as:

• Start and stop commands
• Direction control
• Limit switches
• Origin sensors
• External interrupts

Optically Isolated Outputs

There are 3 optically isolated signal outputs, suitable for driving relays, indicators, alarms, or interfacing with other control devices. Optical isolation ensures stable operation in electrically noisy environments.

Programming Capacity and Flexibility

Program Length and Structure

The controller supports a maximum programmable length of 99 rows, enabling users to create complex motion sequences without external controllers. Programs can be edited directly from the front panel.

Supported Programming Instructions

The P-PMC motion controller supports 14 different programming instructions, covering a wide range of motion and logic operations. These instructions enable step control, loops, conditional jumps, delays, and positioning commands.

Error Detection

The controller can automatically identify incorrect instructions, helping users detect programming errors quickly and reducing setup time.

Continuous Displacement Range

The controller supports a wide continuous displacement range from -7,999,999 to +7,999,999, allowing it to handle both short and long travel distances. This makes it suitable for applications such as linear actuators, lead screw systems, and belt-driven mechanisms.

Operating Modes

The P-PMC single axis motion controller supports multiple operating states:

• Auto-run mode for executing stored programs
• Manual operation mode for direct control and testing
• Program edit mode for creating and modifying motion sequences
• Parameter setting mode for system configuration

These modes provide flexibility for commissioning, testing, and production use.

Speed Curve Optimization

The controller includes two optimized lifting speed curves, improving motion smoothness and reducing mechanical stress. Controlled acceleration and deceleration minimize vibration, noise, and wear on mechanical components.

Return to Zero Function

The automatic return to zero feature allows the system to locate its origin position reliably. The controller can return to zero from both positive and negative directions, ensuring accurate homing regardless of current position.

This function is essential for repeatable positioning and safety in automated systems.

Parameter Setting Functions

The P-PMC controller allows detailed parameter customization, including:

• Starting frequency
• Acceleration curve
• Deceleration curve
• Reverse clearance compensation
• Manual run length
• Manual speed
• Return-to-zero speed
• Interrupt jump line settings

These adjustable parameters allow the controller to be fine-tuned for different motors, loads, and mechanical systems.

Additional Functional Displays

The controller provides extensive real-time information, including:

• Manual and automatic status display
• Run and stop status
• Step count and procedure count
• Program editing view
• Parameter display
• Input and output signal status
• Pulse and direction signal display

This comprehensive feedback enhances usability and operational transparency.

Technical Specifications Table

Build Quality and Reliability

The P-PMC motion controller is designed for stable industrial operation. Optical isolation on inputs and outputs improves resistance to electrical noise, while the internal architecture supports long-term reliable use. The front panel interface is robust and suitable for repeated operation.

Performance Evaluation

Accuracy and Stability

The high-resolution pulse output ensures accurate positioning and smooth motion. Even at higher frequencies, the controller maintains stable pulse generation without noticeable jitter.

Ease of Programming

Program editing directly on the controller is intuitive, and the ability to insert, delete, and modify instructions simplifies workflow adjustments. Error recognition further enhances reliability.

Operational Flexibility

Manual and automatic modes allow quick testing and seamless transition to production use. The wide displacement range and flexible parameters accommodate various mechanical designs.

Applications

The P-PMC single axis motion controller is well suited for:

• CNC feeders and positioning systems
• Linear actuators
• Packaging machinery
• Labeling equipment
• Automated testing rigs
• Conveyor positioning
• Educational automation training
• DIY motion control projects

Its balance of simplicity and functionality makes it useful across many industries.

Advantages

• High 40 kHz output frequency
• Precise 1 Hz resolution
• Extensive programming capability
• Optically isolated I/O for reliability
• Automatic return to zero
• Wide displacement range
• Clear digital display

Limitations

• Single-axis control only
• No built-in communication interface for PC control
• Requires familiarity with pulse-based motion systems

These limitations are typical for standalone single-axis controllers and do not reduce its effectiveness within its intended scope.

Final Verdict

The P-PMC Single Axis Motion Controller is a powerful and reliable solution for precise motion control applications. Its combination of high-frequency pulse output, flexible programming, optical isolation, and comprehensive display features makes it an excellent choice for automation professionals and advanced users.

For anyone seeking a dependable and configurable single axis motion controller review, the P-PMC offers strong performance, clarity of operation, and long-term reliability in a compact standalone unit.
