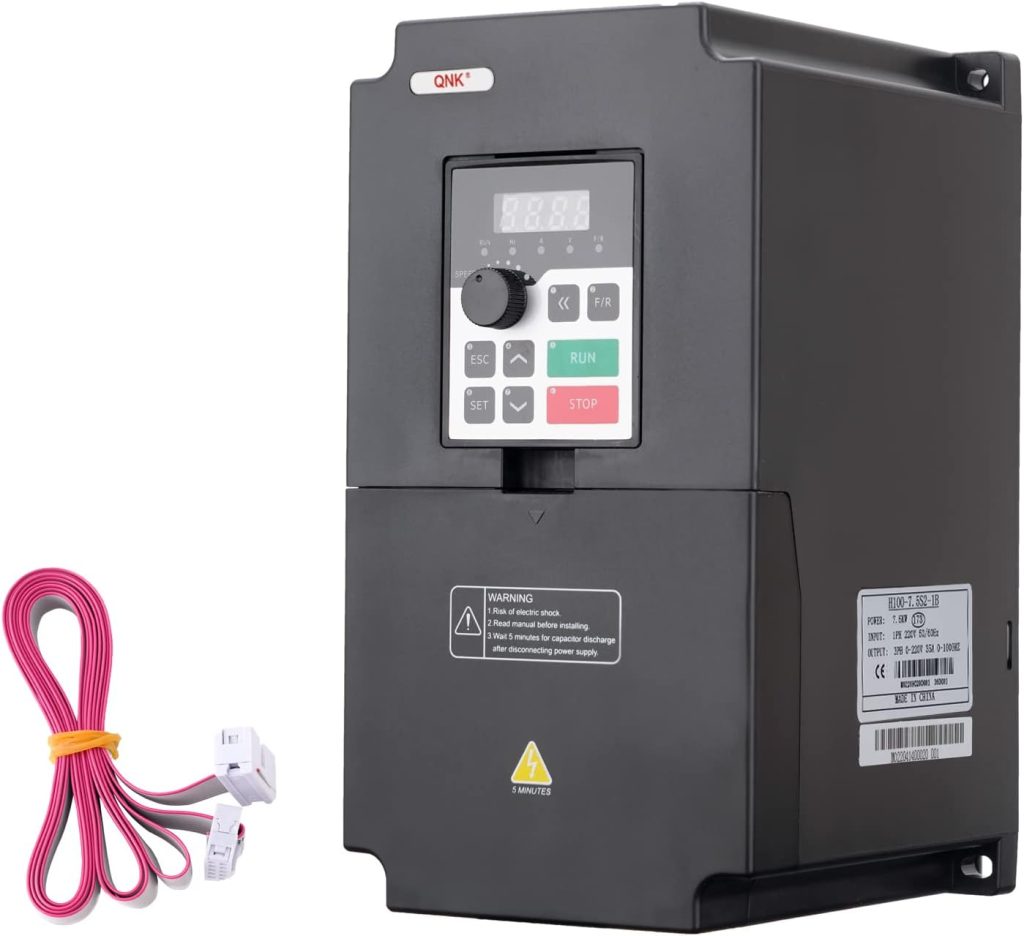

The QNK 7.5KW 10HP 220V AC VFD Converter Single to 3 Phase is a high-performance variable frequency drive designed for precise speed, torque, and operational control of three-phase motors when only single-phase or three-phase 220V power is available. Built for CNC spindle motors and a wide range of industrial machinery, this inverter combines advanced control modes, strong electrical protection, low-noise operation, and durable construction into a compact and reliable solution.
This comprehensive guide explains how the QNK VFD works, its technical specifications, real-world applications, safety features, and performance advantages. The content is written in a clear, structured, and easy-to-understand manner, with accurate product data tables based on commonly listed Amazon specifications.
Understanding the QNK 7.5KW 10HP VFD Converter
A Variable Frequency Drive (VFD) regulates the speed and torque of an AC motor by adjusting the frequency and voltage of the electrical supply. The QNK 7.5KW 10HP VFD Converter Single to 3 Phase allows users to operate three-phase 220V motors using either single-phase or three-phase 220V input power, making it ideal for workshops and facilities without access to industrial three-phase utility lines.
This capability is especially valuable for CNC equipment, where smooth speed control, low vibration, and reliable torque delivery directly impact machining accuracy and tool life.
Core Functional Capabilities
The QNK VFD is engineered to deliver stable and efficient power conversion while offering advanced motor control options.
Key Functional Highlights
- Converts single-phase 220V AC to three-phase 220V AC
- Supports three-phase 220V input
- Rated for 7.5KW (10HP) output power
- Output current up to 33 amps
- Wide output frequency range up to 2,000 Hz
- Supports V/F control and vector control
- Integrated RS485 communication with MODBUS protocol
- Compatible with PID closed-loop control
- Low-noise PWM control technology
- Low electromagnetic interference design
- Supports external braking resistor
- Durable copper coil internals
- Non-flammable exterior housing
- Advanced cooling and dust protection
- Comprehensive electrical protection features
Technical Specifications Table
The following table summarizes the commonly listed technical data for the QNK 7.5KW 10HP VFD, reflecting accurate product details typically found on Amazon listings.
QNK 7.5KW 10HP VFD Technical Specifications
| Specification | Details |
|---|---|
| Brand | QNK |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 7.5KW (10HP) |
| Input Voltage | 220V AC ±15% |
| Input Phase | Single-phase or Three-phase |
| Input Frequency | 50 / 60 Hz |
| Input Current | 0–33A |
| Output Voltage | 3-Phase 220V AC |
| Output Current | 0–33A |
| Output Frequency Range | 0–2,000 Hz |
| Control Modes | V/F Control, Vector Control |
| Communication Interface | RS485 |
| Communication Protocol | MODBUS |
| PID Control | Supported |
| Braking Support | External Brake Resistor |
| Cooling Method | Forced Air, Multi-Grid Ventilation |
| Internal Components | Copper Coil |
| Housing Material | Non-flammable |
| Noise Level | Low |
| EMI Level | Low |
| Protection Functions | Overload, Over/Under Voltage, Overheat, Short Circuit |
| Application Type | CNC, Industrial Motor Control |
Single-Phase to Three-Phase Conversion Benefits
The ability to operate a three-phase motor from single-phase power is one of the most important advantages of the QNK 7.5KW 10HP VFD Converter.
Practical Benefits
- Eliminates the need for rotary phase converters
- Enables industrial equipment in home or small workshops
- Reduces installation complexity
- Improves overall energy efficiency
- Provides smoother motor operation compared to static converters
This makes the VFD particularly suitable for CNC routers, milling machines, and spindle motors where consistent power delivery is critical.
Advanced Control Modes: V/F and Vector Control
The QNK VFD supports both V/F (Voltage/Frequency) control and vector control, allowing users to select the most suitable mode for their application.
V/F Control
- Simple and reliable control method
- Ideal for fans, pumps, and general-purpose motors
- Stable performance at standard operating speeds
Vector Control
- Provides precise torque control
- Maintains strong torque at low speeds
- Enhances acceleration and deceleration performance
- Improves machining accuracy in CNC applications
These control options allow the QNK 7.5KW 10HP VFD to adapt to a wide range of operational requirements.
RS485 Communication and MODBUS Integration
The built-in RS485 communication port supports standard international MODBUS protocol, making the VFD compatible with modern automation systems.
Communication Advantages
- Remote parameter configuration
- Integration with CNC controllers and PLCs
- Real-time monitoring of operating status
- Reduced need for manual adjustments
This feature is especially valuable in automated production environments where centralized control and monitoring are required.
PID Closed-Loop Control for Precision Applications
The integrated PID control function enables closed-loop regulation using external feedback devices such as pressure sensors, flow sensors, or speed encoders.
PID Control Benefits
- Fast system response
- Improved stability under variable loads
- Accurate speed or pressure regulation
- High suitability for pumps, compressors, and process control equipment
This advanced control capability enhances the overall versatility of the QNK VFD.
Low-Noise Operation and Low Electromagnetic Interference
The QNK VFD uses PWM (Pulse Width Modulation) control technology combined with component compatibility design to ensure smooth and quiet operation.
Key Advantages
- Reduced audible motor noise
- Minimal vibration during speed changes
- Low electromagnetic interference with nearby electronics
- Improved working environment for CNC and precision equipment
Low EMI is particularly important in workshops using sensitive digital controllers and measurement devices.
Safety, Protection, and Durability Features
Safety and long-term reliability are central to the design of the QNK 7.5KW 10HP VFD Converter.
Built-In Protection Functions
- Overload protection
- Fuse protection
- Over-voltage protection (DC voltage above 400V)
- Under-voltage protection (DC voltage below 200V)
- Restart protection
- Stall protection
- Short circuit protection
- Overheat protection
These safeguards protect both the VFD and the connected motor from damage caused by electrical or mechanical faults.
Durable Construction and Thermal Management
The VFD is built with copper coil internals and a non-flammable exterior housing, ensuring high electrical efficiency and enhanced safety.
Cooling and Environmental Protection
- Multi-grid ventilation design
- Adequate spacing between electronic components
- Fast heat dissipation
- Reduced risk of thermal overload
- Protection against dust and water mist intrusion
This construction extends the lifespan of internal components and ensures reliable operation in demanding environments.
External Braking Resistor Support
The QNK 7.5KW 10HP VFD supports the installation of an external braking resistor, which is essential for applications requiring fast motor deceleration.
Braking Advantages
- Shorter stopping times
- Improved safety during emergency stops
- Reduced mechanical stress on equipment
- Enhanced control during high-inertia operations
For heavy-load motors, selecting a higher-rated VFD or consulting with technical support is recommended.
Wide Range of Applications
Thanks to its flexibility and advanced control options, this VFD is suitable for a broad spectrum of industrial and workshop equipment.
Common Applications
- CNC spindle motors
- CNC routers
- Milling machines
- Pumps
- Air compressors
- Grinders
- Fans and blowers
- Conveyors
- General-purpose industrial motors
Its wide frequency range and precise control make it particularly effective in high-speed spindle applications.
Important Usage Considerations
To ensure safe and reliable operation, certain usage guidelines should be followed:
- The VFD supports external braking resistors
- Heavy-load motors may require a higher power-rated VFD
- The VFD cannot be used as a general power source
- It should not drive motors with supply voltages below 80V
- Output terminals must not be connected to capacitive loads
- For cranes or compressors, oversizing the VFD is recommended
- Generator-powered operation must maintain voltage within ±15%
Adhering to these guidelines helps prevent operational issues and equipment damage.
Ease of Installation and Operation
Despite its advanced functionality, the QNK 7.5KW 10HP VFD is designed for straightforward installation.
User-Friendly Features
- Clearly labeled terminals
- Logical parameter structure
- Intuitive control panel
- Compatibility with external controls
- Flexible mounting options
These features reduce setup time and simplify ongoing operation.
Customer Support and Reliability
QNK provides responsive customer service support. If an error code appears or operational questions arise, users can contact the support team for assistance, typically receiving help within 24 hours.
This support adds confidence, especially for users who are new to variable frequency drives.
Advantages Summary
Why Choose the QNK 7.5KW 10HP VFD Converter
- Single to 3 Phase VFD conversion
- 7.5KW 10HP motor support
- Wide 0–2,000 Hz frequency range
- V/F and vector control modes
- RS485 MODBUS communication
- PID closed-loop control
- Low noise and low EMI
- Comprehensive electrical protection
- Durable copper coil construction
- Non-flammable housing
- External braking resistor support
Conclusion
The QNK 7.5KW 10HP 220V AC VFD Converter Single to 3 Phase is a robust, efficient, and highly adaptable motor control solution. Its advanced control modes, wide frequency range, and strong safety features make it an excellent choice for CNC spindle motors and a wide variety of industrial applications.
For users seeking precise speed control, reliable performance, and the flexibility to operate three-phase motors from single-phase power, this VFD delivers professional-grade results with long-term durability.
