A Complete CNC Motion Control Solution for Precision, Power, and Reliability
Building or upgrading a CNC router, engraving machine, or milling platform requires reliable motion control components that work together seamlessly. The RATTMMOTOR 4 Axis Nema 23 Stepper Motor Kit is designed to deliver a balanced combination of torque, smooth motion, quiet operation, and system compatibility for both hobbyists and professional users.
This all-in-one CNC control kit integrates high-torque Nema 23 stepper motors, advanced DM556S digital stepper drivers, a Mach3-compatible 4 axis USB motion control card, and properly matched DC switching power supplies. Each component is engineered to complement the others, reducing setup complexity while improving overall performance.
In this in-depth guide, you will find a complete breakdown of the kit’s components, technical specifications, performance benefits, installation considerations, and real-world applications. All product data is based on standard Amazon listing specifications, presented clearly and accurately without external references.
Understanding the Importance of a Complete CNC Motor Kit
CNC machines rely on precise coordination between motors, drivers, controllers, and power supplies. Mismatched components can result in missed steps, vibration, overheating, or inconsistent accuracy.
The RATTMMOTOR 4 Axis Nema 23 Stepper Motor Kit addresses these challenges by offering a pre-matched system where:
- Motor torque is correctly supported by driver current
- Power supplies are sized for stable voltage delivery
- The control board communicates efficiently with Mach3 software
- Microstepping and digital signal processing ensure smooth motion
This makes the kit suitable for users who want dependable performance without extensive trial-and-error component matching.
Overview of the RATTMMOTOR 4 Axis CNC Kit
This kit is designed for 4-axis CNC systems, supporting X, Y, Z, and an additional rotary or auxiliary axis. It is commonly used in CNC routers, engraving machines, plasma tables, foam cutters, and light-duty milling setups.

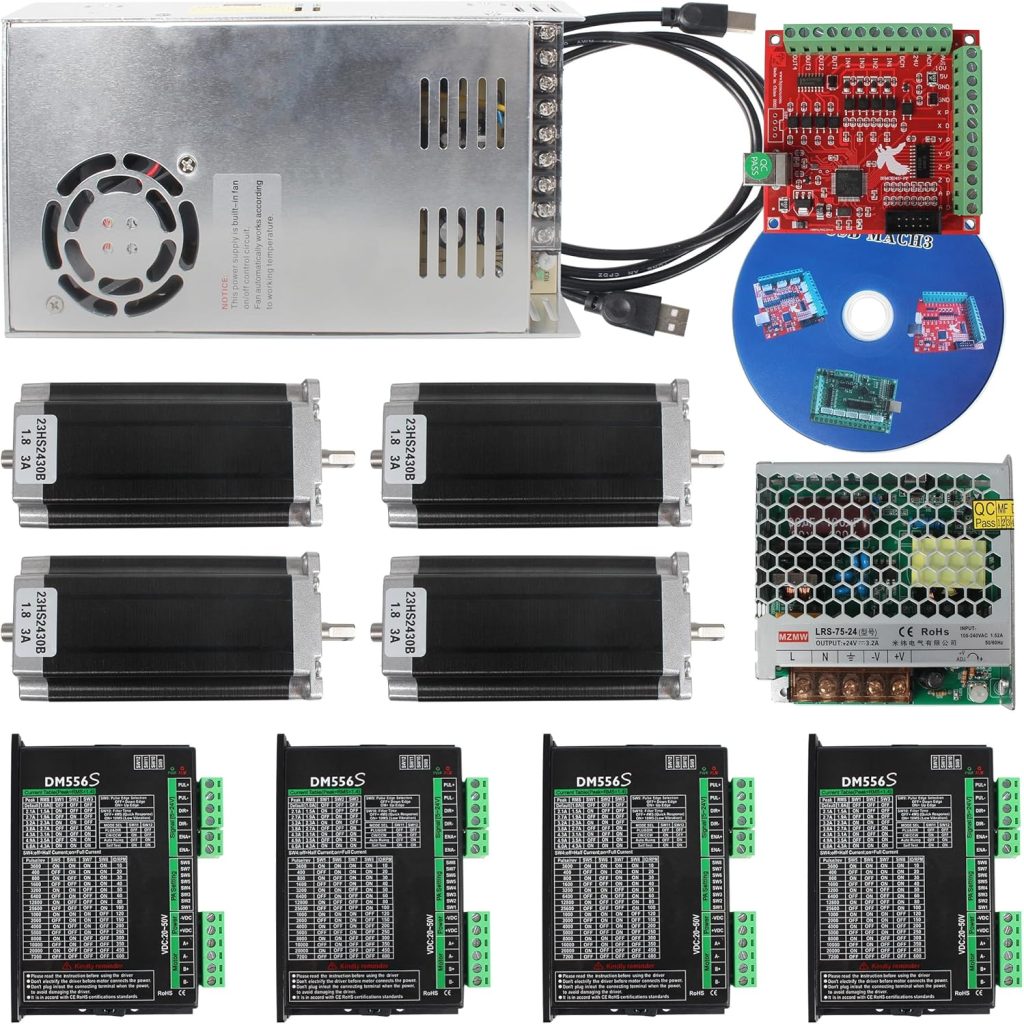

Core Components Included
- Nema 23 stepper motors (model 23HS2430B)
- DM556S digital stepper motor drivers
- 4 axis USB Mach3 motion control board
- 36V DC switching power supply for motors
- 24V DC switching power supply for control electronics
Each component plays a critical role in ensuring accurate positioning, consistent torque, and reliable communication with the host computer.
Nema 23 Stepper Motor Specifications and Performance
At the heart of the system are the 23HS2430B Nema 23 stepper motors, designed for high torque and precise motion control.
Nema 23 Stepper Motor Technical Specifications
| Specification | Details |
|---|---|
| Motor Model | 23HS2430B |
| Frame Size | Nema 23 |
| Motor Type | Hybrid stepper motor |
| Phase | 2 Phase |
| Step Angle | 1.8 degrees |
| Rated Current | 3.0A |
| Holding Torque | 425 oz-in (280 N·cm) |
| Shaft Type | Dual shaft |
| Shaft Diameter | 8 mm |
| Lead Wires | 4 wires |
| Wiring Configuration | A+ Red, A- Green, B+ Yellow, B- Blue |
| Motor Dimensions | 57 x 57 x 112 mm |
Torque and Accuracy
With a holding torque of 425 oz-in, these motors provide ample force for driving lead screws or ball screws under load. This torque rating is particularly well-suited for:
- Medium-sized CNC routers
- Engraving machines cutting hardwood, plastics, and aluminum
- Applications requiring consistent force at low to medium speeds
The 1.8-degree step angle offers 200 full steps per revolution, which becomes significantly more precise when combined with microstepping through the driver.
DM556S Stepper Motor Driver: Digital Precision and Smooth Motion
The DM556S stepper motor driver is a key performance component in this kit. Unlike older analog drivers, it uses modern 32-bit DSP digital processing technology.
DM556S Driver Specifications
| Specification | Details |
|---|---|
| Driver Model | DM556S |
| Output Current Range | 1.0A – 6.0A |
| Microstepping Range | 200 – 51200 subdivisions |
| Control Technology | 32-bit DSP digital processing |
| Input Voltage | 20 – 50V DC |
| Motor Compatibility | Nema 17, Nema 23, selected Nema 34 |
Microstepping and Motion Quality
The DM556S features built-in micro-subdivision technology. Even when configured at lower subdivision settings, it achieves a high subdivision effect internally. This results in:
- Smoother low-speed motion
- Reduced vibration and resonance
- Improved surface finish during engraving or cutting
- Ultra-low noise operation
This is especially beneficial for CNC engraving machines where fine detail and quiet operation are important.
Mach3 4 Axis USB Motion Control Board
The 4 Axis USB Mach3 control board serves as the communication bridge between your computer and the stepper drivers.
Control Board Specifications
| Specification | Details |
|---|---|
| Axis Support | 4 Axis |
| Interface | USB |
| Software Compatibility | Mach3 |
| Driver Installation | Not required |
| Supported Operating Systems | Windows 2000, XP, 7, 8, 10 |
| Computer Compatibility | Desktop, notebook, netbook, tablet with USB |
Driver-Free USB Operation
One of the standout advantages of this control board is its driver-free USB interface. As long as Mach3 software runs on your system, the board can operate without installing additional drivers. This simplifies setup and reduces compatibility issues.
Stable Signal Transmission
USB communication ensures consistent pulse output to the drivers, minimizing signal distortion and improving axis synchronization. This is essential for multi-axis interpolation during complex toolpaths.
Power Supply Configuration and Electrical Stability
Reliable power delivery is critical for CNC systems, especially under load. The RATTMMOTOR 4 Axis Nema 23 Stepper Motor Kit includes two dedicated switching power supplies.
Power Supply Specifications
| Power Supply | Output | Current | Input Voltage | Application |
|---|---|---|---|---|
| Motor Power Supply | 36V DC | 9.7A | 110–120V AC or 220–240V AC | Stepper motors and drivers |
| Control Power Supply | 24V DC | 75W | 100–240V AC | Mach3 control board |
Advantages of Dual Power Supplies
Separating motor power from control electronics improves system stability by:
- Reducing electrical noise
- Preventing voltage drops during rapid acceleration
- Protecting sensitive control circuits
The 36V supply provides sufficient headroom for high-speed operation while maintaining torque at lower RPMs.
Ultra-Low Noise and Smooth Operation
Noise and vibration are common issues in CNC systems, especially with poorly matched components. This kit is specifically designed to minimize both.
How Noise Reduction Is Achieved
- Digital DSP-based drivers
- Advanced microstepping algorithms
- Proper voltage matching
- High-quality hybrid stepper motors
As a result, motion remains smooth across low, medium, and high-speed ranges, making the kit suitable for workshop environments where noise reduction is important.
Installation and Wiring Overview
While CNC systems can appear complex, this kit is structured to simplify installation.
Motor Wiring
Each Nema 23 motor uses a standard 4-wire configuration:
- A+ to Red
- A- to Green
- B+ to Yellow
- B- to Blue
This clear color coding reduces wiring errors and speeds up setup.
Driver Configuration
The DM556S driver features DIP switches for:
- Current adjustment
- Microstepping resolution
This allows users to fine-tune performance based on machine size, mechanical transmission, and desired resolution.
Real-World Applications
The RATTMMOTOR 4 Axis Nema 23 Stepper Motor Kit is versatile and suitable for a wide range of CNC applications.
CNC Routers
Ideal for woodworking, plastics, acrylics, and light aluminum cutting with stable torque and smooth motion.
CNC Engraving Machines
High microstepping resolution ensures clean engraving lines and detailed artwork reproduction.
Plasma and Foam Cutters
Reliable axis synchronization and quiet operation improve cut accuracy and workflow efficiency.
Educational and DIY Projects
Well-suited for makers, engineering students, and hobbyists building custom CNC platforms.
Performance Comparison Table
| Feature | Typical Entry-Level CNC Kit |
|---|---|
| Motor Torque | 270–350 oz-in |
| Driver Technology | Analog |
| Noise Level | Moderate to high |
| Microstepping Range | Limited |
| USB Controller | Often parallel port |
| Power Supply Matching | Generic |
Final Thoughts
The RATTMMOTOR 4 Axis Nema 23 Stepper Motor Kit delivers a complete, well-matched CNC motion control solution designed for accuracy, smoothness, and long-term reliability. With high-torque Nema 23 motors, advanced DM556S digital drivers, a Mach3-compatible USB controller, and stable dual power supplies, it addresses the most critical needs of modern CNC systems.
Whether you are upgrading an existing machine or building a CNC router from the ground up, this kit offers the performance consistency, ease of integration, and precision control required for professional-quality results.
