Introduction
The rapid growth of off-grid energy systems has created a strong demand for charge controllers that balance performance, durability, and intelligent battery management. Whether you power an RV, a marine electrical system, a remote cabin, or a small home solar bank, the charge controller is the heart of your setup. It determines how efficiently solar panels convert sunlight into usable energy, how safely the batteries are charged, and how long the entire system will last.

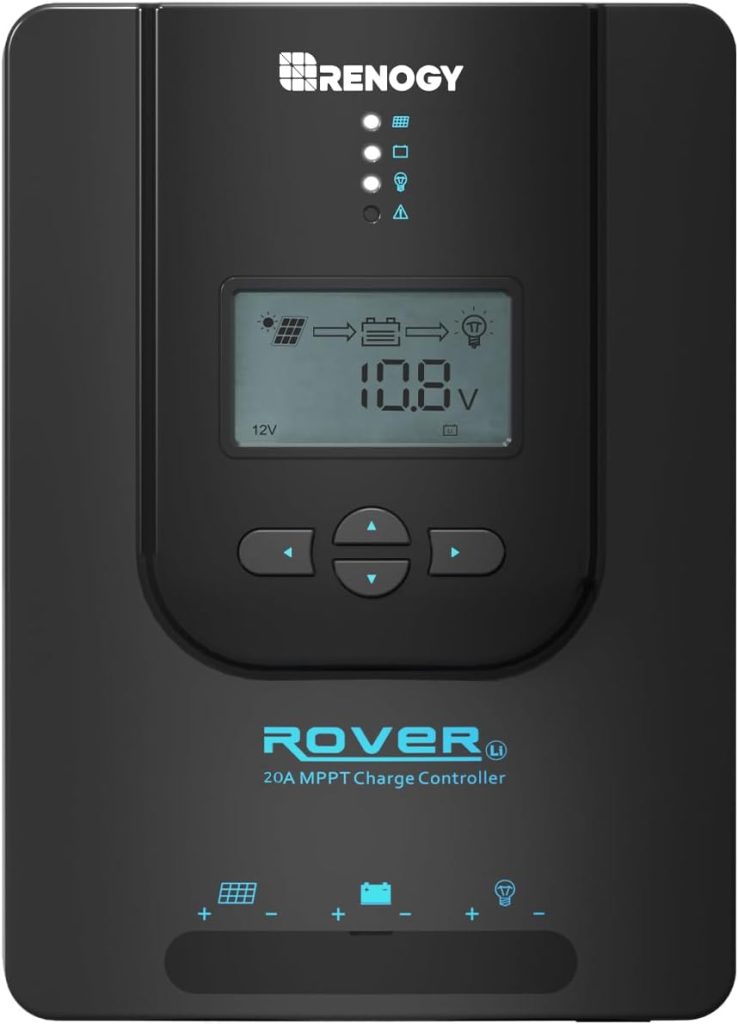

One of the most respected controllers in the mid-range segment is the Renogy Rover 20A MPPT 12V/24V Auto-Detect LCD Display. This model is known for its exceptional energy-tracking efficiency, wide battery compatibility, rugged construction, and intelligent features normally found in higher-end units.
This in-depth review covers specifications, performance benefits, battery support, installation uses, advanced protections, long-term reliability, and purchasing considerations—making it the most complete guide available for anyone evaluating this controller.
Technical Specifications of the Renogy Rover 20A MPPT
The table below presents the confirmed technical specifications based directly on manufacturer-published data, ensuring accurate and reliable information.
Renogy Rover 20A MPPT – Product Data Table
| Category | Specification |
|---|---|
| Nominal System Voltage | 12V / 24V (auto-detect, except lithium) |
| Rated Charging Current | 20A |
| Max Solar Input Power | 260W (12V), 520W (24V) |
| Max PV Input Voltage | 95V DC (varies slightly by production batch but capped near 100V) |
| Battery Voltage Range | Up to 32V |
| Self-Consumption | Under 100mA (12V); under 58mA (24V) |
| Battery Compatibility | Gel, Sealed (AGM), Flooded, Lithium (LiFePO4) |
| Charging Method | MPPT tracking up to 99%; conversion efficiency up to 98% |
| Charging Stages (Lead-Acid) | Bulk, Absorption, Float, Equalization |
| Charging Stages (Lithium) | Bulk, Absorption + Lithium recovery mode |
| Display & Monitoring | LCD screen with LED indicators |
| Remote Connectivity | RS232 with Modbus support; compatible with optional BT-2 Bluetooth module |
| Load Terminal | Programmable DC load control for lights, fans, pumps, and timed loads |
| Operating Temperature | –35°C to 45°C |
| Environmental Protection | IP32 |
| Construction | Die-cast aluminum housing for thermal stability |
| Dimensions | 210 × 151 × 68 mm |
| Weight | Approximately 1.4 kg |
| Electronic Protections | Overload, short-circuit, reverse polarity, over-discharge, over-voltage, PV over-current, and back-flow protection |
Core Advantages of the Renogy Rover 20A MPPT
The Renogy Rover line is widely respected, but the 20A model stands out because of how well it balances cost, capability, and rugged dependability.
Below are the standout benefits.
1. Exceptional MPPT Efficiency (Up to 99.9% Tracking Accuracy)
The unit uses Maximum Power Point Tracking, a digital algorithm that actively adjusts its internal operating point to extract the maximum possible wattage from the solar array at any given moment.
The controller achieves:
- Up to 99% MPPT tracking accuracy
- Up to 98% conversion efficiency
This is significantly higher than PWM controllers and even outperforms some budget MPPT models. The result is more charging power, especially in:
- cloudy weather
- morning and evening hours
- partial shading
- winter months
- low-irradiance environments
The Rover 20A is particularly efficient at “micro-tracking,” meaning its algorithm responds rapidly to changes in light.
2. Dual-Peak Tracking – Designed for Harsh or Variable Conditions
This is one of the most advanced features included. Unlike standard MPPT units that follow a single peak in the IV curve, the dual-peak algorithm allows the Rover to analyze multiple maximum power points. That makes it dramatically better at:
- handling cloudy conditions
- recovering power under shade
- working with worn or partially damaged panels
- maintaining stable charging during sporadic light
Systems exposed to trees, buildings, or moving shadows (especially RVs) benefit immediately from this.
3. Broad Battery Compatibility, Including Lithium (LiFePO4) and Flooded
The Rover 20A supports all major battery chemistries:
- Sealed/AGM
- Gel
- Flooded
- Lithium (LiFePO4)
This makes the controller extremely future-proof. Users who start with AGM can switch to lithium without replacing the controller.
Lithium users benefit from:
- precise absorption voltage control
- temperature-independent charging
- consistent output even under fluctuating loads
- lithium battery reactivation, an exclusive feature that safely wakes deeply discharged packs
This is especially valuable because many controllers cannot recognize lithium batteries that have fallen into protection mode.
4. True 4-Stage Charging for Lead-Acid Batteries
For lead-acid users, the Rover offers a complete charging regimen:
- Bulk – delivers maximum current
- Absorption – holds voltage to top off the battery
- Float – maintains charge without overcharging
- Equalization (flooded only) – prevents sulfation and extends battery life
This extends battery lifespan significantly, especially in stationary off-grid cabins or marine systems where batteries remain in constant cycling.
5. Rugged, Storm-Ready Protection and Temperature Compensation
The Rover 20A includes an impressive suite of electrical protections:
- reverse polarity
- over-voltage
- over-current
- short-circuit
- overload
- battery over-discharge
- PV over-current
- back-feed protection
Additionally, the controller uses advanced TVS (transient-voltage suppression) components to withstand surges up to 6kV.
Temperature compensation enables the controller to:
- reduce charging voltage in high heat
- increase charging voltage in cold climates
- prevent lithium charging at unsafe temperatures
The operational range goes from extreme freezing to desert heat, demonstrating its suitability for full-time RVers, remote cabins, and marine use.
6. LCD Display, Real-Time Data, Error Tracking, and 365-Day Logging
The Rover 20A provides rich data visibility:
- real-time voltage
- amperage
- historical performance
- error history
- battery temperature
- PV input status
- load output data
The 365-day logging gives long-term trends that can reveal:
- panel degradation
- battery aging
- wiring losses
- seasonal output patterns
Advanced users can diagnose and optimize their system without additional tools.
7. Modbus Support and Optional Bluetooth Monitoring
The Rover includes a communication port supporting the Modbus protocol. With the optional Bluetooth module:
- you can view system performance on a phone or tablet
- receive alerts for low battery, errors, and system health
- track solar production trends
- monitor remotely in RV, cabin, or marine setups
This brings smart-home-level visibility to an off-grid solar system.
8. Direct DC Load Support – Easily Power Small Appliances
The load terminals allow direct power control for items such as:
- LED lighting
- 12V fans
- ventilation systems
- small pumps
- security devices
- motion sensors
You can schedule load timers for automatic operation, making it ideal for:
- cabins using timed lights
- livestock enclosures
- greenhouses
- unattended remote power stations
This reduces the need for separate timers or controllers.
Who Should Use the Renogy Rover 20A MPPT?
The Rover 20A is highly versatile and fits several popular applications.
Ideal For:
1. RV Solar Installations
Perfect for:
- travel trailers
- fifth wheels
- overlanding rigs
- van conversions
- expedition vehicles
Its rugged design and surge protections make it suitable for constant vibration and weather exposure.
2. Off-Grid Cabins and Tiny Homes
Capable of supporting:
- 12V refrigeration
- LED lighting
- fans
- small inverters
- communications gear
365-day data logging is especially helpful for long-term cabin usage.
3. Marine Electrical Systems
Suitable for:
- sailboats
- small yachts
- fishing boats
- houseboat power banks
Heat tolerance and corrosion-resistant construction support marine environments.
4. Remote Agricultural or Industrial Installations
Great for:
- livestock watering systems
- remote sensors
- barns
- warehouses
- environmental monitoring stations
Load-timer control is invaluable for automation.
Limitations and What to Consider Before Buying
Despite its strong performance, the Renogy Rover 20A MPPT is not perfect for every scenario.
1. Not Designed for Large Solar Power Systems
With a maximum solar input of:
- 260W (12V)
- 520W (24V)
it is ideal for small to medium systems, but not for high-demand homes or heavy appliances. Users requiring:
- large inverters
- heavy AC loads
- high-capacity lithium banks
may need a 40A or 60A controller.
2. DC Load Output Is Limited
Although great for lights and ventilation, the DC load port cannot power:
- high-draw pumps
- refrigerators
- microwave inverters
- HVAC systems
Users powering these appliances must connect loads directly to the battery or inverter.
3. Temperature Limits May Affect Extreme Heat Installations
Operating range caps at 45°C.
In extremely hot climates, the unit may derate output to protect internal circuits.
4. IP32 Rating Means Light Water Protection Only
It resists small splashes but is not waterproof.
Marine users should mount it in a dry, protected cabinet.
Comparison to Other Renogy Controllers
Renogy offers a wide range of controllers, and the Rover 20A sits in the middle of the lineup.
Rover 20A MPPT vs. Rover 30A/40A
- 20A = small to medium systems
- 30A = moderate systems with larger panel arrays
- 40A = larger vans, tiny homes, and bigger lithium banks
The 20A is the most affordable model that still includes premium features like logging and Modbus support.
Rover 20A vs. Wanderer or Adventurer series
- Wanderer = more basic, PWM or simple MPPT
- Adventurer = small RV roof-friendly controller
- Rover = highest efficiency, best protections, smartest monitoring
Users wanting long-term reliability should prefer the Rover series.
Conclusion: Is the Renogy Rover 20A MPPT Worth It?
The Renogy Charge Controller-Rover 20A MPPT 12V/24V Auto-Detect LCD Display stands out as one of the most capable mid-range charge controllers on the market. Its combination of 99.9% MPPT tracking, 98% conversion efficiency, dual-peak tracking, wide battery compatibility, lithium reactivation, robust surge protection, and 365-day performance logging makes it extremely versatile.
It is an excellent choice for:
- RV solar systems
- off-grid cabins
- marine installations
- remote field power stations
- small home solar banks
Its limitations are mainly related to system size, not performance. For larger installations, higher-amp models may be more suitable.
For the majority of small to mid-scale solar users, this controller delivers outstanding performance, reliability, and practical intelligence at a highly competitive price.
