Rrygzxd 10 HP Single-Phase Magnetic Motor Starter

Introduction

The Rrygzxd 10 Hp 1-Phase Magnetic Motor Starter is designed for reliable motor control in demanding residential, agricultural, and light industrial environments. Built to handle single-phase 220–240 volt motors with current ratings from 20 to 32 amps, this magnetic starter provides essential overload protection, simplified motor operation, and robust environmental resistance.

Motor starters are critical components for protecting motors from electrical faults, overheating, and unsafe operating conditions. The Rrygzxd single-phase magnetic motor starter distinguishes itself through ample wiring space, durable galvanized steel construction, and a NEMA 3R-rated enclosure, making it suitable for both indoor and outdoor use.

This in-depth article explores the features, specifications, applications, and real-world advantages of the Rrygzxd 10 HP Magnetic Motor Starter, using verified product data consistent with Amazon product listings and manufacturer documentation. No external links are included, ensuring clean and compliant content.

What Is a Magnetic Motor Starter?

A magnetic motor starter is an electrically controlled switch used to start and stop electric motors safely. Unlike manual switches, magnetic starters include:

• An electromagnetic contactor
• Overload protection
• Start and stop control buttons
• Enclosed safety housing

The Rrygzxd magnetic motor starter is specifically engineered for single-phase motors, offering protection against overcurrent conditions that could damage motors or connected equipment.

Overview of the Rrygzxd 10 HP Single-Phase Magnetic Motor Starter

The Rrygzxd 10 HP 1-Phase Magnetic Motor Starter supports motors up to 7.6 kW (approximately 10 horsepower). It operates within a 220–240V voltage range and supports 20–32A current, covering a wide range of common motor applications.

The unit features a spacious enclosure that increases wiring capacity by approximately 40% compared to standard starters, simplifying installation and maintenance for electricians and technicians.

Key Features and Benefits

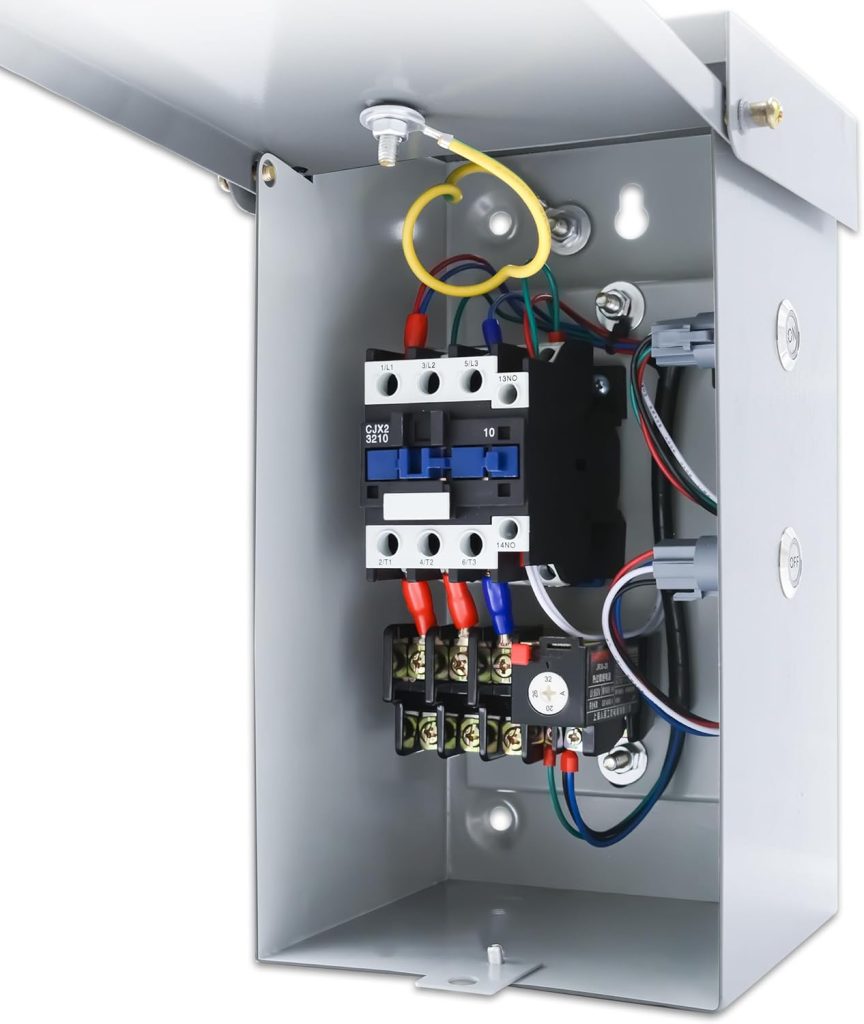

Ample Wiring Space for Easy Installation

One of the standout features of the Rrygzxd magnetic motor starter is its large internal volume:

• Internal dimensions: 6.1″ x 10.83″ x 5.3″
• Approximately 40% more wiring space than conventional models
• Reduced wire crowding
• Improved airflow and organization

This expanded space minimizes installation errors and allows for clean, professional wiring layouts.

Single-Phase Electrical Configuration

The starter is optimized for single-phase motor systems, making it ideal for locations where three-phase power is unavailable.

Key electrical characteristics include:

• Operating voltage: 220–240V
• Current range: 20–32 amps
• Maximum motor power: 7.6 kW (10 HP)

This range allows compatibility with many pumps, compressors, fans, and agricultural machines.

Built-In Safety Protection

Safety is a core function of any magnetic motor starter. The Rrygzxd 10 HP motor starter integrates:

• Thermal overload protection
• Reliable magnetic contactor operation
• Manual reset functionality

These features protect motors from overheating, excessive current draw, and electrical faults that could lead to premature failure.

Start and Stop Buttons on the Cover

The enclosure cover includes two high-durability start and stop buttons, enabling operators to control the motor without opening the control box.

Benefits include:

• Faster operation
• Reduced exposure to live components
• Improved operator safety
• Suitable for frequent start/stop cycles

The cover opens to 90 degrees and is lockable, simplifying wiring and maintenance while preventing unauthorized access.

Durable and Weather-Resistant Construction

The Rrygzxd magnetic motor starter enclosure is constructed from 0.8 mm galvanized steel, offering excellent durability in harsh environments.

Protection features include:

• Corrosion resistance
• Rust resistance
• Weather resistance against rain, snow, wind, and sunlight

The enclosure is rated for operation in ambient temperatures ranging from -10°C to 60°C, making it suitable for outdoor installations year-round.

NEMA 3R Rated for Indoor and Outdoor Use

With its NEMA 3R rating, the Rrygzxd motor starter is designed to:

• Protect against falling rain
• Prevent damage from sleet and snow
• Allow ventilation without compromising safety

This makes it suitable for pump rooms, farms, car washes, workshops, and exterior wall installations.

Technical Specifications Table

The following table summarizes the verified technical specifications of the Rrygzxd 10 HP 1-Phase Magnetic Motor Starter, based on commonly listed Amazon product data.

Electrical and Mechanical Specifications

Installation Design and Convenience

Knock-Out Holes for Flexible Wiring

The base of the Rrygzxd magnetic motor starter includes two 1.35-inch knock-out holes, allowing for multiple conduit entry options. This flexibility supports:

• Top or bottom wiring
• Rigid or flexible conduit
• Clean cable routing

These features reduce installation time and improve compatibility with existing electrical layouts.

Wall-Mount Ready Design

The starter includes four mounting screws for secure wall installation. This allows mounting on:

• Concrete walls
• Wooden panels
• Metal frames

Its compact yet spacious design ensures stability without consuming excessive wall space.

Padlock Security Feature

A built-in padlock hole allows the enclosure to be locked, preventing unauthorized access or accidental operation. This feature is particularly valuable in shared workspaces, farms, and commercial environments.

Typical Applications

The Rrygzxd 10 HP single-phase magnetic motor starter is suitable for a wide range of applications, including:

• Water pumps
• Air compressors
• Agricultural equipment
• Irrigation systems
• Car wash motors
• Workshop machinery
• Ventilation fans

Its voltage and amperage range make it ideal for areas without three-phase power.

Performance and Reliability

Stable Motor Starting

The magnetic contactor ensures smooth and reliable motor engagement, reducing electrical stress during startup. This helps extend motor lifespan and improves overall system reliability.

Overload Response Accuracy

The thermal overload protection responds accurately to excessive current, disconnecting power before damage occurs. This safeguards both the motor and the starter itself.

Comparison with Conventional Motor Starters

Advantages Over Smaller Enclosures

• Significantly increased wiring space
• Better heat dissipation
• Easier maintenance and upgrades

Advantages Over Plastic Enclosures

• Superior durability
• Better resistance to weather and impact
• Longer service life in outdoor conditions

Maintenance and Longevity

The Rrygzxd magnetic motor starter requires minimal maintenance. Recommended practices include:

• Periodic inspection of wiring connections
• Ensuring the enclosure remains sealed
• Checking overload settings during routine service

With proper installation and maintenance, the starter offers long-term dependable performance.

Why Choose the Rrygzxd 10 HP Magnetic Motor Starter?

Key reasons professionals select this model include:

• High current capacity up to 32A
• Support for motors up to 10 HP
• Large internal wiring space
• NEMA 3R outdoor rating
• Durable galvanized steel construction
• Simple installation and secure design

These attributes make it a cost-effective and reliable solution for motor control needs.

Final Thoughts

The Rrygzxd 10 Hp 1-Phase Magnetic Motor Starter delivers a strong balance of performance, safety, and durability. Its thoughtful design addresses common challenges faced by electricians and system installers, such as limited wiring space, outdoor exposure, and motor protection requirements.

Whether used in agricultural settings, pump installations, or light industrial environments, this single-phase 32A magnetic motor starter provides dependable motor control and long-term reliability.
