The STEPPERONLINE Integrated Stepper Motor Controller is a compact, high-performance motion control solution designed for engineers, automation specialists, CNC builders, and industrial system integrators who need reliability, precision, and simplified wiring. Known by its model name ISC04, this integrated controller combines a microprocessor-based stepper driver with a voltage-controlled speed interface, allowing direct mounting onto NEMA 17, NEMA 23, and NEMA 24 stepper motors.
This article delivers an in-depth, original, and easy-to-understand overview of the ISC04, its technical specifications, performance capabilities, real-world applications, and advantages over traditional stepper motor driver setups.

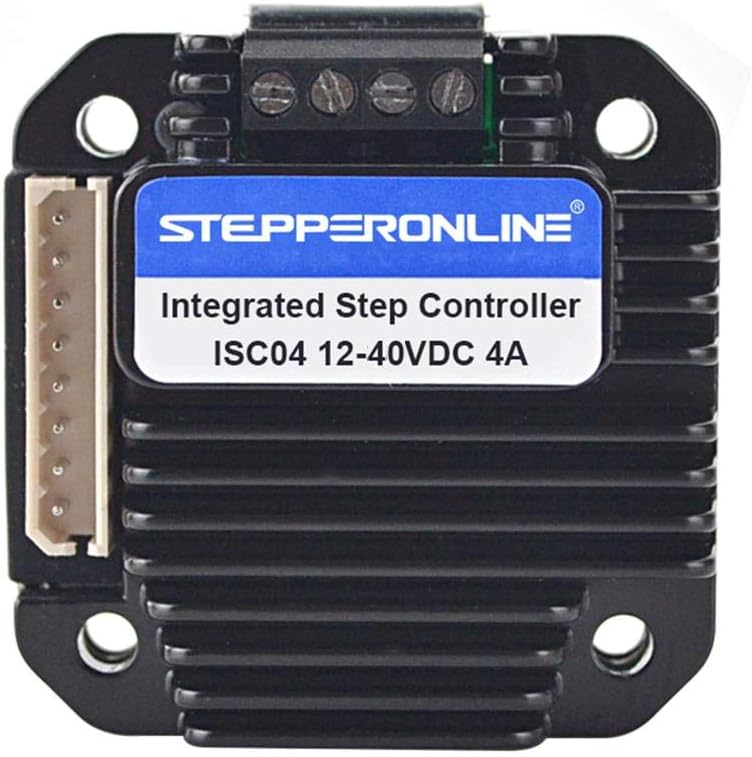

Overview of the STEPPERONLINE ISC04 Integrated Stepper Motor Controller
The ISC04 Integrated Stepper Motor Controller is engineered as a miniature, all-in-one solution that eliminates the need for separate stepper drivers, control boards, and complex wiring harnesses. By embedding a microprocessor directly into the controller, STEPPERONLINE has created a product that reduces system size while maintaining advanced motor control features.
At its core, the ISC04 operates using voltage-based speed control, supporting adjustable phase current between 1.5A and 4A with a 12โ40V DC input range. This makes it compatible with a wide range of stepper motors and power supplies commonly used in automation systems.
One of the standout features of this controller is its ability to accelerate rapidly. The onboard microprocessor can ramp motor speed up to 1250 RPM in approximately 0.3 seconds, offering smooth yet fast performance for demanding applications.
Key Features of the STEPPERONLINE Integrated Stepper Motor Controller
Embedded Microprocessor Control
The ISC04 integrates a microprocessor directly into the controller housing. This design allows precise management of motor speed, acceleration, and current output without requiring an external controller for basic motion tasks.
The embedded processor ensures:
- Smooth acceleration and deceleration profiles
- Stable speed control across varying loads
- Reduced risk of missed steps
- Consistent performance in industrial environments
This internal intelligence is especially beneficial for users who want dependable motor behavior without extensive programming.
Adjustable Phase Current from 1.5A to 4A
The adjustable phase current capability allows the ISC04 to support a broad range of stepper motors. By tuning the current to match motor specifications, users can optimize torque output while minimizing heat generation.
Current adjustment benefits include:
- Improved motor efficiency
- Reduced thermal stress on coils
- Extended motor lifespan
- Compatibility with multiple NEMA frame sizes
This flexibility makes the ISC04 suitable for both light-duty and medium-duty motion control systems.
Wide Input Voltage Range: 12โ40V DC
Supporting 12V to 40V DC input, the ISC04 accommodates various power supply configurations. Higher input voltages allow for better high-speed torque performance, while lower voltages are suitable for compact or energy-conscious systems.
This voltage range enables:
- Integration into existing control cabinets
- Use with standard industrial power supplies
- Enhanced motor responsiveness at higher speeds
Rapid Speed Ramp-Up Performance
One of the defining characteristics of the ISC04 is its rapid acceleration capability. The controller can increase motor speed to 1250 RPM in just 0.3 seconds, making it ideal for applications requiring quick response times.
Fast ramp-up performance is critical in systems such as:
- Automated pick-and-place machines
- Conveyor indexing systems
- High-speed labeling equipment
- Precision positioning stages
Despite its speed, the controller maintains smooth motion, reducing vibration and mechanical stress.
Dual Analog Speed Control Options
The ISC04 supports two analog speed control methods, giving users flexibility in how motor speed is set and adjusted.
External Potentiometer Control
An external potentiometer allows manual speed adjustment, making it easy to fine-tune motor behavior during setup or operation.
External Analog Voltage Control
For automated systems, speed can be controlled via an external analog voltage signal, enabling integration with PLCs, sensors, or other control electronics.
Both options allow precise speed regulation without digital communication protocols.
Seamless Mounting for NEMA 17, 23, and 24 Motors
The integrated mechanical design allows the ISC04 to be mounted directly onto NEMA 17, NEMA 23, and NEMA 24 stepper motors using adapting flanges. This direct mounting significantly reduces wiring complexity and saves installation time.
Benefits of seamless mounting include:
- Cleaner system layout
- Reduced electrical noise
- Lower risk of connection errors
- Compact overall footprint
Technical Specifications Table
Below is a clear and accurate technical overview of the STEPPERONLINE ISC04 Integrated Stepper Motor Controller, based on commonly listed Amazon product data.
| Specification | Details |
|---|---|
| Model | ISC04 |
| Controller Type | Integrated stepper motor controller |
| Phase Current | Adjustable 1.5A โ 4A |
| Input Voltage | 12 โ 40V DC |
| Speed Control | Analog voltage or potentiometer |
| Maximum Speed | Up to 1250 RPM |
| Acceleration Time | ~0.3 seconds to max speed |
| Motor Compatibility | NEMA 17, NEMA 23, NEMA 24 |
| Control Method | Voltage control |
| Processor | Embedded microprocessor |
| Mounting Type | Direct motor mounting with flanges |
Advantages of an Integrated Stepper Motor Controller
Reduced System Complexity
Traditional stepper motor setups require separate drivers, controllers, and wiring. The STEPPERONLINE Integrated Stepper Motor Controller simplifies this by combining multiple components into one unit.
This results in:
- Faster installation
- Reduced wiring errors
- Lower maintenance requirements
- Improved system reliability
Space-Saving Design
For applications with limited space, such as compact automation equipment or portable machinery, the ISC04โs integrated design is a major advantage. Mounting the controller directly on the motor eliminates bulky external enclosures.
Improved Electrical Performance
Shorter wiring paths reduce electromagnetic interference and signal loss. This leads to:
- More stable motor operation
- Reduced risk of electrical noise
- Better consistency in speed and torque
Cost-Effective Solution
By eliminating the need for separate drivers and control boards, the ISC04 can reduce overall system cost. Fewer components also mean fewer potential failure points.
Typical Applications of the ISC04 Controller
The STEPPERONLINE Integrated Stepper Motor Controller is versatile and suitable for a wide range of industries.
Industrial Automation
Used in automated machinery for positioning, indexing, and material handling tasks where consistent motion control is required.
CNC and Engraving Machines
The controllerโs smooth acceleration and adjustable current make it suitable for small to mid-sized CNC systems using NEMA frame motors.
Packaging and Labeling Equipment
Rapid ramp-up and stable speed control support high-throughput packaging lines.
Robotics and Actuators
Compact size and analog control options make the ISC04 ideal for robotic joints and linear actuators.
Laboratory and Medical Devices
Reliable motion control with minimal wiring is beneficial in controlled environments where space and cleanliness matter.
Performance and Reliability Considerations
The ISC04 is designed for continuous operation in demanding environments. Proper current tuning and adequate ventilation help ensure long-term reliability. The embedded microprocessor continuously manages speed and current delivery, helping prevent motor stalls and overheating.
Installation and Setup Overview
Although this article does not provide step-by-step instructions, typical installation involves:
- Selecting the appropriate NEMA motor frame
- Mounting the controller using the adapting flange
- Connecting the DC power supply
- Setting current and speed control parameters
The simplicity of this process is one of the ISC04โs strongest selling points.
Why Choose STEPPERONLINE
STEPPERONLINE is widely recognized for producing dependable motion control products. Their integrated solutions reflect a focus on usability, performance, and long-term reliability.
The STEPPERONLINE Integrated Stepper Motor Controller ISC04 stands out because it balances professional-grade features with ease of use, making it suitable for both experienced engineers and advanced hobbyists.
Final Thoughts
The STEPPERONLINE Integrated Stepper Motor Controller offers a powerful combination of compact design, flexible control, and high-speed performance. Its adjustable current range, wide voltage compatibility, and seamless mounting for NEMA 17, 23, and 24 motors make it a strong choice for modern automation systems.
By integrating the controller directly onto the motor, the ISC04 simplifies system architecture while delivering precise and responsive motion control. For applications requiring reliability, speed, and clean design, this controller represents a practical and efficient solution.
