When building a solar energy system — whether for an off-grid home, RV, boat, cabin or remote installation — choosing the right solar charge controller is critical. A quality controller maximizes power conversion, protects batteries, and ensures long-term reliable performance. The Victron SmartSolar MPPT 100/50 Solar Charge Controller stands out among MPPT controllers thanks to its efficient power tracking, flexible configuration, intelligent charging algorithms, and modern connectivity features.
What Is an MPPT Charge Controller and Why It Matters
A solar charge controller regulates the flow of energy from solar panels to batteries. The two main types are:
- PWM (Pulse Width Modulation) controllers — cheaper and simpler, but less efficient.
- MPPT (Maximum Power Point Tracking) controllers — more advanced, dynamically optimizing the solar panel output for maximum energy harvesting.
An MPPT controller continuously adjusts to the real-time voltage and current from the solar array, finding the “maximum power point.” It converts excess panel voltage into additional current, producing more usable energy — particularly when panel voltage significantly exceeds battery voltage, or when sunlight fluctuates (morning, evening, cloudy conditions, partial shade).
MPPT controllers typically yield substantially more usable energy than PWM units — often 20–30 % more under real-world conditions. For mid-size to moderately large solar setups, or any installation where efficiency and battery life matter, choosing MPPT over PWM is highly recommended.
The Victron SmartSolar MPPT 100/50 belongs to this advanced category, offering excellent efficiency and intelligent charging management.

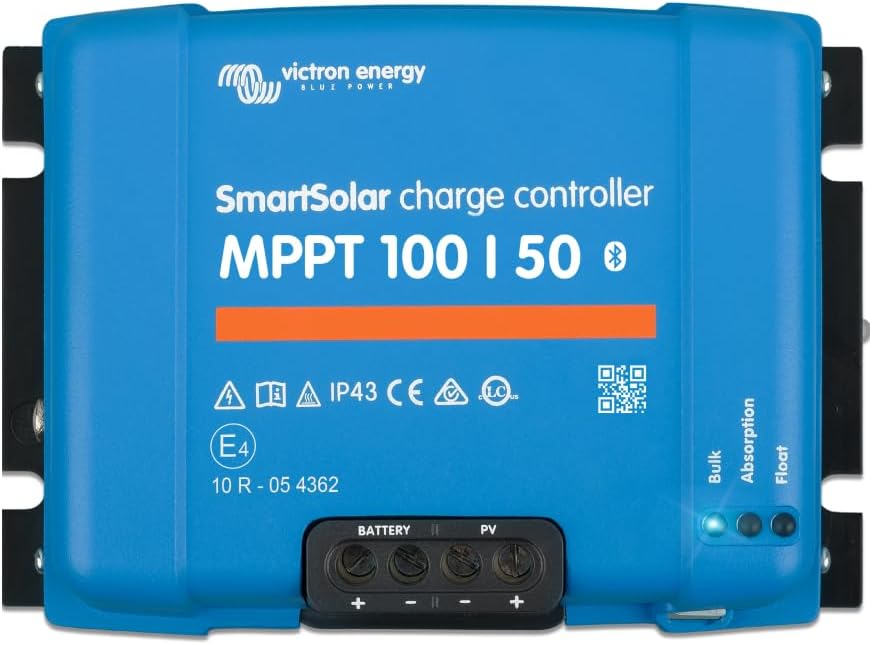

Overview — Victron SmartSolar MPPT 100/50: What It Offers
The Victron SmartSolar MPPT 100/50 is a robust, flexible, and efficient MPPT charge controller designed for 12-volt or 24-volt battery systems, automatic voltage detection, and a wide range of solar power inputs. Its smart features, safety protections, and connectivity make it suitable for a variety of solar installations, from small cabins to RVs to modest off-grid homes.
Key Features & Capabilities
| Feature | Description / Benefit |
|---|---|
| Battery Voltage Compatibility | Automatically selects 12 V or 24 V depending on the battery bank detected |
| Rated Charge Current | 50 A — adequate for many off-grid homes, RVs, cabins, boats, and small solar systems |
| Maximum Photovoltaic Input Voltage (PV) | Up to 100 V open-circuit from solar panels — allowing flexible panel configurations |
| Supported PV Input Power | ~700 W (for 12 V battery), ~1,400 W (for 24 V battery) under nominal conditions |
| MPPT Conversion Efficiency | Up to 98% — ensuring minimal energy loss and efficient charging |
| Charging Algorithm | Adaptive multi-stage charging: bulk, absorption, float (configurable, with multiple battery profiles) |
| Battery Types Supported | Common types: flooded lead-acid, AGM, gel, with correct configuration |
| Built-in Communication / Monitoring | Bluetooth support for remote monitoring and configuration via smartphone/tablet; data port available for external monitoring devices |
| Protections & Safety | Over-temperature protection, reverse polarity protection on PV input, short-circuit protection, reverse current protection, temperature compensation |
| Operating Range & Durability | Operating temperature −30 °C to +60 °C, compact and robust housing, suitable for rugged installations |
These capabilities make the SmartSolar 100/50 a versatile and dependable choice for many solar applications.
Technical Specifications — Detailed Data Table
| Specification | Value / Description |
|---|---|
| Battery Voltage (Auto-select) | 12 V or 24 V |
| Rated Charge Current | 50 A |
| Nominal PV Power (12 V) | 700 W |
| Nominal PV Power (24 V) | 1,400 W |
| Maximum PV Open-Circuit Voltage (Voc) | 100 V |
| Maximum PV Short-Circuit Current | 60 A |
| Maximum Conversion Efficiency | 98% |
| Self-Consumption (Idle) | ~30 mA (12 V), ~20 mA (24 V) |
| Charge Voltage — Absorption (Default) | 14.4 V (12 V) / 28.8 V (24 V) — adjustable |
| Charge Voltage — Float (Default) | 13.8 V (12 V) / 27.6 V (24 V) — adjustable |
| Temperature Compensation | −16 mV/°C (12 V) / −32 mV/°C (24 V) |
| Operating Temperature Range | −30 °C to +60 °C (full output up to ~40 °C) |
| Data Communication | Bluetooth + VE.Direct port for external monitoring |
| Terminal Connection Capacity | 16 mm² / AWG 6 |
| Enclosure Protection Rating | IP43 (electronics) / IP22 (connection area) |
| Weight | 1.3 kg |
| Dimensions (H × W × D) | 130 × 186 × 70 mm |
These specs come from official manufacturer documentation and vendor listings for the SmartSolar 100/50.
Advantages and Strengths — Why SmartSolar 100/50 Is a Strong Choice
Efficient Energy Harvesting Even Under Challenging Conditions
Thanks to its high-speed MPPT algorithm and up to 98% conversion efficiency, the SmartSolar 100/50 ensures that nearly all usable sunlight captured by the panels becomes charge current. This is especially important when solar conditions vary — for example:
- Partial shading of the panel array
- Cloud cover, haze, or morning/evening low light
- Cold weather or mixed temperature conditions
- Non-ideal panel orientation or modest-sized arrays
Under these less-than-perfect conditions, this controller can outperform simpler PWM units and many slower MPPT ones, making solar energy production more reliable and efficient in real-world use.
Automatic Voltage Detection — Easy Integration
The auto-detect feature for 12 V or 24 V battery systems simplifies installation. Whether your system is on a 12 V battery bank — common in RVs, boats, and smaller off-grid setups — or a 24 V bank for more capacity, the SmartSolar adjusts automatically. This reduces configuration errors and makes it easier to set up or expand.
Flexible and Adaptive Charging Algorithm
The multi-stage charging algorithm (bulk → absorption → float) adapts to battery condition, sunlight availability, and charging history. This helps:
- Safely charge batteries
- Avoid overcharging
- Extend battery lifespan
- Work properly with different battery types (lead-acid, AGM, gel) when configured correctly
Proper charging management is key to long-term battery health and overall system reliability.
Integrated Bluetooth Monitoring and Remote Configuration
Built-in Bluetooth enables connection to mobile devices for real-time monitoring and configuration. Through a dedicated app, users can:
- View current solar panel output, battery voltage, charging stage, and more
- Review historical performance data
- Adjust charging parameters to match battery type and usage pattern
- Update firmware and set warnings or alarms if needed
For remote installations, boats, cabins, or RVs — especially those without constant physical access — this feature is particularly useful.
Safety, Protection, and Reliability
The controller includes a robust set of protections: reverse polarity protection on PV input, short-circuit protection, temperature protection, reverse current protection, and temperature compensation. These safeguards help prevent damage due to wiring errors, harsh environmental conditions, or unexpected system behavior.
The sturdy enclosure, standard certification compliance, and compact size add to its reliability and suitability for real-world solar power systems.
Suitable for Many Real-World Applications
The SmartSolar 100/50 is well suited for:
- Small to medium off-grid homes or cabins
- RVs, caravans, boats with solar power systems
- Remote installations like agricultural buildings, monitoring stations, or small workshops
- Hybrid solar + battery + generator installations where efficient solar harvesting reduces generator use
- Energy-conscious users who want efficient solar charging without complex installation
For anyone seeking a balanced MPPT controller, combining performance, flexibility, safety, and modern connectivity, this model fits very well.
Practical Use Cases — When SmartSolar 100/50 Is a Good Fit
Here are some typical scenarios where this controller performs very well:
- Off-grid cabins or small houses — with modest solar panel arrays (around 700–1400 W), the SmartSolar 100/50 offers reliable charging and battery maintenance.
- RVs, caravans, and boats — for 12 V battery systems, this controller provides efficient charging and easy monitoring while on the move.
- Remote installations or monitoring stations — Bluetooth remote access enables checking system status without needing to visit the site frequently.
- Small workshops, agricultural outbuildings, or remote toolsheds — for moderate energy needs, this controller balances cost, efficiency, and reliability.
- Hybrid solar + generator systems — where solar is the primary energy source and generator backup is occasional; efficient solar charging reduces generator runtime and fuel consumption.
Limitations and What to Consider Before Buying or Installing
No product is perfect. While the SmartSolar 100/50 is powerful and flexible, there are some limitations or conditions where careful planning is required:
1. System Size and Panel Array Limits
- The controller supports up to 100 V PV input and nominal PV power of around 700 W (12 V) or 1,400 W (24 V). Larger solar arrays or higher-voltage solar panel configurations may exceed these limits.
- If you plan to expand your system significantly — especially beyond the ~1.4 kW solar input — a higher-capacity MPPT controller might be necessary.
2. Battery Voltage Limitation (12 V / 24 V)
- The SmartSolar 100/50 automatically selects either 12 V or 24 V battery voltage. It does not support 48 V or higher battery banks.
- For systems designed around 48 V or higher, a different controller must be chosen.
3. Proper Wiring, Sizing and Installation Required
- Correct wire gauge, proper fuse sizing, secure connections, and adherence to safety standards are essential. Mistakes in wiring or neglecting fusing can lead to damage.
- The PV array’s open-circuit voltage and short-circuit current must stay within the specified limits (100 V Voc, 60 A short-circuit current).
4. Battery Type Configuration Is Important
- While the controller supports common battery types (flooded lead-acid, AGM, gel), correct charging parameters (absorption voltage, float voltage, temperature compensation) must be selected.
- Incorrect settings can reduce battery life or lead to underperformance.
5. Moderate Output — Not for Large, High-Load Systems
- For very large homes, heavy electrical loads (e.g. air conditioning, heavy appliances), or systems requiring more than 1–2 kW solar input, the 50 A capacity and PV limits of this controller may be insufficient.
- In those cases, more powerful controllers or inverter + controller combinations should be considered.
Summary — Why Victron SmartSolar 100/50 Is a Top-Tier MPPT Controller
For many small to medium solar installations — off-grid cabins, boats, RVs, remote buildings, or modest home setups — the Victron SmartSolar MPPT 100/50 represents an excellent balance of performance, efficiency, features, and reliability. Its advanced MPPT algorithm yields high conversion efficiency with minimal losses, while adaptive charging and battery protection features ensure long battery life. Built-in Bluetooth monitoring adds modern convenience and remote control, and the controller’s safety protections and robust build quality make it durable for real-world conditions.
If your system uses a 12 V or 24 V battery bank and plans for modest to moderate solar input, this SmartSolar controller is one of the best choices available. It offers strong performance without unnecessary complexity, making it ideal for both first-time solar system users and experienced DIYers who prioritize reliability and efficiency.
For larger systems or higher voltage battery banks, you may need to consider a higher-capacity MPPT controller. But for many typical off-grid or mobile applications, the SmartSolar 100/50 hits the sweet spot between quality, flexibility, and value.
Who Should Choose SmartSolar 100/50 — Who Should Consider Something Else
Good Fit For:
- 12 V or 24 V battery systems (common in RVs, boats, cabins)
- Solar arrays up to ~700–1,400 W nominal PV input
- Off-grid cabins, small houses, workshops, remote toolsheds
- Mobile solar installations (RVs, boats) needing compact, efficient, and flexible charge control
- Users who value remote monitoring, easy configuration, and battery longevity
Less Suitable For:
- Systems requiring 48 V or higher battery banks
- Large, high-consumption homes or installations needing heavy loads
- Solar arrays that exceed ~1.5 kW PV input (depending on configuration)
- Situations where future expansion may push beyond the controller’s limits
Conclusion
The Victron SmartSolar MPPT 100/50 Solar Charge Controller is a versatile, efficient, reliable, and modern solution for many solar power systems. It brings together advanced MPPT technology, adaptive charging algorithms, battery protection, and remote monitoring in a compact package — ideal for off-grid homes, RVs, boats, cabins, small workshops, and other renewable energy setups.
For those setting up modest or medium solar installations with 12 V or 24 V battery banks, the SmartSolar 100/50 delivers strong value, long-term reliability, and efficient solar energy harvesting. It is a controller that balances performance, ease of use, safety, and flexibility — making it a top-tier choice for solar users who care about quality and longevity.
