Introduction
The WEITRANSX 500A 48V DC Motor Controller is a heavy-duty replacement controller designed for electric golf carts, utility vehicles, and industrial electric drive systems that originally use Curtis 1205 series controllers. Built to handle high current demands and deliver reliable motor control, this unit is specifically engineered to be compatible with multiple Curtis controller part numbers commonly found in EZGO golf carts.
This in-depth WEITRANSX 500A 48V DC Motor Controller review provides a clear, easy-to-understand analysis of its specifications, compatibility, performance, installation considerations, and real-world applications.
Product Overview

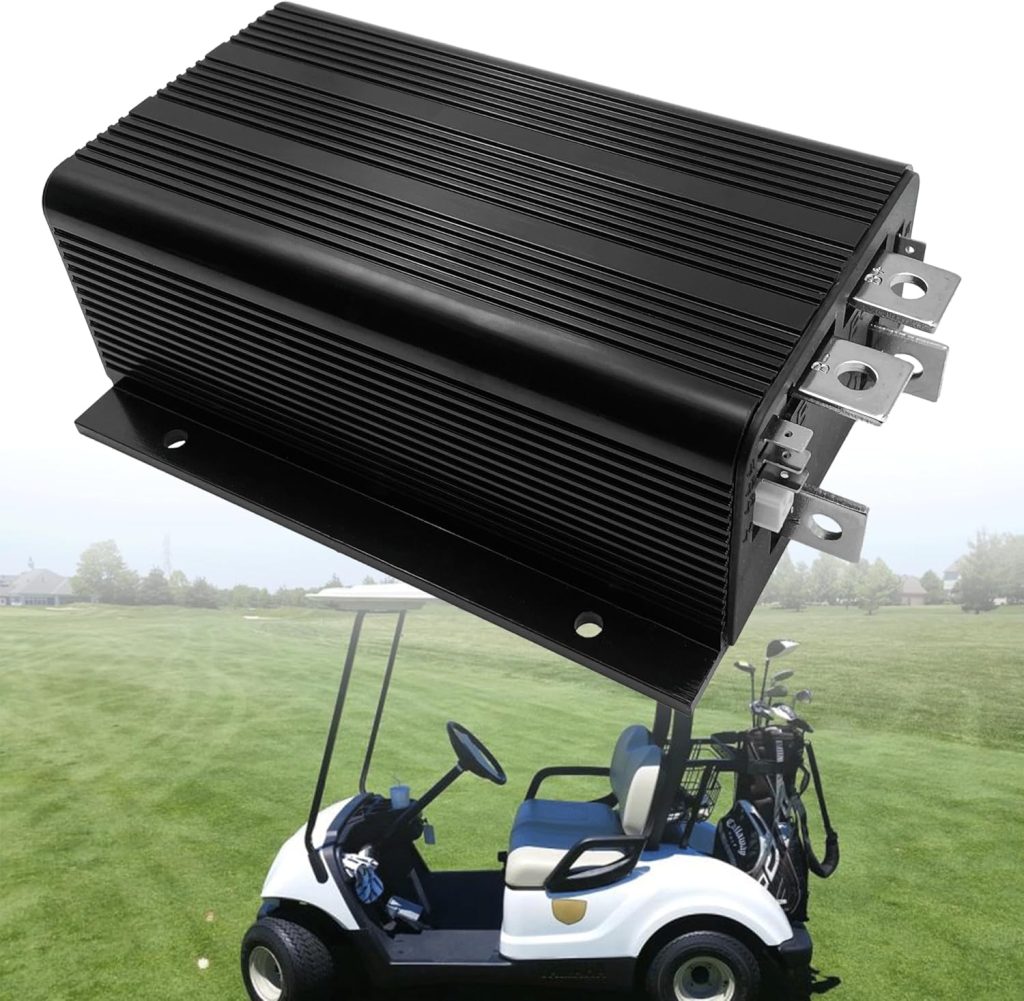

The WEITRANSX 500A motor controller is a 48V DC, 500-amp solid-state motor controller designed to replace or upgrade Curtis 1205 and 1205M series controllers. It regulates power delivery from the battery pack to the motor, controlling speed, acceleration, and overall drive behavior.
This controller supports a 0โ5kฮฉ throttle input, making it compatible with standard potentiometer-based accelerator systems used in many electric golf carts and light electric vehicles. Its high current capacity ensures strong torque output, smooth acceleration, and reliable performance under heavy load conditions.
Key Highlights
- Rated for 48V DC systems
- 500A maximum current capacity
- Compatible with multiple Curtis 1205 series part numbers
- Designed for EZGO golf carts
- Supports 0โ5kฮฉ throttle input
- Solid-state construction for durability
- Suitable for high-load electric drive systems
Compatible Part Numbers
Primary Compatible Part Numbers
The WEITRANSX 500A 48V DC Motor Controller is designed to replace or be compatible with the following part numbers:
- 1205M-5601
- 1205M-5603
- P125M-5603
- 1205-5305
- 1205-5603
- 1205-4601
- 1205-210
- 1205-211
- 1205-201
- 1205-209
- 1205M-6B402
Additional Compatibility Information
It is also compatible with Curtis 1205 and 1205M controller variants that share similar electrical and throttle specifications. This wide compatibility makes it a flexible replacement option for many EZGO golf cart models and other electric vehicles using Curtis-based systems.
Technical Specifications
Electrical Specifications Table
| Specification | Details |
|---|---|
| Product Type | DC Motor Controller |
| Rated Voltage | 48V DC |
| Maximum Current | 500A |
| Throttle Type | 0โ5kฮฉ |
| Motor Type | Brushed DC motor |
| Controller Series Compatibility | Curtis 1205 / 1205M |
| Application | EZGO golf carts, electric vehicles |
Physical and Functional Characteristics
| Feature | Description |
|---|---|
| Construction | Solid-state electronic controller |
| Cooling | Passive heat dissipation via housing |
| Control Method | Throttle-based speed regulation |
| Intended Use | Replacement or upgrade controller |
| Installation Type | Direct replacement with matching wiring |
Role of a DC Motor Controller in Golf Carts
What Does a Motor Controller Do?
In an electric golf cart, the motor controller acts as the central power management unit. It regulates how much electrical current flows from the battery pack to the motor based on throttle input.
The controller determines:
- Acceleration rate
- Maximum speed
- Torque output
- Energy efficiency
A high-quality controller like the WEITRANSX 500A ensures smooth operation, consistent power delivery, and protection for the motor and battery system.
Importance of High Current Capacity
A 500A rating allows the controller to deliver strong torque during acceleration, hill climbing, or when carrying heavy loads. This is especially important for modified or upgraded golf carts that require enhanced performance.
Throttle Compatibility and Control
0โ5kฮฉ Throttle Input Explained
The WEITRANSX controller uses a 0โ5kฮฉ throttle input, which is common in Curtis-based systems. This type of throttle uses a variable resistor to send position data to the controller.
Benefits of this throttle type include:
- Simple and reliable operation
- Smooth speed transitions
- Broad compatibility with existing systems
Ensuring throttle compatibility is critical when replacing a motor controller, as mismatched throttle types can cause erratic behavior or non-operation.
Build Quality and Design
Solid-State Reliability
The WEITRANSX motor controller uses solid-state electronics with no mechanical switching components. This design provides:
- High reliability
- Reduced wear and tear
- Faster response time
- Consistent performance over long periods
Solid-state controllers are especially well-suited for electric vehicles that operate in varying conditions and duty cycles.
Thermal Management
Although compact, the controller housing is designed to dissipate heat effectively during normal operation. Proper installation in a ventilated area helps maintain safe operating temperatures, especially during high-current use.
Installation Considerations
Direct Replacement Design
The WEITRANSX 500A 48V DC Motor Controller is designed as a direct replacement for Curtis 1205 series controllers. In most cases, existing mounting points and wiring harnesses can be reused.
Important Installation Notes
Before purchasing and installing this controller, it is essential to:
- Verify the existing controller part number
- Confirm system voltage is 48V
- Ensure throttle type is 0โ5kฮฉ
- Inspect wiring and connectors for damage
Incorrect installation or incompatible systems may result in improper operation or damage.
Performance Expectations
Acceleration and Torque
With a 500A current capacity, users can expect:
- Strong initial acceleration
- Improved hill-climbing ability
- Stable torque delivery under load
This makes the controller suitable for both stock and moderately upgraded golf carts.
Smooth Speed Control
Throttle input is translated into smooth, predictable motor response. This improves driving comfort and reduces stress on drivetrain components.
Reliability in Daily Use
When used within rated specifications, the controller provides consistent performance for daily driving, fleet use, or recreational operation.
Applications
EZGO Golf Carts
The primary application for this controller is EZGO electric golf carts that originally use Curtis 1205 or 1205M controllers. It serves as a reliable replacement when the original unit fails or needs upgrading.
Utility and Fleet Vehicles
Beyond golf carts, this controller can be used in:
- Electric utility vehicles
- Campus transportation carts
- Industrial personnel carriers
Any vehicle using a compatible 48V brushed DC motor system may benefit from this controller.
Comparison with Original Curtis Controllers
Replacement Value
While Curtis controllers are widely respected, replacement costs can be high. The WEITRANSX controller offers a cost-effective alternative while maintaining compatibility with existing systems.
Functional Comparison Table
| Feature | WEITRANSX 500A | Curtis 1205 Series |
|---|---|---|
| Voltage Rating | 48V | 48V |
| Current Rating | 500A | 500A (varies by model) |
| Throttle Type | 0โ5kฮฉ | 0โ5kฮฉ |
| Compatibility | Multiple 1205 models | Model-specific |
| Replacement Cost | Typically lower | Typically higher |
Advantages and Limitations
Advantages
- High 500A current capacity
- Broad compatibility with Curtis 1205 series
- Designed specifically for EZGO golf carts
- Solid-state reliability
- Smooth throttle response
- Suitable for replacement or upgrade
Limitations
- Limited to 48V systems
- Designed for brushed DC motors only
- Requires careful compatibility verification before purchase
Safety and Compatibility Notes
Importance of Verification
The manufacturer emphasizes the importance of verifying compatibility before purchase. Golf cart electrical systems can vary by year and model, even within the same brand.
Ensuring correct voltage, throttle type, and wiring configuration is essential for safe operation.
Support and After-Sales Assurance
The product includes access to customer care and technical support. This adds peace of mind for buyers who may need assistance during installation or troubleshooting.
Maintenance and Longevity
Minimal Maintenance Requirements
As a solid-state controller, the WEITRANSX unit requires minimal maintenance. Regular checks should include:
- Secure electrical connections
- Clean mounting area
- Adequate ventilation
Expected Service Life
With proper installation and use within rated limits, the controller is designed for long-term service in electric vehicle applications.
Who Should Choose This Controller?
The WEITRANSX 500A 48V DC Motor Controller is ideal for:
- EZGO golf cart owners
- Fleet maintenance technicians
- Electric vehicle repair shops
- Users replacing failed Curtis controllers
- Owners seeking a compatible, cost-effective solution
Final Verdict
The WEITRANSX 500A 48V DC Motor Controller is a powerful and reliable replacement option for Curtis 1205 and 1205M series controllers used in EZGO golf carts. With its high current capacity, correct throttle compatibility, and solid-state design, it delivers dependable performance for everyday use and demanding conditions.
This WEITRANSX 500A 48V DC Motor Controller review confirms that the product is a practical choice for users seeking a compatible, high-performance controller without the complexity of system modifications.
