Integrated Wiring Harness Designed to Connect Essential Electric Bike Components
Electric bicycles rely on several interconnected electronic components to function smoothly. The controller, display, throttle, brake sensors, and lighting system must communicate efficiently to ensure reliable performance and rider safety. To make these connections simple and organized, e-bike manufacturers use integrated wiring harnesses that combine multiple connections into a single cable.
The XBERSTAR Electric Bike 1T5 Waterproof Cable is designed as a complete integration cable for electric bike systems using KT controllers. Instead of running several individual wires across the bike frame, this cable combines multiple connectors into a single harness that links the controller to essential components such as the display, throttle, brake levers, and headlight.
With waterproof connectors, a 180 cm cable length, and clearly defined plug types, the cable simplifies installation while protecting sensitive electrical connections from moisture and environmental damage.
In this comprehensive review, we will explore the features, specifications, functionality, installation process, compatibility, and advantages of the XBERSTAR 1T5 Waterproof E-Bike Cable, helping riders and builders understand why this accessory is essential for maintaining a reliable electric bicycle system.
Product Overview

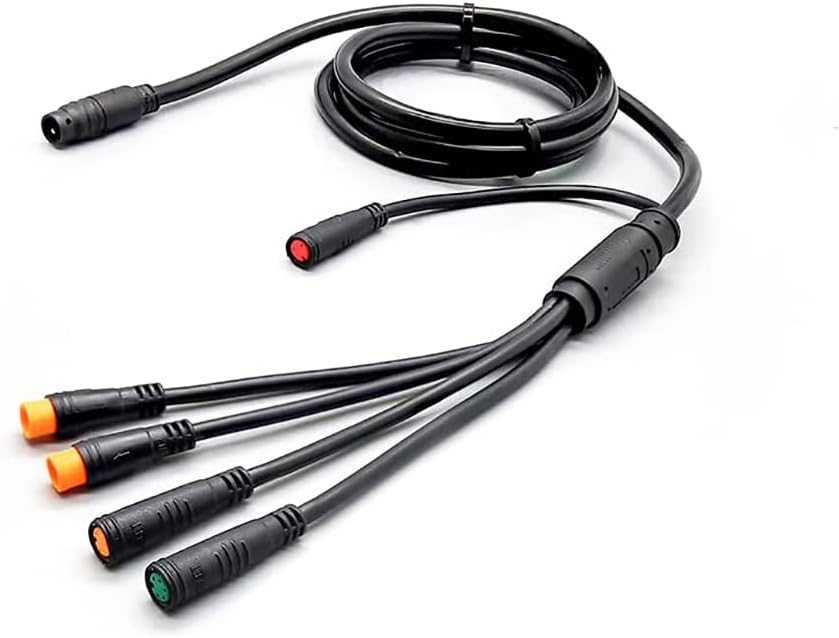

The XBERSTAR 1T5 Waterproof Cable is a multi-connector wiring harness designed for electric bicycles that use KT controller systems.
The cable acts as a central hub that connects several electronic components to the controller. By consolidating these connections into a single cable, it improves cable management and reduces the complexity of wiring installations.
The cable includes connectors for:
- Display
- Throttle
- Brake levers
- Headlight
- Controller
Because these connections are integrated into one harness, installation becomes faster and the final wiring setup appears cleaner and more organized.
This type of cable is particularly useful for electric bike conversions and repair projects where multiple components need to be connected efficiently.
Product Data Table
| Feature | Details |
|---|---|
| Product Name | XBERSTAR Electric Bike 1T5 Waterproof Cable |
| Brand | XBERSTAR |
| Cable Type | Integrated e-bike wiring harness |
| Compatibility | KT controller electric bike systems |
| Cable Length | 180 cm (70.8 inches) |
| Controller Connector | 8-pin male (black) |
| Display Connector | 5-pin female (green) |
| Throttle Connector | 3-pin female (yellow) |
| Brake Lever Connector | 3-pin male (yellow) |
| Headlight Connector | 2-pin female (red) |
| Waterproof Rating | Waterproof connectors |
| Application | Connects controller, display, throttle, brake levers, and headlight |
Understanding the Role of an E-Bike Integration Cable
An electric bicycle contains several electronic components that must communicate with the controller. Each component requires its own wiring connection, which can quickly lead to a tangled network of cables if not properly organized.
The XBERSTAR 1T5 Waterproof Cable solves this problem by combining multiple connections into a single harness.
Components Connected Through the Cable
The cable links the following parts of the electric bike system:
- Motor controller
- Handlebar display
- Throttle
- Brake sensors
- Front headlight
By using a single integrated cable, the electrical system becomes easier to manage and maintain.
Waterproof Design for Outdoor Riding
Electric bikes are frequently exposed to outdoor conditions such as rain, dust, and humidity. Moisture entering electrical connectors can cause system failures or unreliable performance.
The XBERSTAR 1T5 Waterproof Cable addresses this concern with waterproof connectors that help protect sensitive wiring.
Benefits of Waterproof Connectors
Protection Against Rain
The sealed connectors prevent water from entering electrical contact points during wet riding conditions.
Improved Reliability
Dry electrical connections reduce the risk of signal interruption or component malfunction.
Longer Component Lifespan
By preventing corrosion inside connectors, waterproof protection helps extend the life of the electrical system.
This makes the cable suitable for commuters and off-road riders who frequently encounter unpredictable weather.
Integrated 1T5 Wiring System
The 1T5 configuration refers to a cable design that connects one controller output to five different electronic components.
This design simplifies the wiring layout of an electric bike.
Advantages of the 1T5 Integration System
Reduced Cable Clutter
Instead of multiple cables running from the controller, a single harness manages the connections.
Simplified Installation
Riders or technicians can quickly identify and connect each component using color-coded connectors.
Improved Cable Organization
The integrated design keeps the wiring system neat and compact along the bike frame.
This system is particularly beneficial for electric bike conversions where the builder must connect several independent components.
Connector Configuration
The XBERSTAR 1T5 Waterproof Cable includes several connectors designed to interface with common e-bike components.
Each connector has a specific function and color coding to simplify installation.
Controller Connector
- 8-pin male connector
- Color: Black
This connector links the cable harness directly to the e-bike controller.
The controller acts as the brain of the electric bike system, coordinating signals between the motor, throttle, display, and sensors.
Display Connector
- 5-pin female connector
- Color: Green
The display connector links the handlebar display to the controller.
Through this connection, the display receives data such as speed, battery level, and riding information.
The display also sends commands to the controller, including changes to pedal assist levels.
Throttle Connector
- 3-pin female connector
- Color: Yellow
The throttle connector allows riders to control motor power directly using a handlebar throttle.
When the throttle is engaged, the controller receives a signal that activates the motor.
Brake Lever Connector
- 3-pin male connector
- Color: Yellow
Electric bike brake levers often include sensors that communicate with the controller.
When the rider pulls the brake lever, the sensor signals the controller to cut motor power immediately.
This safety feature prevents the motor from continuing to drive the wheel during braking.
Headlight Connector
- 2-pin female connector
- Color: Red
The headlight connector allows the electric bike system to power a front light directly from the controller.
This connection ensures that the headlight can be controlled from the display or power system.
Cable Length and Installation Flexibility
The XBERSTAR 1T5 Waterproof Cable features a 180 cm length, providing sufficient reach for most electric bike frames.
This length allows the cable to run from the controller, typically mounted near the frame or battery, up to the handlebars where the display and throttle are located.
Benefits of the 180 cm Cable Length
- Fits most electric bike frame sizes
- Allows flexible cable routing
- Helps maintain clean wiring layouts
- Reduces tension on connectors
Proper cable length is essential to avoid strain on connectors and ensure smooth installation.
Compatibility with KT Controller Systems
The XBERSTAR 1T5 Waterproof Cable is designed specifically for electric bike systems that use KT controllers.
KT controllers are widely used in electric bike conversion kits and aftermarket upgrades.
Why KT Controllers Are Popular
KT controllers are known for their:
- Reliable motor control
- Compatibility with many displays
- Customizable settings
- Wide availability in e-bike kits
Because the cable is designed for these systems, the connectors match the typical configuration used in KT-based electric bikes.
Durable Construction for Long-Term Use
Electric bike cables must withstand vibration, outdoor conditions, and frequent movement during riding.
The XBERSTAR 1T5 Waterproof Cable is built with durable materials that help protect internal wiring.
Durability Features
Reinforced Cable Insulation
Protects internal wires from damage caused by bending or abrasion.
Secure Connectors
Prevents accidental disconnection during riding.
Weather-Resistant Materials
Helps the cable maintain performance in different environmental conditions.
These features contribute to a longer lifespan for the cable and the connected components.
Installation Process
Installing the XBERSTAR 1T5 Waterproof Cable is typically straightforward for riders familiar with e-bike systems.
Basic Installation Steps
- Turn off the electric bike and disconnect the battery.
- Connect the 8-pin controller connector to the motor controller.
- Attach the display connector to the handlebar display.
- Connect the throttle connector to the throttle unit.
- Attach the brake connectors to the brake lever sensors.
- Plug in the headlight connector if the bike includes a compatible light.
- Route the cable along the bike frame and secure it using cable ties.
Once connected, the integrated harness allows all components to communicate with the controller.
Advantages of Using an Integrated Wiring Harness
Using a cable like the XBERSTAR 1T5 Waterproof Cable offers several advantages compared to using separate wires for each component.
Improved Organization
The single harness keeps wiring neat and easier to manage.
Faster Installation
Pre-configured connectors eliminate the need for custom wiring.
Reduced Wiring Errors
Color-coded connectors help ensure that each component is connected correctly.
Easier Maintenance
If a component needs to be replaced, the cable system makes disconnection simple.
Ideal Applications
The XBERSTAR 1T5 Waterproof Cable is suitable for several types of electric bike projects.
Electric Bike Conversion Kits
Builders assembling DIY e-bikes often need integrated wiring to connect multiple components.
E-Bike Repairs
Replacing a damaged cable harness can restore proper communication between components.
Upgrading Older E-Bikes
Older electric bike systems can benefit from improved wiring organization and waterproof connectors.
Who Should Consider This Cable
This cable is especially useful for riders and technicians working with KT controller systems.
DIY Electric Bike Builders
Individuals building custom e-bikes will appreciate the simplified wiring system.
Electric Bike Repair Technicians
Repair specialists can use this cable as a replacement harness for damaged wiring systems.
Electric Bike Enthusiasts
Riders upgrading their bike electronics may need a reliable integration cable to connect new components.
Final Verdict
The XBERSTAR 1T5 Waterproof E-Bike Cable is a practical and essential component for electric bicycles using KT controller systems.
Its integrated 1T5 wiring design simplifies the connection of multiple electronic components, including the display, throttle, brake sensors, and headlight.
The 180 cm cable length provides flexibility for installation on various frame sizes, while waterproof connectors protect the system from moisture and environmental exposure.
With clearly labeled connectors and durable construction, the cable helps maintain reliable communication between key e-bike components.
For riders building or maintaining electric bike systems, the XBERSTAR 1T5 Waterproof Cable offers a convenient and dependable solution for organizing and protecting electrical connections.
