Introduction

The Xinwoer 0–100% PWM DC Motor Speed Controller is designed for users who need precise, reliable, and industrial-grade control over DC brush motors and other DC-powered loads. Whether used in conveyor systems, cooling fans, treadmills, exhaust blowers, or DC heating and lighting systems, this controller offers a combination of high current handling, wide voltage compatibility, and efficient pulse-width modulation control.

This in-depth review explores the design, performance, technical specifications, real-world applications, and practical benefits of the Xinwoer PWM DC motor speed controller, helping engineers, technicians, hobbyists, and industrial buyers understand whether it is the right solution for their needs.

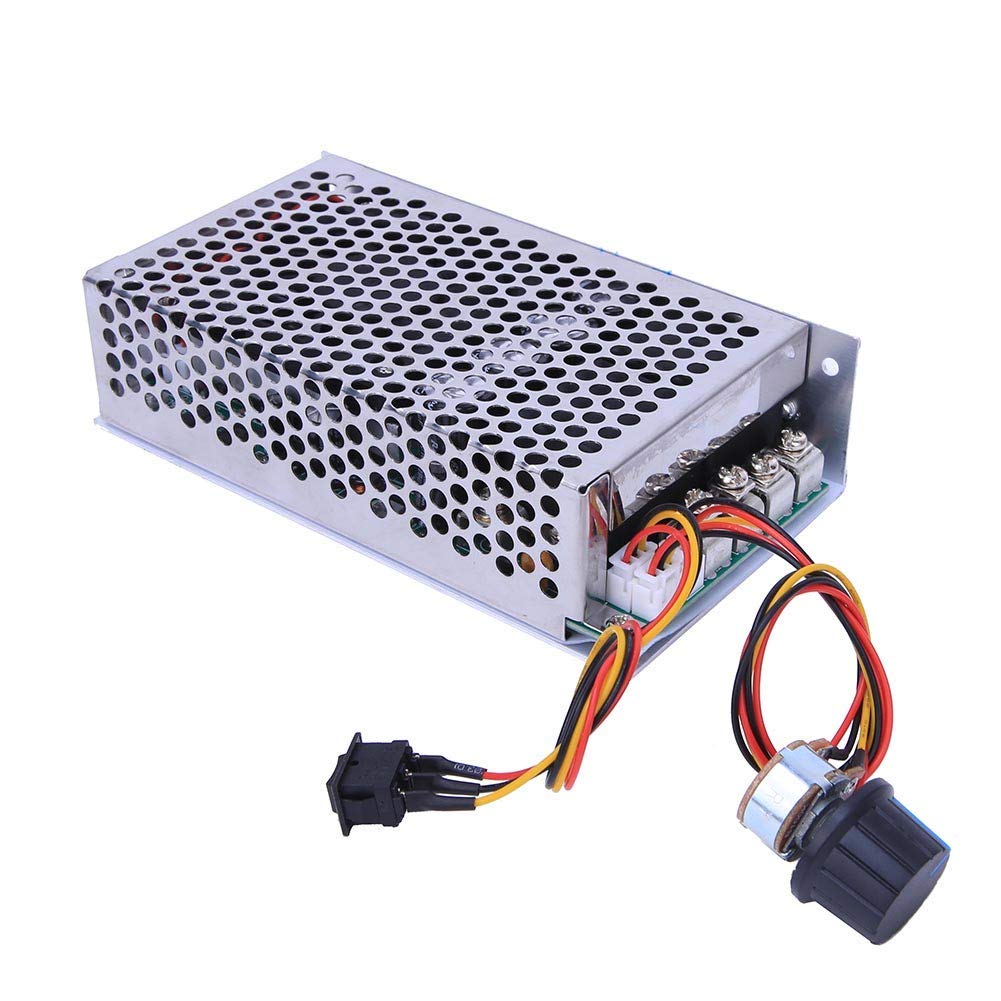

Overview of the Xinwoer PWM DC Motor Speed Controller

The Xinwoer DC motor speed controller operates on a PWM (Pulse Width Modulation) principle, allowing smooth and accurate speed regulation from 0% to 100%. It supports DC input voltages from 10V to 50V and is capable of handling high loads, with a rated current of 60A and a peak current of 100A.

Unlike low-cost consumer-grade controllers, this model is built for industrial environments. It maintains stable performance even in demanding conditions, including low temperatures below freezing, making it suitable for workshops, factories, and outdoor enclosures.

Key Features at a Glance

• 0–100% PWM DC motor speed control
• Wide working voltage range: DC 10V–50V
• Rated current: 60A; Peak current: 100A
• Maximum control power: up to 5000W
• Ultra-low quiescent current (0.04A)
• Industrial-grade operating temperature range
• Compatible with DC brush motors, lamps, heaters, and fans

Technical Specifications Table (Amazon Listing Data)

Understanding PWM Motor Speed Control

The PWM DC motor speed controller regulates motor speed by rapidly switching the power supply on and off. Instead of reducing voltage directly, PWM adjusts the duty cycle—the percentage of time the signal stays “on” during each cycle.

Benefits of PWM Control

• High efficiency with minimal energy loss
• Consistent torque at low speeds
• Reduced heat generation
• Smooth speed transitions

The Xinwoer 0–100% PWM DC motor speed controller uses a full-range duty cycle, allowing fine control from complete stop to maximum speed without sudden jumps.

Power Handling and Electrical Performance

One of the most impressive aspects of this controller is its power capacity. With support for loads up to 5000W, it stands out among DC motor speed regulators in its class.

Current Handling Capabilities

• 60A rated current ensures safe continuous operation
• 100A peak current supports startup surges and heavy loads

This makes the controller suitable for motors with high inrush currents, such as treadmill motors and industrial exhaust fans.

Quiescent Current Efficiency

The quiescent current is just 0.04A, meaning the controller consumes minimal power when idle. This is particularly beneficial in battery-powered systems and energy-sensitive installations.

Build Quality and Industrial Design

The Xinwoer industrial motor speed regulator is designed for durability and reliability. The internal components are selected to withstand continuous operation under load, while the housing allows efficient heat dissipation.

Temperature Tolerance

Operating normally between -20°C and 40°C, this controller performs reliably even in cold environments. Industrial-grade components ensure consistent behavior when temperatures drop below freezing, a critical requirement for outdoor or unheated facilities.

Application Scenarios

The versatility of the Xinwoer PWM DC motor speed controller is one of its strongest advantages. Below are its most common and practical use cases.

DC Brush Motor Control

This controller is specifically engineered for DC brush motors, providing smooth and precise speed regulation without damaging motor windings.

Common motor applications include:

• Conveyor belt motors
• Treadmill motors
• Industrial exhaust blower motors
• Cooling fan motors

Automotive and Vehicle Systems

With its wide voltage range, the controller is suitable for various automotive and vehicle-related applications:

• Car cooling fan motors
• Automotive air conditioning motors
• Auxiliary DC motor systems

Industrial Ventilation and Exhaust Systems

In production facilities, speed regulation of exhaust and ventilation fans is critical for energy efficiency and noise reduction.

Applications include:

• Pipe exhaust fan speed regulation
• Electronic fan speed control
• Parallel control of multiple computer fans

Conveyor Belt Speed Regulation

The Xinwoer DC motor speed controller is widely used in production lines for conveyor belt systems. Adjustable speed allows precise control of workflow, product spacing, and material handling efficiency.

DC Lamp Dimming and Heater Control

Beyond motor applications, this controller can also be used for:

• DC lamp dimming, offering smooth brightness adjustment
• DC heater power regulation, allowing precise thermal control

This multifunction capability adds value for users who need a flexible DC power control solution.

Ease of Installation and Operation

The controller is designed for straightforward integration into DC systems. Clear terminal labeling and a simple control interface allow for quick setup, even for users with moderate technical experience.

Control Interface

• Rotary knob for speed adjustment
• Linear response from 0% to 100%
• Stable output without flicker or surging

Once installed, users can easily fine-tune motor or load speed to match specific operational requirements.

Safety and Reliability Considerations

The Xinwoer PWM DC motor speed controller is built with safety in mind. Its high current capacity and industrial-grade components reduce the risk of overheating or electrical failure when properly installed.

Best Practices for Safe Use

• Match input voltage to system requirements
• Ensure adequate cooling and ventilation
• Use appropriately rated wiring for high-current applications
• Avoid exceeding the rated current during continuous operation

Following these guidelines helps maximize service life and operational safety.

Comparison with Standard DC Motor Speed Controllers

Compared to entry-level DC motor controllers, the Xinwoer model offers:

• Significantly higher power capacity
• Wider voltage compatibility
• Industrial-grade temperature tolerance
• Lower quiescent current
• Broader application support

These features position it as a professional-grade solution rather than a hobby-only component.

Advantages and Limitations

Advantages

• High power output up to 5000W
• Wide DC voltage range
• Precise 0–100% PWM control
• Industrial-grade temperature performance
• Multi-application compatibility

Limitations

• Designed specifically for DC brush motors
• Requires proper wiring and load matching due to high current capability

Who Should Use This Controller?

The Xinwoer 0–100% PWM DC motor speed controller is ideal for:

• Industrial technicians and engineers
• Production line operators
• Automotive system builders
• Treadmill and fitness equipment repair professionals
• DIY users with high-power DC motor projects

It is particularly well-suited for users who need dependable speed regulation under demanding electrical and environmental conditions.

Final Verdict

The Xinwoer 0–100% PWM DC Motor Speed Controller delivers a powerful combination of efficiency, durability, and versatility. With support for high current loads, precise PWM control, and industrial-grade construction, it stands out as a reliable solution for both industrial and advanced DIY applications.

For users seeking a high-capacity DC motor speed regulator that performs consistently across a wide range of applications—from conveyor belts to ventilation systems—this controller represents a solid and dependable choice.
