A professional RC crane engineered for lifting power, precision control, and industrial realism

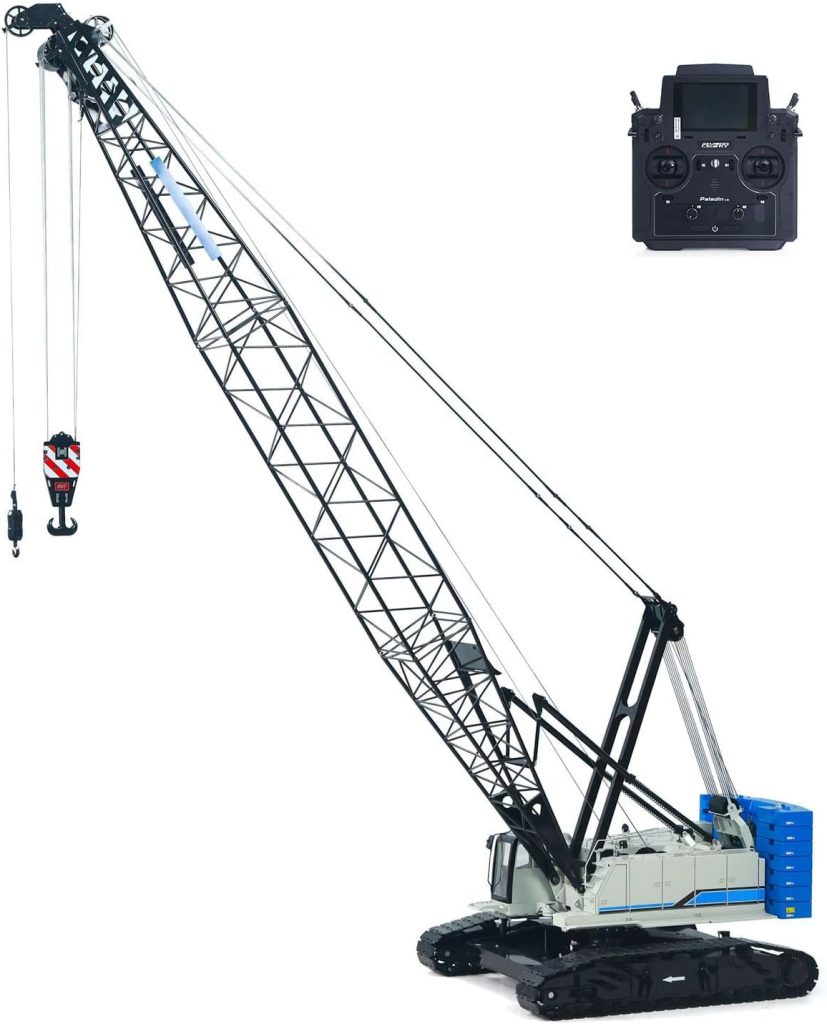

The TOUCAN RC HOBBY Metal 1/14 RC Hydraulic Crawler Crane C1200 is one of the most advanced and technically impressive construction models available in the RC world today. Designed for experienced hobbyists and collectors, this large-scale crane combines hydraulic engineering, brushless motor performance, and modular construction into a highly realistic and functional machine.
Unlike standard RC vehicles, this crane is built to replicate the real-world behavior of heavy lifting equipment. From its hydraulic pump system to its planetary gearbox-driven mechanisms, every component is carefully engineered to deliver precision, strength, and durability.
In this comprehensive review, we will explore every aspect of the C1200 crawler crane, including its construction, hydraulic system, lifting capabilities, control system, and overall value.
Product Overview and First Impressions
The TOUCAN RC C1200 crawler crane immediately stands out due to its robust structure and industrial design. Its size, weight, and mechanical complexity reflect a model that is intended for serious users rather than casual play.
With dimensions of approximately 33.49 x 31.13 x 24.82 inches, the crane offers a compact yet powerful footprint. Despite being smaller than some heavy RC equipment, its 64.5 kg weight and 45 kg lifting capacity make it an incredibly capable machine.
The inclusion of a Flysky PL18 LITE radio system ensures precise and responsive control over multiple functions, making it suitable for complex lifting operations.
Product Data Table
Below is a detailed specification table based on the product’s official information:
| Feature | Description |
|---|---|
| Brand | TOUCAN RC HOBBY |
| Model | C1200 Hydraulic Crawler Crane |
| Scale | 1:14 |
| Material | Metal and Plastic |
| Dimensions | 33.49 x 31.13 x 24.82 inches |
| Weight | 64.5 kg |
| Lifting Capacity | 45 kg |
| Power System | Hydraulic |
| Hydraulic Pump | CUT Model (500 ml/min flow) |
| System Pressure | 4 MPa |
| Hydraulic Cylinders | 8 |
| Control System | Flysky PL18 LITE Radio |
| Motor Type | Brushless Motors |
| Gear System | Planetary Gearboxes |
| Battery Type | Lithium-Ion Polymer |
| Batteries Included | Yes |
| Batteries Required | Yes (1 included) |
| Additional Features | Weather resistant |
| Assembly | Modular design |
| Recommended Age | 18 years and up |
| Manufacturer Part Number | TH26256-AMZUS1-S |
| Warranty | 1 Year |
| Return Policy | 30-Day Return Guarantee |
Build Quality and Structural Engineering
CNC-Machined Frame for Strength and Stability
The TOUCAN RC C1200 crane features a frame constructed using CNC machining and sheet metal fabrication, ensuring:
- High structural integrity
- Accurate alignment of components
- Long-term durability under heavy loads
This design allows the crane to handle demanding lifting tasks without compromising stability.
Realistic Triangular Load-Bearing Structure
The crane replicates the triangular load-bearing design found in real construction cranes. This engineering approach provides:
- Improved weight distribution
- Enhanced lifting stability
- Realistic visual appearance
Hydraulic System and Performance
High-Performance Hydraulic Pump
The crane is equipped with a CUT model hydraulic pump delivering:
- Flow rate: 500 ml/min
- System pressure: 4 MPa
This powerful system ensures smooth and consistent hydraulic performance.
Dual Valve Control for Precision
The dual valve system controls eight hydraulic cylinders, enabling:
- Chassis lifting
- Track detachment
- Boom movement
This level of control allows for precise and coordinated operation.
Real-Time Monitoring with Pressure Gauge
The inclusion of a pressure gauge allows users to monitor the hydraulic system in real time, ensuring safe and efficient operation.
Motor and Gear System
Brushless Motors for Efficiency
The crane uses high-torque brushless motors for key functions, including:
- Winch operation
- Travel movement
- Boom elevation and lowering
These motors provide:
- High efficiency
- Long lifespan
- Reduced maintenance
Planetary Gearboxes for Power Transmission
The integration of planetary gearboxes ensures:
- Smooth power delivery
- High torque output
- Reliable operation under load
Self-Locking Motors for Stability
The cab rotation and upper structure use self-locking motors, which provide:
- Precise positioning
- Stable holding without drift
Lifting Capability and Performance
Impressive Load Capacity
With a lifting capacity of 45 kg, the C1200 crane is capable of handling heavy loads relative to its size.
Balanced Weight Distribution
The crane’s design ensures stability during lifting operations, reducing the risk of tipping or imbalance.
Modular Design and Customization
Fully Modular Construction
The crane can be disassembled into multiple modules, including:
- Counterweight
- Boom sections
- Tracks
- Upper structure
This modular design allows for:
- Easy transportation
- Simplified maintenance
- Custom configuration
Expandable Performance Options
Users can enhance the crane’s capabilities with optional accessories, such as:
- Additional truss sections for extended reach
- Extra counterweights for increased stability
Mobility and Track System
Hydraulic Track Operation
The crane’s tracks are powered hydraulically, ensuring:
- Smooth movement
- Realistic operation
- Strong traction
Track Detachment Feature
The ability to detach tracks hydraulically adds both realism and convenience for maintenance.
Control System and User Experience
Flysky PL18 LITE Radio Control
The Flysky PL18 LITE system provides advanced control features, including:
- Precise multi-function operation
- Responsive input handling
- Customizable settings
This controller is ideal for managing complex crane operations.
Battery and Power System
Lithium-Ion Polymer Battery
The included battery provides reliable power for the crane’s hydraulic and motor systems.
Efficient Energy Management
Despite its complexity, the system is designed to optimize energy usage for extended operation.
Realism and Scale Accuracy
True 1:14 Scale Model
The crane’s scale allows for detailed components while maintaining manageable size.
Authentic Crane Behavior
From lifting operations to track movement, the crane closely mimics real construction equipment.
Ease of Use and Learning Curve
Designed for Advanced Users
This crane is best suited for:
- Experienced RC hobbyists
- Construction equipment enthusiasts
- Collectors
Learning Curve
Due to its complexity, users should be prepared to invest time in learning its controls and maintenance.
Pros and Cons
Advantages
- Powerful hydraulic system
- High lifting capacity
- Durable CNC-machined frame
- Modular and customizable design
- Advanced control system
- Realistic operation and appearance
Disadvantages
- Not suitable for beginners
- Heavy and requires careful handling
- Higher cost compared to simpler models
Comparison with Standard RC Cranes
| Feature | C1200 Hydraulic Crane | Standard RC Crane |
|---|---|---|
| Lifting Capacity | High | Low |
| Control Precision | Advanced | Basic |
| Build Quality | Metal | Plastic |
| Realism | Extremely high | Moderate |
Who Should Buy This Crane?
This model is ideal for:
- Advanced RC enthusiasts
- Construction equipment collectors
- Users seeking realistic lifting operations
- Hobbyists interested in hydraulic systems
Maintenance and Care Tips
To maintain optimal performance:
- Monitor hydraulic pressure regularly
- Inspect moving parts
- Clean tracks and components
- Store in a dry environment
Overall Performance and Value
The TOUCAN RC C1200 hydraulic crawler crane delivers exceptional performance, combining power, precision, and realism. Its advanced engineering and modular design make it a standout choice in the RC construction category.
Conclusion
The TOUCAN RC HOBBY 1/14 Hydraulic Crawler Crane C1200 is a highly capable and realistic machine designed for serious hobbyists. Its hydraulic system, lifting capacity, and modular design set it apart as one of the most advanced RC cranes available.
For those seeking a professional-grade RC crane with true-to-life functionality, this model offers an outstanding experience.
