A premium hydraulic RC excavator built for realism and performance

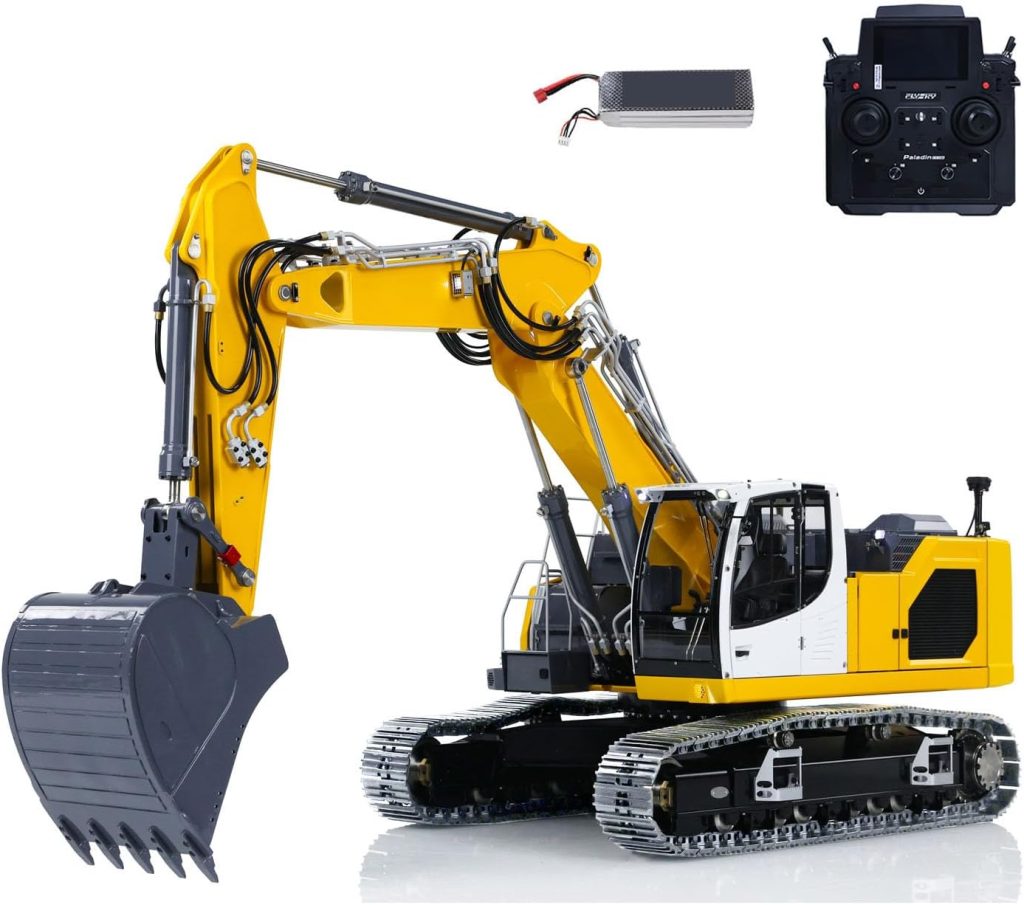

The TOUCAN RC HOBBY LR945 1:14 LESU RC Hydraulic Excavator RTR 3 Arms Remote Control Digger Model is not just another remote control toy—it is a highly detailed, semi-professional-grade construction machine designed for enthusiasts who demand realism, durability, and performance. Built with a heavy emphasis on metal construction and powered by a functional hydraulic system, this model stands out as one of the most advanced RC excavators available in its category.
Whether you are a collector, hobbyist, or someone passionate about construction machinery, this excavator offers an immersive experience that goes far beyond typical RC vehicles. In this comprehensive review, we will break down its design, features, performance, specifications, and overall value so you can determine whether it is the right investment for your needs.
Product Overview and First Impressions
At first glance, the LR945 impresses with its robust build and industrial-grade appearance. The attention to detail is immediately noticeable, from the realistic cabin to the fully articulated digging arm and metal tracks.
Unlike entry-level RC excavators, this model arrives fully assembled and painted, meaning you can start operating it almost immediately after adding the necessary extras like hydraulic oil and a charger.
Key Highlights
- Fully functional hydraulic system
- Heavy-duty metal construction
- Advanced 3-section digging arm
- Professional-grade remote controller
- Realistic lighting and electronic display
Technical Specifications and Product Data Table
Below is a detailed breakdown of the LR945’s specifications based on available product data:
| Feature | Details |
|---|---|
| Manufacturer | LESU |
| Model | LR945 |
| Scale | 1:14 |
| Material | Metal, Plastic |
| Condition | New, Painted, Assembled |
| ID | LS-BA-B0017-MTrack-RTR-Y |
| Track Color | Metallic |
| Cab Height | 226.3 mm |
| Maximum Digging Depth | 454 mm |
| Maximum Digging Radius | 728.9 mm |
| Maximum Digging Height | 858.5 mm |
| Total Track Length | 382.6 mm |
| Track Width | 43 mm |
| Total Width | 268.3 mm |
| Rotation Speed | 10 r/min |
| Travel Speed | 48 r/min |
| Hydraulic Pumps | 1 |
| Hydraulic Pressure (Max) | 4 MPa |
| Hydraulic Pressure (Rated) | 3 MPa |
| Directional Valves | 7 |
| Reduction Ratio (Travel) | 1:139 |
| Reduction Ratio (Rotation) | 1:20 |
What’s Included in the Package
The LR945 comes well-equipped for immediate operation, although a few key components must be purchased separately.
Included
- 1:14 RC Hydraulic Excavator Model
- Motor
- Servo
- ESC (Electronic Speed Controller)
- Hydraulic System
- Light System
- FlySky PL18EV Lite Remote Controller
- Receiver
- Battery
Not Included
- Sound System
- Charger
- Hydraulic Oil
Build Quality and Materials
Heavy Metal Construction for Durability
One of the most impressive aspects of this excavator is its build quality. Approximately 90% of the machine is constructed from metal, giving it exceptional durability and a realistic weight.
The use of aluminum alloy for the arm and CNC-machined components ensures precision and longevity. Additionally, 80% of the hydraulic system is made using copper welding, which enhances reliability and reduces the risk of leaks.
Modular Design Advantage
The modular design allows for easier maintenance and potential upgrades. If you are an advanced hobbyist, this opens the door to customization and long-term usability.
Advanced Hydraulic System Performance
Realistic Operation
Unlike electric-driven toy excavators, the LR945 uses a genuine hydraulic system. This provides smooth, powerful, and realistic movement across all functions, including:
- Arm lifting
- Bucket digging
- Rotation
- Track movement
Improved Reliability with New Relief Valves
The newly designed relief valves significantly improve system reliability. This ensures stable pressure control and prevents damage from overload conditions.
Hydraulic Power Analysis
With a maximum pressure of 4 MPa and a rated pressure of 3 MPa, the excavator delivers strong digging force suitable for:
- Sand
- Gravel
- Loose soil
- Small construction simulations
Three-Section Digging Arm: Precision and Flexibility
The LR945 features a three-section digging arm with a large cylinder body, which enhances both reach and flexibility.
Benefits of the 3-Arm Design
- Greater digging depth
- Improved reach for complex operations
- More realistic movement patterns
- Enhanced control precision
This design allows the excavator to mimic real-world machines with impressive accuracy.
Remote Control System and User Experience
FlySky PL18EV Lite Controller
The included remote controller is a professional-grade system, offering:
- Precise control inputs
- Multiple channel support
- Smooth responsiveness
This controller is far superior to basic RC transmitters, making it ideal for experienced users.
Ease of Use
While beginners can learn to operate the excavator, it is best suited for users aged 14+ with some familiarity with RC equipment due to its complexity.
Lighting System and Realistic Features
Full Machine Lighting
The LR945 includes a complete lighting system that enhances realism, especially in low-light conditions.
Simulated Electronic Display
The cabin features a simulated electronic display, adding another layer of authenticity to the model.
These details make the excavator not just functional but visually impressive.
Performance in Real-World Scenarios
Digging Capability
With a maximum digging depth of 454 mm and height of 858.5 mm, the LR945 performs exceptionally well in scaled environments.
Movement and Stability
- Track width of 43 mm provides stability
- Low center of gravity improves balance
- Smooth rotation at 10 r/min ensures controlled operation
Versatility
This excavator is suitable for:
- Hobby construction sites
- Sandpit operations
- Model displays
- RC competitions
Pros and Cons
Advantages
- Exceptional build quality with metal construction
- Real hydraulic system for realistic performance
- Advanced 3-section arm design
- High-end remote controller included
- Modular and upgrade-friendly design
Disadvantages
- Hydraulic oil not included
- Charger not included
- Higher learning curve for beginners
- Premium price point
Maintenance and Setup Considerations
Initial Setup
Before first use, you will need:
- Hydraulic oil
- Compatible charger
Ongoing Maintenance
- Regularly check hydraulic lines
- Keep moving parts clean
- Inspect metal components for wear
Proper maintenance will significantly extend the lifespan of the excavator.
Who Should Buy the LR945?
This model is ideal for:
RC Enthusiasts
If you are passionate about high-end RC construction equipment, this is a top-tier choice.
Collectors
The realism and build quality make it a valuable addition to any collection.
Advanced Hobbyists
Those who enjoy customization and technical setups will appreciate its modular design.
Comparison with Other RC Excavators
Compared to standard RC excavators, the LR945 stands out due to:
- True hydraulic operation instead of electric actuators
- Higher percentage of metal components
- Professional-grade controller
- Superior realism and performance
While it may cost more, the difference in quality and functionality is significant.
Final Verdict: Is It Worth It?
The TOUCAN RC HOBBY LR945 1:14 LESU RC Hydraulic Excavator is a premium product that delivers exceptional realism, durability, and performance. It is not designed for casual users but rather for those who want a true-to-life excavation experience.
If you are serious about RC construction models, this excavator is absolutely worth considering. Its powerful hydraulic system, robust build, and detailed design make it one of the best options in its class.
