A precision-engineered long-reach RC excavator with advanced hydraulics
The TOUCAN RC HOBBY LESU 1/14 RC Hydraulic Excavator AOUE LR945 CNC Long-Reach Digger RTR is a refined evolution in the world of scale construction models. Designed for enthusiasts who demand realism, durability, and extended reach, this excavator stands apart thanks to its long-reach arm, precision hydraulic system, and heavy metal construction.
This is not a standard RC excavator. It is a highly specialized model built to replicate real-world excavation tasks with impressive accuracy. From its CNC-machined components to its 7-channel hydraulic valve system, every detail is engineered for performance and authenticity.
In this comprehensive review, we will explore the design, features, specifications, real-world performance, and overall value of this advanced long-reach excavator.

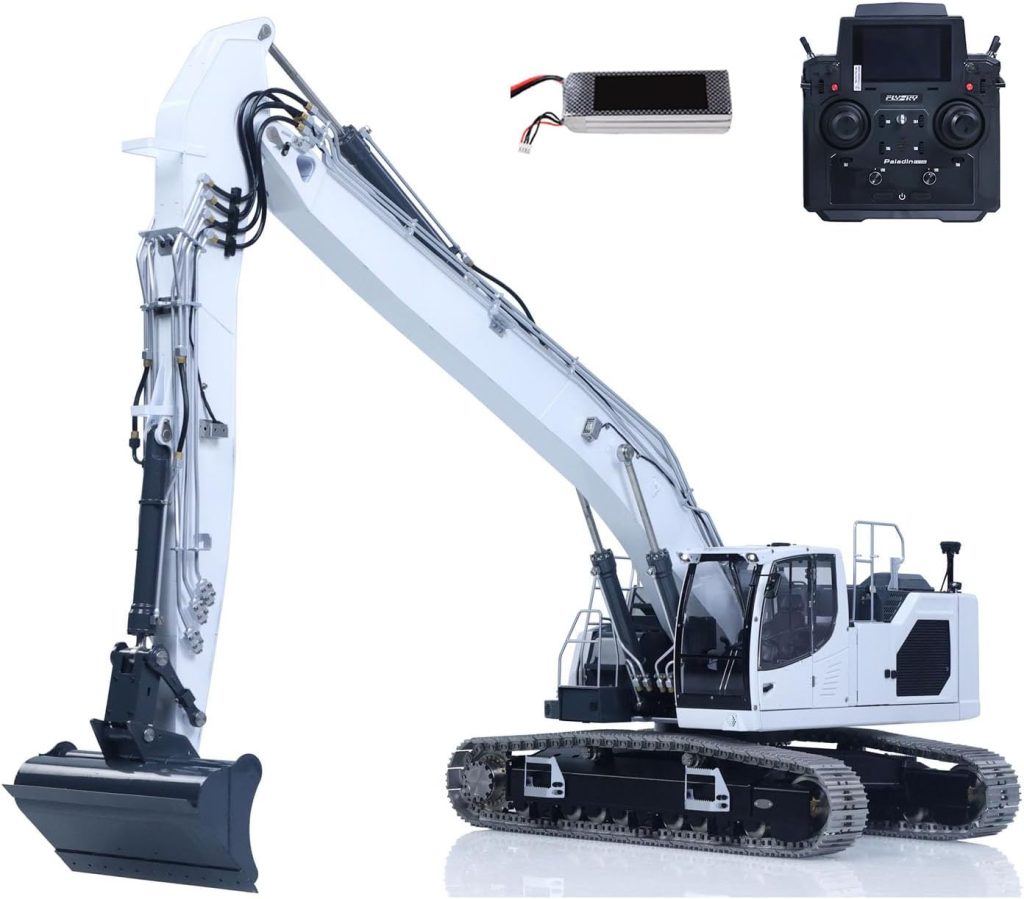

Product Overview and First Impressions
At first glance, the LR945 long-reach excavator immediately conveys a sense of power and sophistication. Its extended arm design gives it a unique profile, while the robust metal body emphasizes its durability.
Weighing nearly 19 kg and measuring over 930 mm in length, this excavator feels substantial and stable. The pre-assembled and painted configuration ensures that users can focus on operation rather than setup.
Key Highlights
- Long-reach arm for extended working range
- Precision hydraulic system with smooth motion
- CNC-machined counterweight and structural components
- 90% metal construction for durability
- Integrated lighting system with multiple LED units
- Professional FlySky PL18EV Lite control system included
Technical Specifications and Product Data Table
Below is a detailed breakdown of the LR945 long-reach excavator specifications:
| Feature | Details |
|---|---|
| Manufacturer | LESU |
| Model | LR945 AOUE Long-Reach |
| Scale | 1:14 |
| Material | Metal, Plastic |
| Net Weight | 18.9 kg |
| Condition | New, Painted, Assembled |
| ID | LS-BA-B0034-MTrack-RTR-W |
| Product Dimensions | 932 x 268 x 228 mm |
| Wheelbase | 315 mm |
| Track Length | 383 mm |
| Track Width | 43 mm |
| Track Gauge | 206 mm |
| Cab Height | 228 mm |
| Platform Clearance | 88 mm |
| X-Frame Clearance | 38 mm |
| Maximum Digging Depth | 662 mm |
| Maximum Digging Height | 927 mm |
| Maximum Digging Radius | 1025 mm |
| Ground Digging Radius | 1014 mm |
| Minimum Swing Radius | 262 mm |
| Swing Speed | 12 r/min |
| Swing Motor Speed | 2500 r/min |
| Travel Speed | 25 r/min |
| Travel Motor Speed | 13200 r/min |
| Hydraulic Pumps | 1 |
| Directional Valve Ports | 7 |
| Maximum Hydraulic Pressure | 4 MPa |
| Rated Hydraulic Pressure | 3 MPa |
| Swing Reduction Ratio | 1:208 |
| Travel Reduction Ratio | 1:520 |
What’s Included in the Package
This excavator is delivered ready to operate, with essential components already installed.
Included
- 1/14 RC Hydraulic Excavator Model
- Motor
- Servo
- ESC
- Hydraulic System
- Light System
- FlySky PL18EV Lite Remote Controller and Receiver
- Battery
Not Included
- Sound System
- Charger
- Hydraulic Oil
Build Quality and Materials
High Metal Content Construction
The LR945 features approximately 90% metal construction, ensuring strength and durability. The use of stainless steel and aluminum alloy enhances both performance and appearance.
CNC-Machined Components
The counterweight and key structural parts are processed using CNC machining. This results in:
- Higher precision
- Improved fit and finish
- Increased realism
Copper-Welded Hydraulic Circuit
With 80% copper welding in the oil circuit system, the excavator offers improved reliability and reduced risk of leakage.
Long-Reach Arm Design: Extending Capability
Why Long-Reach Matters
The defining feature of this model is its long-reach arm. Compared to standard excavators, it provides a significantly wider working range.
Performance Advantages
- Maximum digging radius of 1025 mm
- Enhanced reach for large-scale tasks
- Greater flexibility in operation
Large Cylinder Design
The oversized hydraulic cylinders improve lifting power and control, ensuring smooth and stable movement.
Hydraulic System Performance
7-Channel Directional Valve System
The excavator is equipped with a 7-channel valve system, allowing precise control of multiple functions simultaneously.
Smooth and Coordinated Movements
The hydraulic system delivers:
- Linear motion
- Consistent power output
- Minimal lag during operation
Expansion Capability
The boom includes a reserved 3-way oil circuit, enabling future upgrades or additional attachments.
Remote Control and Operation Experience
FlySky PL18EV Lite Controller
This professional-grade controller provides:
- High precision input
- Stable signal transmission
- Advanced configuration options
User Experience
Operating the LR945 requires some familiarity with RC systems, but once mastered, it offers an incredibly satisfying experience.
Lighting and Realistic Features
Advanced LED System
The excavator includes:
- 9 LED lights
- 2 GPS simulation lights
- Dedicated light controller
Openable Doors for Accessibility
Seven openable doors allow easy access to internal components, simplifying maintenance and enhancing realism.
Performance in Practical Applications
Digging Capability
With a maximum digging depth of 662 mm, the LR945 is capable of handling:
- Sand
- Soil
- Light gravel
Stability and Balance
Despite its long arm, the excavator maintains excellent stability thanks to:
- Balanced weight distribution
- Strong metal chassis
- Wide track base
Precision Control
The hydraulic system ensures accurate positioning, making it ideal for detailed tasks.
Maintenance and Setup Considerations
Initial Setup Requirements
Before use, you will need:
- Hydraulic oil
- Charger
Routine Maintenance
- Check hydraulic connections regularly
- Clean tracks and moving parts
- Monitor oil levels through usage
Proper care ensures long-term reliability.
Pros and Cons
Advantages
- Long-reach arm for extended working range
- High-quality metal construction
- Smooth hydraulic performance
- CNC-machined components for precision
- Advanced lighting and realistic details
Disadvantages
- Requires hydraulic oil and charger
- Higher complexity for beginners
- Premium pricing
Who Should Buy This Excavator?
Experienced RC Hobbyists
Perfect for users who want advanced features and realistic operation.
Collectors
Its size and detail make it a standout display model.
Construction Simulation Enthusiasts
Ideal for recreating real-world excavation scenarios.
Comparison with Standard RC Excavators
Compared to conventional models, the LR945 long-reach version offers:
- Extended reach capabilities
- More advanced hydraulic control
- Higher build quality
- Greater realism
This makes it a premium option in the RC excavator category.
Final Verdict: A Specialized Long-Reach Performer
The TOUCAN RC LR945 Long-Reach Hydraulic Excavator is a highly capable and specialized machine designed for serious enthusiasts. Its extended arm, precision hydraulics, and durable construction make it one of the most impressive models in its class.
While it may not be ideal for beginners, those who invest in it will enjoy a realistic and rewarding RC experience.
