A precision-built metal excavator engineered for powerful digging and realism
The modern era of radio-controlled construction machinery has elevated expectations far beyond simple toy-grade models. Today’s advanced RC excavators are engineered to replicate real-world performance with remarkable accuracy, combining durable materials, hydraulic systems, and intelligent control platforms. The TOUCAN RC HOBBY 1/14 Metal LESU LR945 RC Hydraulic Excavator is a prime example of this evolution.
Designed for enthusiasts who value realism, durability, and precision, the LR945 delivers a powerful hydraulic system, high metal composition, and a refined modular design. With CNC-machined components, an advanced oil circuit, and a professional-grade controller, this excavator stands out as a serious piece of engineering equipment in miniature form.
This comprehensive review explores the LR945 in depth, covering its design, specifications, performance, and real-world capabilities.
TOUCAN RC LESU LR945 Excavator Overview
The LESU LR945 is a 1/14 scale hydraulic excavator designed for high-performance digging and construction simulation. It features a robust metal structure, a large-cylinder hydraulic arm, and a sophisticated control system powered by the FlySky PL18EV Lite.
With approximately 90% metal construction and an oil circuit composed largely of copper, the LR945 is built to handle demanding tasks while maintaining long-term reliability.
Key Features of the LESU LR945 Hydraulic Excavator
Large Cylinder Hydraulic Arm for Strong Digging Power
The excavator’s arm is equipped with a large cylinder body design, providing:
- Increased digging force
- Smooth and controlled movement
- Improved efficiency in excavation tasks
High Metal Composition for Durability
The machine is constructed with about 90% metal, ensuring:
- Structural strength
- Resistance to wear
- Realistic weight distribution
Advanced Oil Circuit System
The oil circuit is approximately 80% welded with copper, enhancing:
- Hydraulic efficiency
- Leak resistance
- Long-term durability
Modular Design for Easy Maintenance
The LR945 features a modular architecture with multiple accessible components, allowing:
- Easy disassembly
- Simplified maintenance
- Flexible upgrades
Integrated Lighting and Electronic Display
The excavator includes:
- Realistic lighting system
- Electronic display features
- One-button circuit control for convenience
Technical Specifications Table
Below is a detailed specification table based on manufacturer and marketplace data:
| Feature | Specification |
|---|---|
| Product Name | TOUCAN RC LESU LR945 1/14 Hydraulic Excavator |
| Manufacturer | LESU |
| Model ID | LS-BA-B0016-UP2-RTR-PAINTING-BK |
| Scale | 1/14 |
| Condition | New, assembled and painted |
| Material | Metal, Plastic |
| Dimensions | 795 × 268 × 257 mm |
| Weight | 18.2 kg |
| Wheelbase | 215 mm |
| Hydraulic Valve Channels | 7 |
| Hydraulic Pressure (Max) | 4 MPa |
| Hydraulic Pressure (Rated) | 3 MPa |
| Slewing Speed | 10 r/min |
| Slewing Reduction Ratio | 1:20 |
| Track Length | 382.9 mm |
| Track Width | 43 mm |
| Ground Clearance | 87.8 mm |
| Max Digging Height | 758.6 mm |
| Max Digging Depth | 491 mm |
| Max Digging Radius | 767.7 mm |
| Max Dumping Height | 523.9 mm |
| Minimum Swing Radius | 251.3 mm |
| Travel Motor Speed | 1400 r/min |
| Travel Reduction Ratio | 1:370 |
| Drive Wheel Speed | 42 r/min |
Design and Build Quality
Precision CNC-Machined Components
The LR945 features aluminum alloy components that are CNC-machined for high precision. This ensures:
- Tight tolerances
- Smooth operation
- Long-lasting durability
Robust and Balanced Structure
Weighing approximately 18.2 kg, the excavator offers excellent stability during operation. The balanced chassis design minimizes tipping and enhances control.
Realistic Industrial Appearance
The model’s design closely mirrors real excavators, with detailed components and a professional finish that enhances authenticity.
Hydraulic System Performance
High-Efficiency Hydraulic Operation
The hydraulic system delivers smooth and responsive control across multiple functions, including:
- Arm lifting
- Bucket movement
- Rotation
- Extension
Powerful Pressure Output
With a maximum pressure of 4 MPa, the system provides strong digging capability and reliable performance under load.
7-Channel Control System
The 7-channel valve system allows simultaneous operation of multiple hydraulic functions, improving efficiency and realism.
Digging Capability and Real-World Performance
Impressive Excavation Range
The LR945 offers:
- Maximum digging depth of 491 mm
- Maximum reach of 767.7 mm
- Dumping height of over 523 mm
These specifications make it suitable for realistic excavation tasks in sand, soil, and gravel.
Stable and Controlled Operation
The combination of weight, track design, and hydraulic precision ensures consistent performance even in demanding conditions.
Mobility and Track System
Tracked Design for Superior Grip
The excavator’s track system provides:
- Excellent traction on uneven surfaces
- Smooth movement
- Reduced ground pressure
Efficient Travel System
The travel motor and reduction ratio deliver controlled movement and sufficient torque for climbing and maneuvering.
Lighting and Electronic Features
Integrated Lighting System
The lighting system enhances realism and visibility, especially during low-light operation.
Electronic Display and Controls
The one-button circuit control system simplifies operation, allowing users to manage functions efficiently.
Control System and User Experience
FlySky PL18EV Lite Controller
The included controller offers:
- Precise multi-channel control
- Smooth responsiveness
- Customizable settings
User Experience
While powerful, the excavator requires some practice to master, particularly when coordinating multiple hydraulic functions.

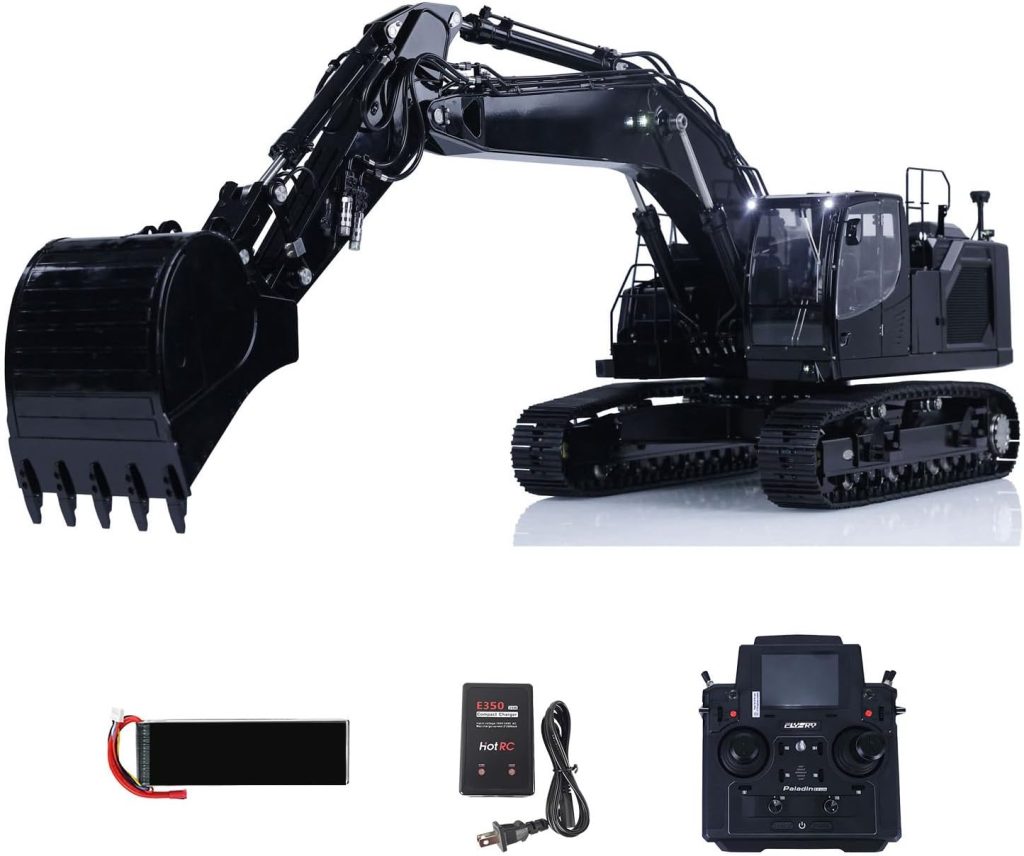

What’s Included in the Package
Included Components
- 1/14 hydraulic excavator model
- Motor
- Servo
- ESC
- Hydraulic system
- Light system
- Quick connector
- Quick release coupler
- FlySky PL18EV Lite controller and receiver
- Battery
- Charger
Not Included
- Sound system
- Hydraulic oil
Advantages of the LESU LR945 Excavator
High Build Quality
The metal construction ensures durability and reliability.
Powerful Hydraulic System
The large cylinder design delivers strong and precise digging.
Advanced Control System
The FlySky controller provides accurate and responsive operation.
Modular Design
Easy maintenance and upgrade potential.
Limitations to Consider
Hydraulic Oil Required
Users must add oil before operation.
No Sound System Included
Unlike some models, sound must be added separately.
Advanced Operation
Not ideal for beginners.
Who Should Buy This Excavator?
This model is ideal for:
- Advanced RC enthusiasts
- Construction simulation hobbyists
- Collectors of high-end RC equipment
- Users seeking realistic hydraulic performance
Maintenance and Care Tips
To ensure long-term performance:
- Regularly check hydraulic oil levels
- Clean tracks and moving parts
- Inspect connections and components
- Store in a dry environment
Real-World Applications
Construction Simulation
The LR945 excels in:
- Digging
- Material handling
- Small-scale construction tasks
Display and Collection
Its detailed design also makes it suitable for display as a collector’s item.
Final Verdict
The TOUCAN RC LESU LR945 1/14 Hydraulic Excavator is a powerful and refined RC model that delivers exceptional realism and performance. With its durable construction, advanced hydraulic system, and professional control platform, it stands out as a top-tier option in the RC construction category.
While it requires some experience and additional setup, the results are highly rewarding. For enthusiasts seeking a reliable and realistic excavator, the LR945 is a strong and compelling choice.
